Marzocchi Monster T

The Marzocchi Monster T

The Monster T is Marzocchi’s dual-crown fork with 40 mm stanchions. The 2001 data sheet calls it a “double plate fork specifically designed for Downhill use”, damped by hydraulic cartridges and sprung by coil springs, with spring preload and rebound adjusted from the top of the legs. Parts lists named “Monster T” exist for 1999 to 2006.

Marzocchi used several names in this family, and they are not interchangeable. The parts lists name Monster T, Monster T2, Monster (2001, 2002, 2006), Monster200 / Monster300 (2004) and Super Monster 300 (2004). The 2003 owner’s manual names the 2003 range Monster T2, Monster Triple and Super Monster. The Super Monster has its own page.

Models by year

Year	Model (parts list name)	Travel	Stanchion	Source
1999	Monster T	–	40 mm	1999 parts list, exploded drawing
2000	Monster T	175 mm	40 mm	2000 parts list, 2000 technical sheet “Monster T 175”
2001	Monster T (parts list: Monster)	175 mm	40 mm	2001 parts list, 2001 data sheet
2002	Monster T (parts list: Monster)	–	40 mm	2002 parts lists, exploded drawing
2003	Monster T 200, Monster T 300	200 / 300 mm	40 mm	2003 parts lists, exploded drawing
2003	Monster T2 175, Monster T2 200	175 / 200 mm	40 mm	2003 parts lists, exploded drawings
2004	Monster T 200, Monster200, Monster300	200 / 300 mm	40 mm	2004 parts lists
2005	Monster T	–	40 mm	2005 parts list, exploded drawing
2006	Monster T, Monster	200 mm (Monster)	40 mm	2006 parts lists, 2006 Monster technical instructions

Damping and axle, as Marzocchi describes them

• 2001 Monster T: a rebound damping cartridge inside each leg, coil springs, external top adjusters for preload and rebound, motorcycle-style drop-outs; a 20 mm wheel shaft was available on request.
• 2003 range (owner’s manual): the Monster T2 has Ø 20 mm non-adjustable SSV pumping elements; the Monster Triple and the Super Monster have Ø 26 mm cartridges with external rebound and compression adjustment. All run in an open oil bath, with a 20 mm aluminium axle.
• 2006 Monster: HSCV cartridges with external rebound and compression adjustment and compression adjustment at the end of travel, 200 mm travel, 20 mm axle.

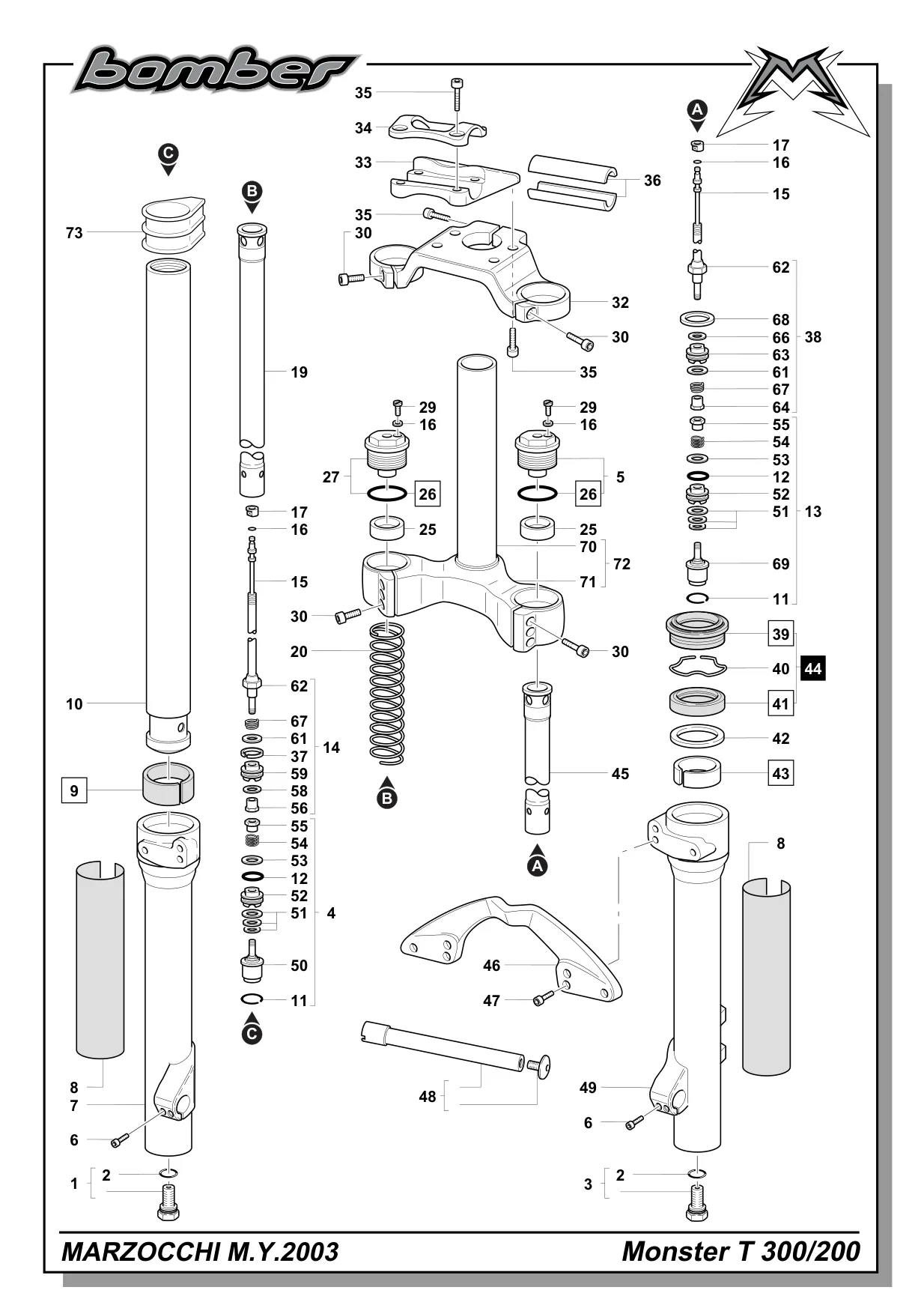

Exploded drawing and parts list

The parts list on this page belongs to the 2003 Monster T 200 (2003 parts list). Each year and travel has its own drawing and parts list in the factory documents below and on Forks documentation. A 2006 factory drawing that compares all Monster models is also in the archive.

Service notes

• The 2001 Monster T data sheet gives 380 cc of oil per leg, type EBH 16, SAE 7.5.
• The 2003 owner’s manual and the 2006 Monster technical instructions specify SAE 7.5 oil; the 2006 manual gives the quantity in its oil level table.

Which seal kit fits

Every Monster T, Monster T2 and Monster parts list from 1999 to 2006 names oil seal 528053 and dust seal 533281 (from 2002 also kit 850691). This is our Seal Kit 40 mm Monster.

The Monster Race T of 1999 and 2000 is a different fork: its parts lists name 30 mm seals. Please contact us before ordering seals for a Monster Race T.
