Libs · Knobs
Marzocchi
Knobs.
Marzocchi knobs and dials by year — rebound, compression, lock-out, preload and air knobs with numbers, colours and the forks that use them. Merged from our old overview, the shop, the Marzocchi parts lists and the document archive. Hover a picture to enlarge it, click to open it.
🔩 101 Article numbers
🛒 39 in the shop
📄 35 with documents
Also known as: pomello di regolazione · molette de réglage · bouton de réglage · adjustment knob · pomo de ajuste · adjuster knob · einstellknopf · einstellrad · regolazione · versteller · drehknopf · regulador · registro · molette · pomelli · pomello · regler · dials · knobs · pomel · dial · knob · pomo
| Picture | Art. No. | Description | Years | Colour | Type | Forks | Documents | Shop | Sources |
|---|---|---|---|---|---|---|---|---|---|

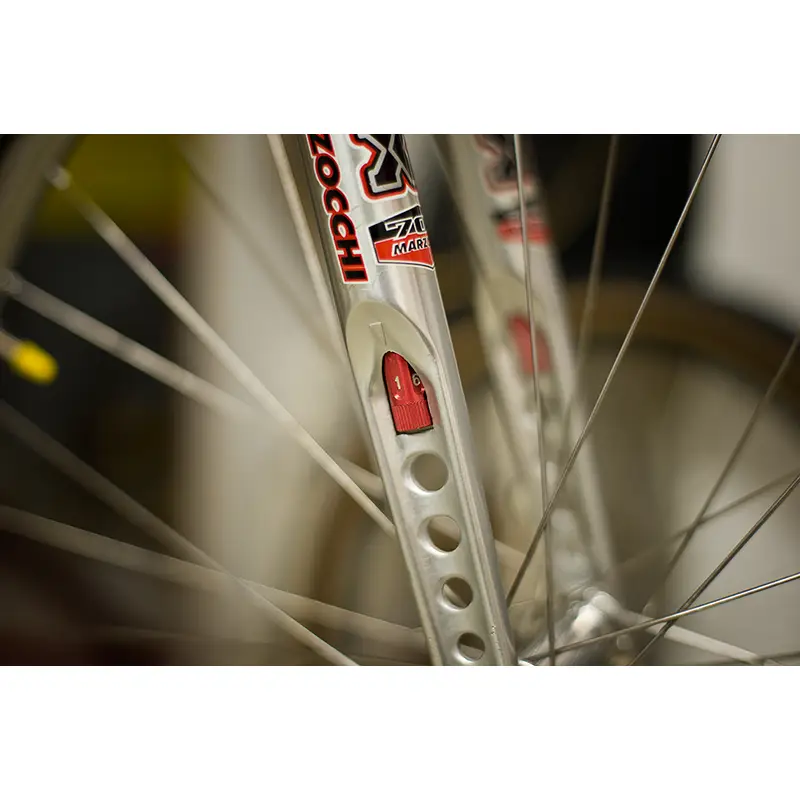

 | — | Knob XC700 | 1995 | Red | Overview | ||||

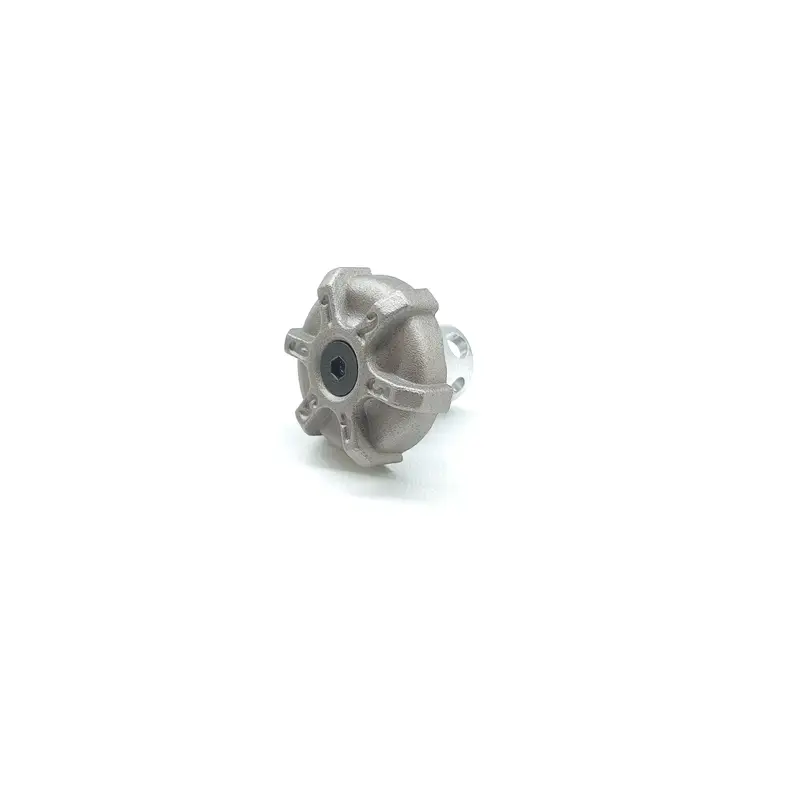

 | 701503 | DH3 XCR Damping Adjuster A replaces 16.5325 | 1995–1996 | Silver |
Fits: dh3 · XCR (1995–1996) DH3 1995–1996 XCR 1995–1996 | 📋 1995 DH 3 📋 1996 DH 3 | OverviewCatalogueParts listsDocuments | ||

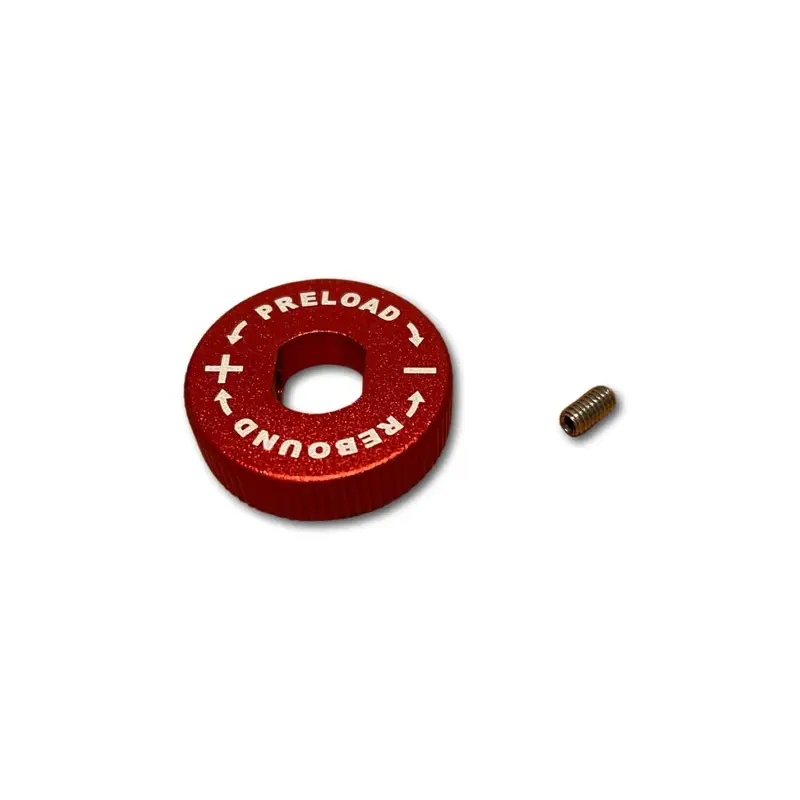

 | 549043 549043KR, 850239 · 549043KR | Knob Z1 Z2 etc | 1997 | Red |
Fits: Z1 · Z2 (1997–2005) Bomber Z1 1997–1998 Bomber Z2 1997–1998 Z1 Bomber 1997 Z2 1997 Bomber Z1 BAM 1999 Bomber Z2 BAM 1999 Z1 BAM 1999 Z1 Bomber BAM 1999 Z1 Drop-Off 1999–2003 Z1 Dual 1999 Z1 QR 1999–2000 Z2 Alloy 1999 Z2 Atom 1999–2000 Z2 Atom Bomber 1999 Z2 BAM 1999 Z2 SuperFly 1999 Z2 X-Fly 1999–2000 Z1 CR 2000 Z1 MCR 2000–2001 Z1 QR20 2000 Z1 QR20 130 2000 Z1 X-Fly 2000 Z2 Atom 80 2000 Z2 QR20 2000 Z2 X-Fly QR20 80 2000 Z2 Atom Race 2001–2002 Z2 Atom Sport 2001 Z2 Atom Sport Air 2001 Z1 Free Ride 2002–2004 Z1 Wedge 2002–2004 Z1-Dropoff-130 2002 Z1-Freeride-130 2002 Z1-Wedge130 2002 Z2-Atom Race-80 2002 Z1 Z1 Free Ride SL 2003 Z1 Z1 Free Ride SL QR20 2003–2004 Z1 Drop Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride SL 2003–2005 Z1 Z1 Drop Off I QR20 2004 Z1 Z1 Free Ride 2004 Z1 Z150 Drop Off QR20 2004 Z1 Z150 Free Ride QR20 2004 Z1 Z150 FreeRide SL QR20 2004 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 Z150 FR SL 2004 Z1 FR 1 2005 Z1 FR 2 2005 Z1 FR SL 130-150 2005 Z1 FR SL 130-150 TA 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 Z1 FreeRide 2 2005 | OverviewShopCatalogueParts lists | |||

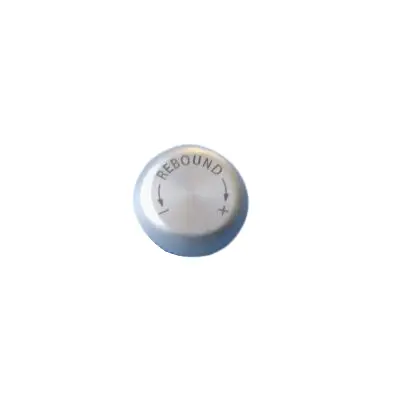

 | — | Mr. T - Super T Rebound Knob | 1997–1999 | Silver | Rebound | Mr. T 1997 Super T 1997–1999 | OverviewShopParts lists | ||

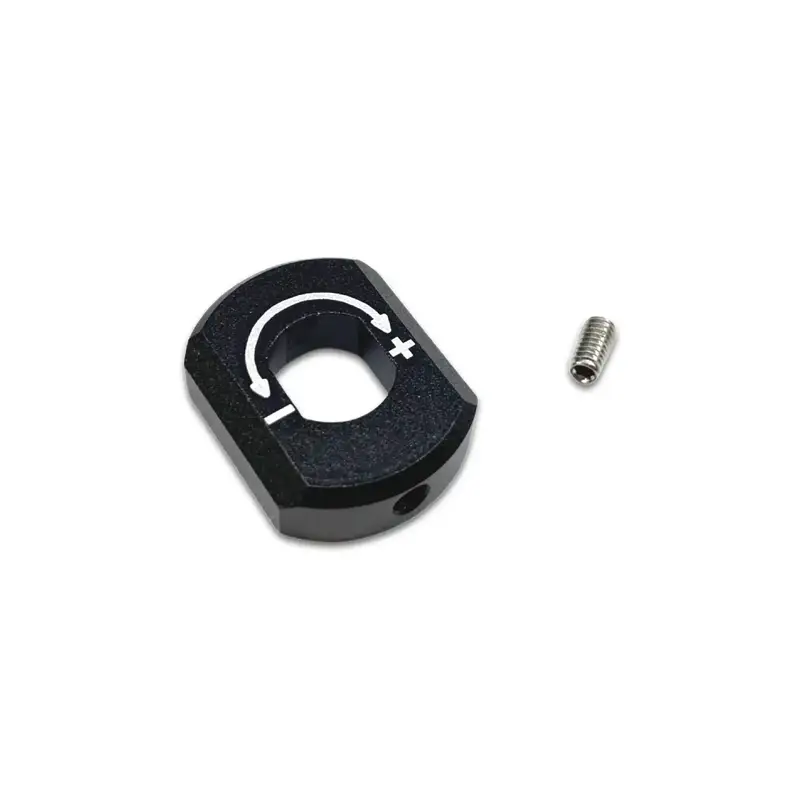

 | 549062LA 549062KM · 549062KR | Bias regulator for Bomber Z1 Z2 | 2000–2006 | Black · Red | Preload |
Fits: DJ · Junior T · Marathon · Mister T · Shiver · Shiver Dc · Shiver Sc · Super T · Z1 · Z2 · Shiver Dh (1997–2006) Z1 Bomber 1997 Junior T 1999–2006 Z1 BAM 1999 Z1 Bomber BAM 1999 Z1 Drop-Off 1999–2003 Z1 Dual 1999 Z1 QR 1999–2000 Z2 Alloy 1999 Z2 Atom 1999–2000 Z2 BAM 1999 Z2 X-Fly 1999–2000 Z1 CR 2000 Z1 MCR 2000–2001 Z1 X-Fly 2000 Monster T 2001–2002 Shiver DC 2001–2005 Shiver WC DH 2001 Super T 2001–2004 Z2 Atom Race 2001–2002 Z2 Atom Sport 2001 Dirt Jumper 1 2002 Dirt Jumper 1.5 2002 Dj1-110 2002 Dj2-130 2002 Marathon S 2002 Marathon-100 2002 Marathon-80 2002 Monster 2002 Shiver 2002 Shiver SC 2002–2005 Super-T 2002 Z1 Free Ride 2002–2004 Z1 Wedge 2002–2004 Z1-Dropoff-130 2002 Z1-Freeride-130 2002 Z1-Wedge130 2002 Z2-Atom Race-80 2002 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Marathon S Coil 2003–2004 Marathon SL 2003–2006 Z1 Drop Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride SL 2003–2005 Dj1 110 2004 Dj2 2004 Dj3 2004 Street DJ 2004–2005 Street Dj 2004–2005 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 Z150 FR SL 2004 Marathon Race 2005–2006 Marathon XC 2005–2006 Marathon XC 100-120 2005 Shiver DC 190 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 DJ 3 Std 2006 Junior T Ext.Reb. 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 RC2 + 2007 Marathon 2008–2012 Marathon LR 2015 | 📋 2000 Z1- MCR 📋 2000 Z2- ATOM 80 📋 2001 MONSTER 📋 2001 SHIVER 📋 2001 SUPER-T 📋 2001 Z1-MCR 📋 2001 Z1-MCRQR 📋 2001 Z2-AT-RACE 📋 2001 Z2-AT.SPORT-SPRING 📋 2002 DIRTJUMPER 1,5-110 📋 2002 DIRTJUMPER 1,5-130 📋 2002 DIRTJUMPER 1-110
All 51 documents →
| OverviewShopCatalogueParts listsDocuments | |

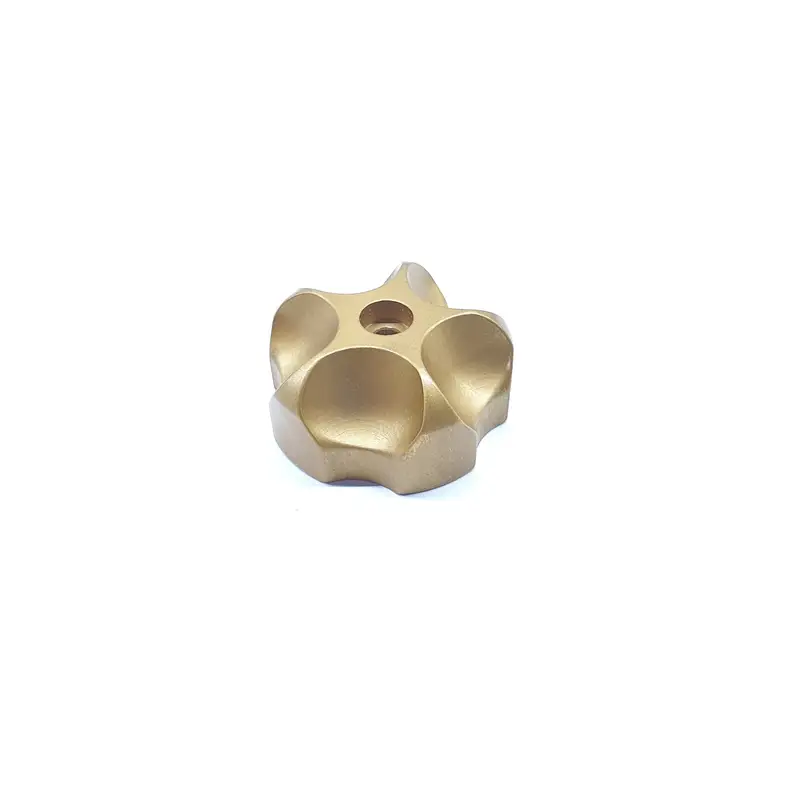

 | 549074RX | Knob F-R Rebound Alu | 2004 | Gold | Rebound |
Fits: Marathon · Z1 (2004) Marathon S Coil 2004 Z1 50 Free Ride 2004 Z1 FR 2004 Z1 Free Ride 2004 Z150 FR 2004 | 📋 2004 MARATHONS COIL 85 📋 2004 MARATHON S COIL 105 📋 2004 MARATHON S COIL 120 | OverviewCatalogueParts listsDocuments | |

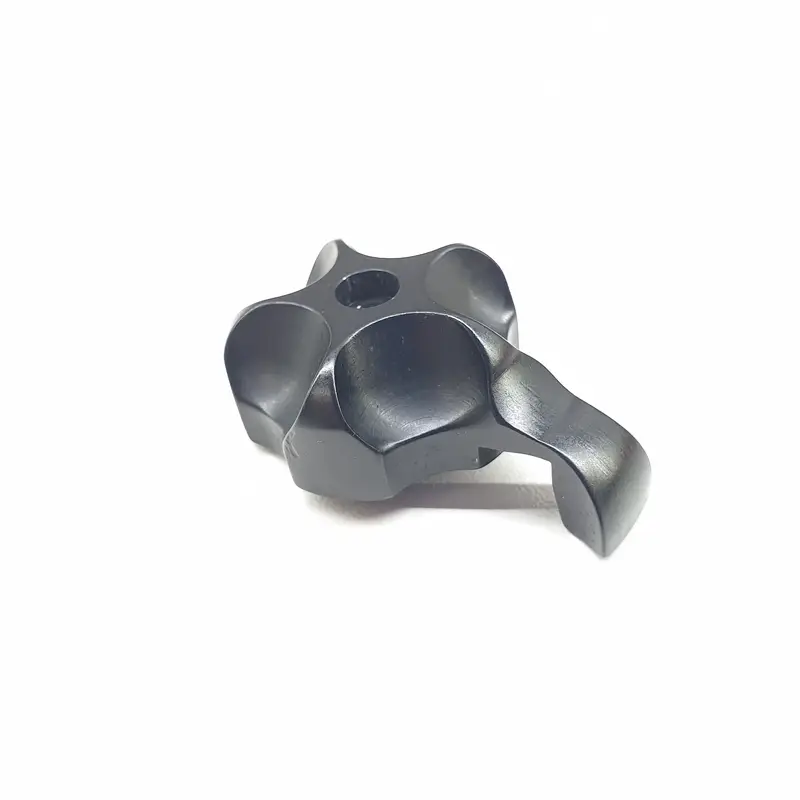

 | 549076AD | ECC Knob Alu, sw A | 2004 | Black |
Fits: Z1 (2004) Z1 50 Free Ride SL 2004 Z1 FR SL 2004 Z1 Free Ride SL 2004 | 📋 2004 Z150 FREERIDE SL QR 📋 2004 Z1 FREERIDE SL 📋 2004 Z1 FREERIDE SL QR | OverviewShopParts listsDocuments | ||

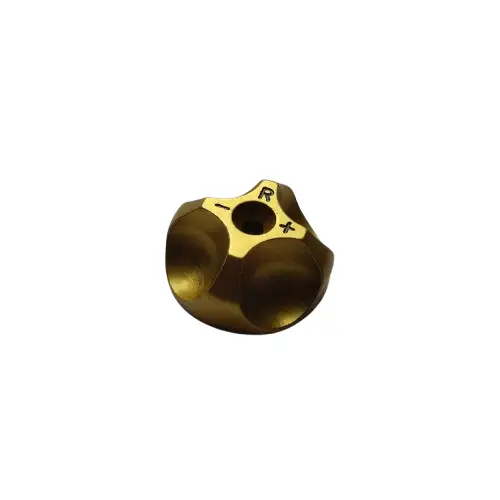

 | 549069 549069RX>A · 549069AQ · 549069RXA | REG. FA 888 Rebound | 2004–2005 | Gold | Rebound · Compression | 888 2004 888 R 2004–2005 888 RR 2004 888 RC 2005 | 📋 2004 888 RR 📋 2004 888 R 170 📋 2004 888 R 200 | OverviewShopCatalogueParts listsDocuments | |

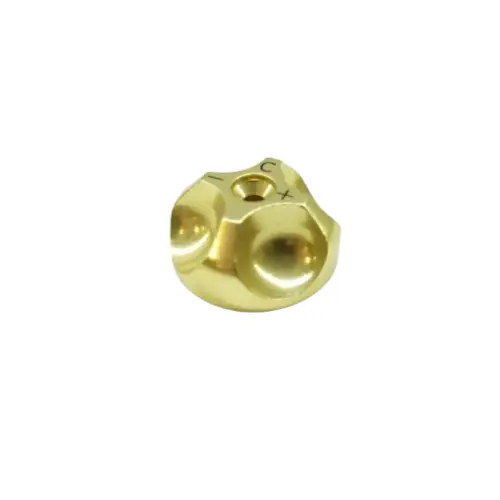

 | 549070RX 549070 · 549070RX>A · 549070AQ · 549070RXA | REG.FA 888 R Compression | 2004–2005 | Gold | Compression | 888 2004 888 R 2004 888 RC 2005 | 📋 2004 888 R 170 📋 2004 888 R 200 📄 2005 888 RC - Technical Instructions - 35mm - 150 & 170 | OverviewShopCatalogueParts listsDocuments | |

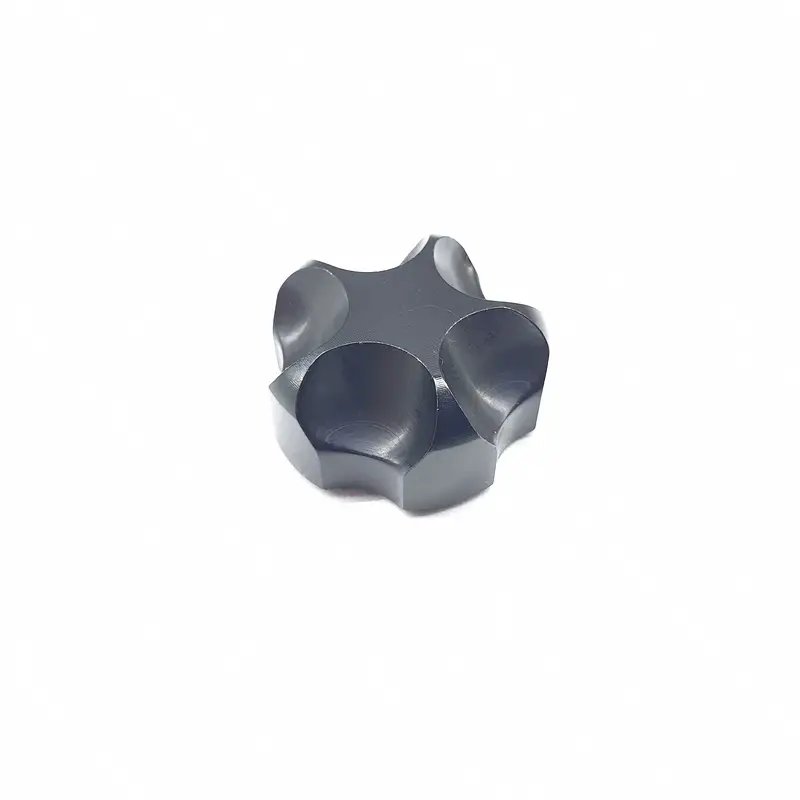

 | 549073AD | Air Alu Cap SL re, sw Neg | 2004–2006 | Black | Air |
Fits: All Mountain · Marathon · Z1 (2004–2006) Marathon SL 2004–2005 Z1 50 Free Ride SL 2004 Z1 FR SL 2004 Z1 Free Ride SL 2004–2005 AM SL 2005 AM SL - 130 2005 Marathon Race 2005 Z1 SL 2006 | 📋 2004 MARATHON SL 105 📋 2004 MARATHON SL 120 📋 2004 MARATHON SL 29 📋 2004 MARATHON SL 85 📋 2004 Z150 FREERIDE SL QR 📋 2004 Z1 FREERIDE SL 📋 2004 Z1 FREERIDE SL QR 📋 2005 ALLMOUNTAIN SL - 110 130 📋 2005 ALLMOUNTAIN SL - 130 150 📄 2005 All Mountain SL AM - Technical Instructions 32mm - 130-150 📋 2005 MARATHON RACE 📋 2005 MARATHON SL
All 18 documents →
| OverviewCatalogueParts listsDocuments | |

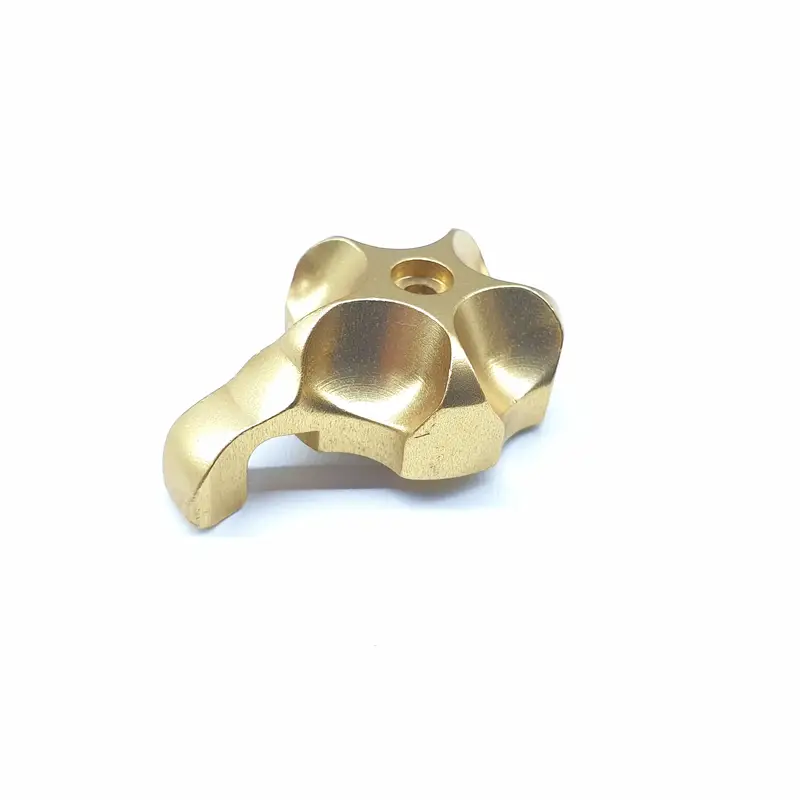

 | 549077AQ 549077AD · 549077ADA · 549077RX | Knob ETA-ECC | 2004–2007 | Gold |
Fits: All Mountain · TXC · Z1 (2005) MX Comp 2004–2005 MX Comp+ 2004–2005 MX Pro 2004–2005 MX Pro+ 2004–2005 Marathon S Coil 2004 Marathon SL 2004 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 FR 2004 Z1 Free Ride 2004 Z150 FR 2004 AM 1 2005 AM 1 - 130 2005 AM 2 2005 AM 2 Ssvf+ 2005 AM 3 2005 Marathon XC 2005 Marathon XC 100-120 2005 Z1 FR 1 2005 Z1 Free Ride 1 2005 Z1 Free Ride 3 2005 Z1 Light+ 2006 Z1 Sport+ 2006 Z1 RC2 + 2007 | 📋 2004 MARATHONS COIL 85 📋 2004 MARATHON SL 105 📋 2004 MARATHON SL 120 📋 2004 MARATHON SL 29 📋 2004 MARATHON SL 85 📋 2004 MARATHON S COIL 105 📋 2004 MARATHON S COIL 120 📋 2004 MX COMP+ETA 105 📋 2004 MX COMP+ETA 120 📋 2004 MX COMP+ETA 85 📋 2004 MX PRO+ETA 105 📋 2004 MX PRO+ETA 120
All 57 documents →
| OverviewShopCatalogueParts listsDocuments | ||

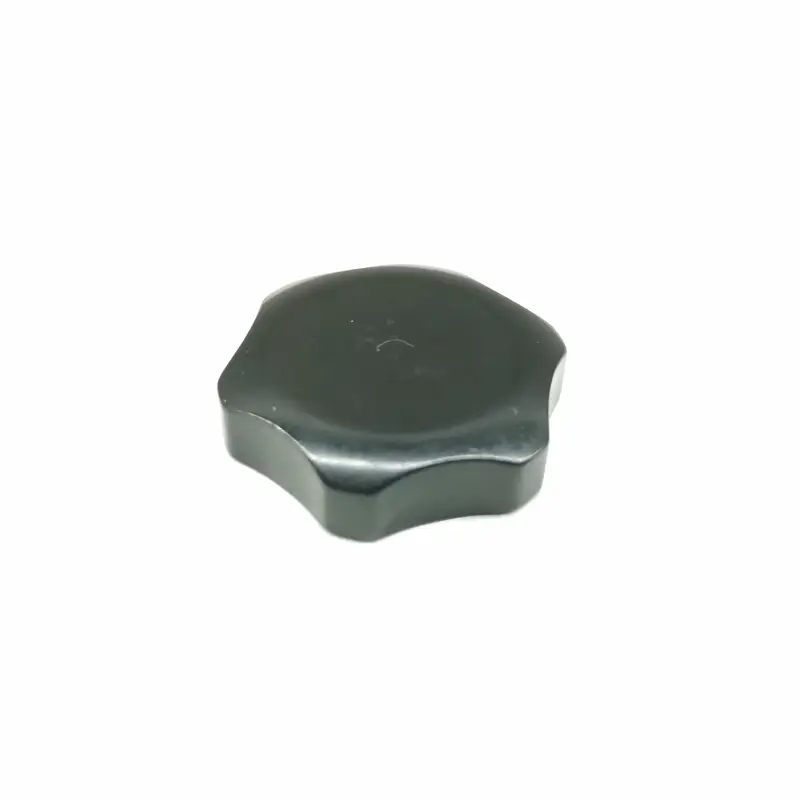

 | 549072AD 549072 · 549072KR · 549072AQ · 549072RX | DJ POMELLO ARIA MTB | 2004–2008 | Black · Gold · Red | Air |
Fits: DJ · 4X · All Mountain · AM · Dirt Jam · Drop Off · Gran Fondo · MX · Super T · TXC · XC · Xc500 · Xc600 · Z1 · Marathon (2004–2008) Z1 Bomber 1997 Z1 Bomber BAM 1999 Junior T 2000–2006 Z1 CR 2000 Z1 Drop-Off 2000–2003 Z1 MCR 2000 Z1 QR 2000 Z1 X-Fly 2000 Z2 Atom 2000 Z2 X-Fly 2000 Z3 2000 Z3 BAM 2000 Z3 FlyLight 2000 Z3 QR 2000 Z3.5 2000 Z4 FlyLight 2000 Dj1-110 2002 Dj2-130 2002 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 MX Comp 2003–2006 MX Comp Air 2003–2005 MX Comp Coil 2003–2005 MX Pro 2003–2006 MX Pro Air 2003–2005 MX Pro Coil 2003–2005 Marathon S Coil 2003–2004 Marathon SL 2003–2006 Shiver SC 2003–2005 Super T 2003–2004 Z1 Free Ride 2003–2004 Z1 Free Ride SL 2003–2004 Dirt Jumper 1 2004–2014 Dirt Jumper 2 2004–2009 Dirt Jumper 3 2004–2014 Dj1 110 2004 Dj2 2004 Dj3 2004 MX Comp+ 2004–2006 MX Pro+ 2004–2006 Street DJ 2004–2005 Street Dj 2004–2005 Z1 50 Drop-Off 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 Wedge 2004 Z150 FR 2004 Z150 FR SL 2004 66 R 2005 66 VF 2005 AM 1 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 AM 3 2005–2007 AM 3- 2005 AM SL 2005–2006 D J 1 2005 D J 2 2005 D J 3- 2005 Marathon Race 2005–2006 Marathon XC 2005–2006 Z1 FR 2 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 AM 1+ 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 DJ 3 Std 2006 Dirt Jam Pro 2006 Gran Fondo 3 2006 MX Comp +Tas 2006 MX Pro Race 2006–2007 MX Pro SL 2006 MX Pro SL 105 Rem.Control 2006 MX Pro+Tas 2006 Z1 Light 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 Sport+ 2006 4X Lopes 2007 4X WC 2007 AM 2 -160 2007 AM SL 1 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 400 - 2007 XC 400 -130 2007 XC 500 - 2007 XC 500 -130 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 500 TSt5 -130 2007 XC 500 TSt5 RC - 2007 XC 500 TSt5 RC -130 2007 XC 600 - 2007 XC 600 -130 2007 XC 600 RC -100 2007 XC 600 RC -130 2007 XC SL 2007 Z1 RC2 + 2007 4X World Cup 2008 Corsa SL WC 2008 MX Pro LO 2008 MZ Supercomp 2008 Marathon 2008–2012 XC 500 2008 XC 600 2008 XC 700 2008 22 2009–2010 33 2009–2010 44 2009–2014 4X 2009–2012 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 320 2014 320 LCR 2015–2017 320 LR 2015–2017 44 Micro STA 2015–2016 Corsa LR 2015–2016 Marathon LR 2015 | 📋 2004 DIRTJUMPER 1 110 📋 2004 DIRTJUMPER 1 110 QR 📋 2004 DIRTJUMPER 1 130 📋 2004 DIRTJUMPER 1 130 QR 📋 2004 DIRTJUMPER 2 110 📋 2004 DIRTJUMPER 2 110 QR 📋 2004 DIRTJUMPER 2 130 📋 2004 DIRTJUMPER 2 130 QR 📋 2004 DIRTJUMPER 2 150 QR 📋 2004 DIRTJUMPER 3 110 📋 2004 DIRTJUMPER 3 110 QR 📋 2004 DIRTJUMPER 3 130
All 202 documents →
| OverviewShopCatalogueParts listsDocuments | |

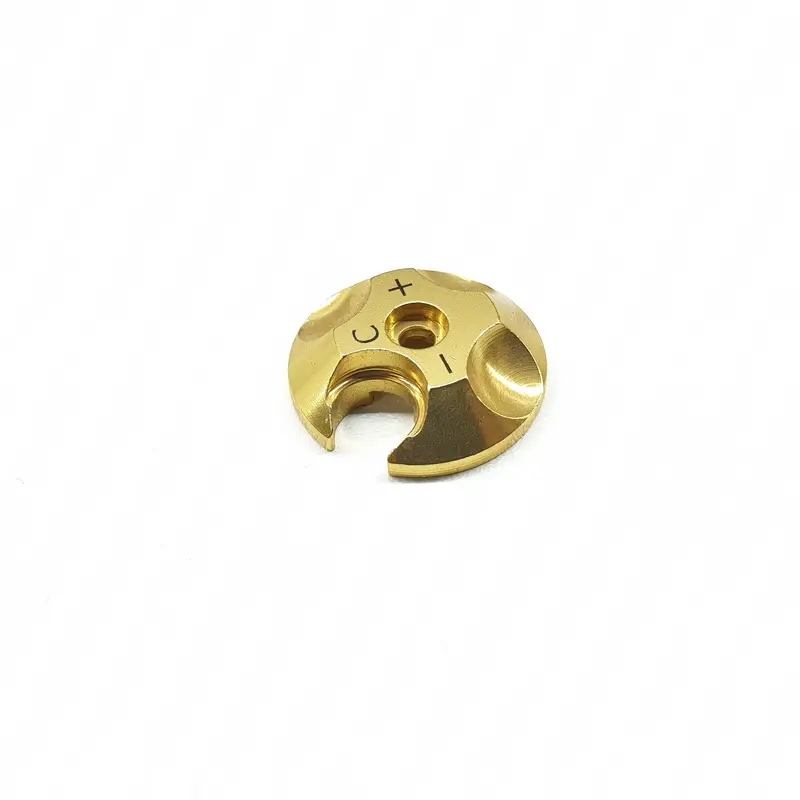

 | 549080AQ | Knob Compression 66RC | 2005 | Gold | Compression |
Fits: 66 (2005) 66 RC 2005 | 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170 | OverviewCatalogueParts listsDocuments | |

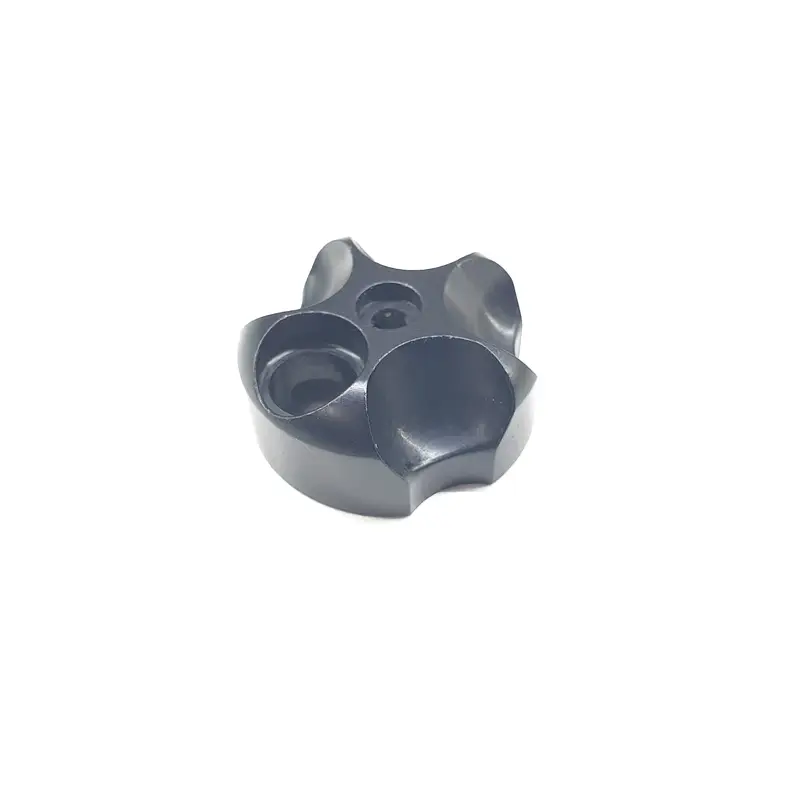

 | 549083AD | TST Adjuster | 2005 | Black |
Fits: All Mountain · Marathon · Z1 (2005) AM 1 2005 AM 1 - 130 2005 AM SL 2005 AM SL - 130 2005 Marathon Race 2005 Marathon SL 2005 Marathon XC 2005 Marathon XC 100-120 2005 Z1 Free Ride SL 2005 | 📋 2005 ALLMOUNTAIN 1 - 110 130 📋 2005 ALLMOUNTAIN 1 - 130 150 📋 2005 ALLMOUNTAIN SL - 110 130 📋 2005 ALLMOUNTAIN SL - 130 150 📄 2005 All Mountain 1 AM - Technical Instructions 32mm - 110-130 & 130-150 TAS 📄 2005 All Mountain SL AM - Technical Instructions 32mm - 130-150 📋 2005 MARATHON RACE 📋 2005 MARATHON SL 📋 2005 MARATHON XC 100-120 📄 2005 Marathon Race - Technical instructions 32mm 80 📄 2005 Marathon SL - Technical Instructions 30mm 100-120 📄 2005 Marathon XC - Technical Instructions - 30mm - 85, 105 & 120
All 14 documents →
| OverviewCatalogueParts listsDocuments | ||

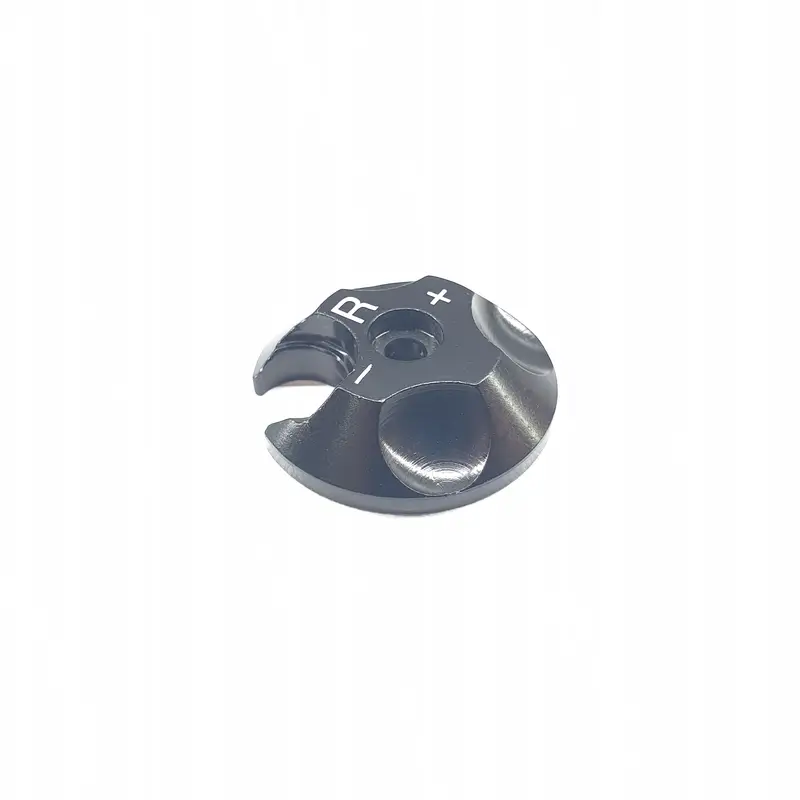

 | 549081LA 8501379 · 549081AQ | Knob REBOUND 66RC | 2005–2008 | Black · Gold | Rebound |
Fits: 4X · Z1 (2006–2008) 66 R 2005 66 RC 2005 AM 2 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Light 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 RC2 + 2007 | 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170 📄 2005 66 R - Technical Instructions - 35mm - 150 & 170 📋 2005 66 R 150 📋 2005 66 R 170 📋 2005 ALLMOUNTAIN 2 HSCV+ETA 150 📄 2005 All Mountain 2 HSCV ETA AM - Technical Manual 📋 2005 Z1 FREERIDE 1 TA 130 📋 2005 Z1 FREERIDE 1 TA 150 📋 2005 Z1 FREERIDE 2 TA 130 📋 2005 Z1 FREERIDE 2 TA 150
All 24 documents →
| OverviewCatalogueParts listsDocuments | |

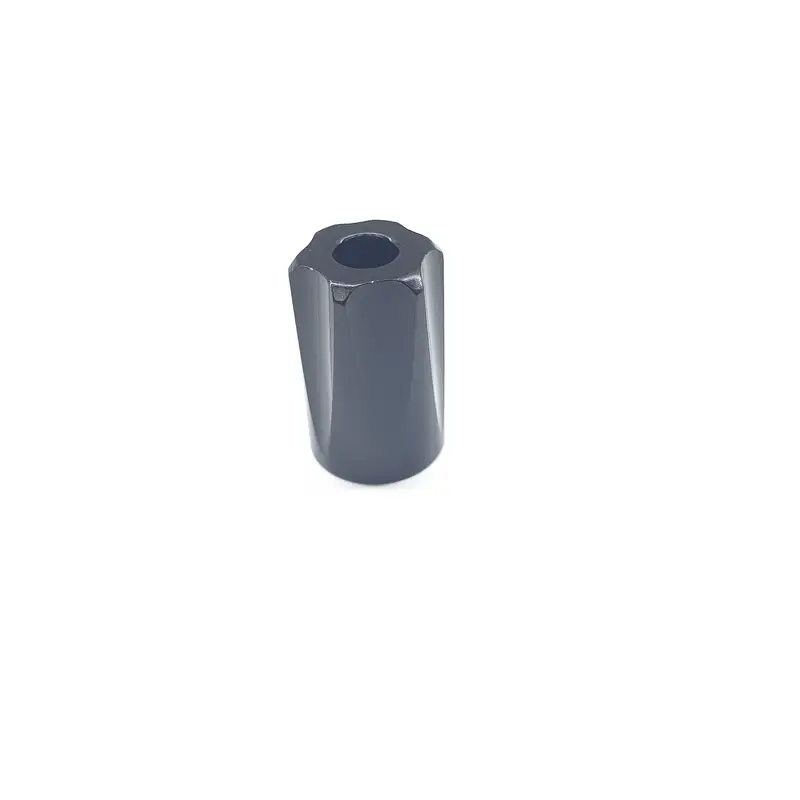

 | 549085LAA 549085 · 549085LA · 549085AQ | Rebound Adjuster Knob Alu | 2005–2008 | Black | Rebound | AM 1 2005–2006 AM 1 - 130 2005 AM SL 2005–2006 AM SL - 130 2005 Marathon SL 2005–2006 Marathon XC 2005–2006 Marathon XC 100-120 2005 Z1 Free Ride SL 2005 66 VF2 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 AM 1 Remote Control 2006 AM 1+ 2006 AM 2 +Tas 2006 AM SL Remote Control 2006 MX Comp +Tas 2006 MX Pro SL 2006 MX Pro SL 105 Rem.Control 2006 MX Pro+Tas 2006 Marathon SL Rem.Control 2006 Marathon XC Rem.Control 2006 AM SL 1 2007 55 2008–2014 44 2009–2014 44 Micro STA 2015–2016 55 CR 2015–2016 | 📋 2005 ALLMOUNTAIN 1 - 130 150 📋 2005 ALLMOUNTAIN SL - 130 150 📄 2005 All Mountain 1 AM - Technical Instructions 32mm - 110-130 & 130-150 TAS 📄 2005 All Mountain SL AM - Technical Instructions 32mm - 130-150 📋 2005 MARATHON SL 📋 2005 MARATHON XC 100-120 📄 2005 Marathon SL - Technical Instructions 30mm 100-120 📄 2005 Marathon XC - Technical Instructions - 30mm - 85, 105 & 120 📋 2005 Z1 FREERIDE SL 📋 2005 Z1 FREERIDE SL TA 130-150 📄 2006 66 VF2 - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 150+ETA
All 42 documents →
| OverviewCatalogueParts listsDocuments | |

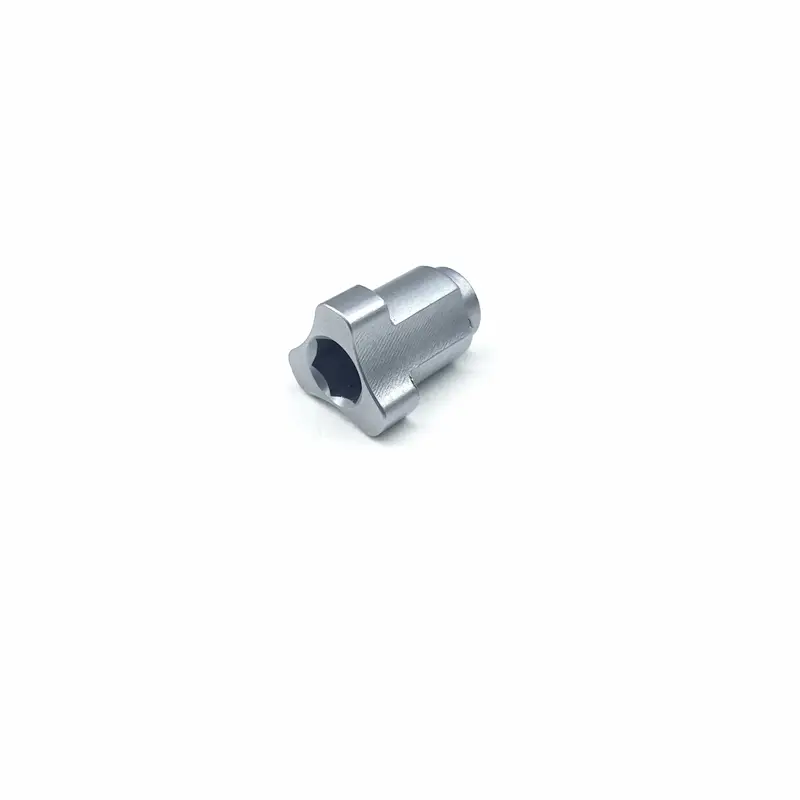

 | 549091TF | Roco Rebound Adjuster REG. F-R AMM | 2006 | Silver | Rebound |
Fits: Coil (2006) MXC Coil 2002 MXR Coil 2002 Mxc-Coil-100 2002 Mxr-Coil-100 2002 MX Comp Coil 2003–2005 MX Pro Coil 2003–2005 Marathon S Coil 2003–2004 | OverviewCatalogueParts lists | ||

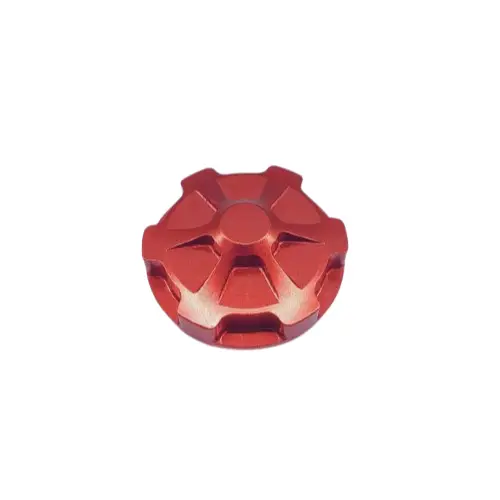

 | 549099KR | Air Knob Marathon | 2006 | Red | Air |
Fits: Marathon (2006) AM SL 2006 AM SL Remote Control 2006 Marathon Race 2006 Marathon Race Rem.Control 2006 Marathon SL 2006 Marathon SL Rem.Control 2006 | 📋 2006 ALLMOUNTAIN SL 📋 2006 ALLMOUNTAIN SL REMOTE CONTROL 📄 2006 All Mountain SL AM - Technical Instructions - 30mm - 130-150 | OverviewShopParts listsDocuments | |

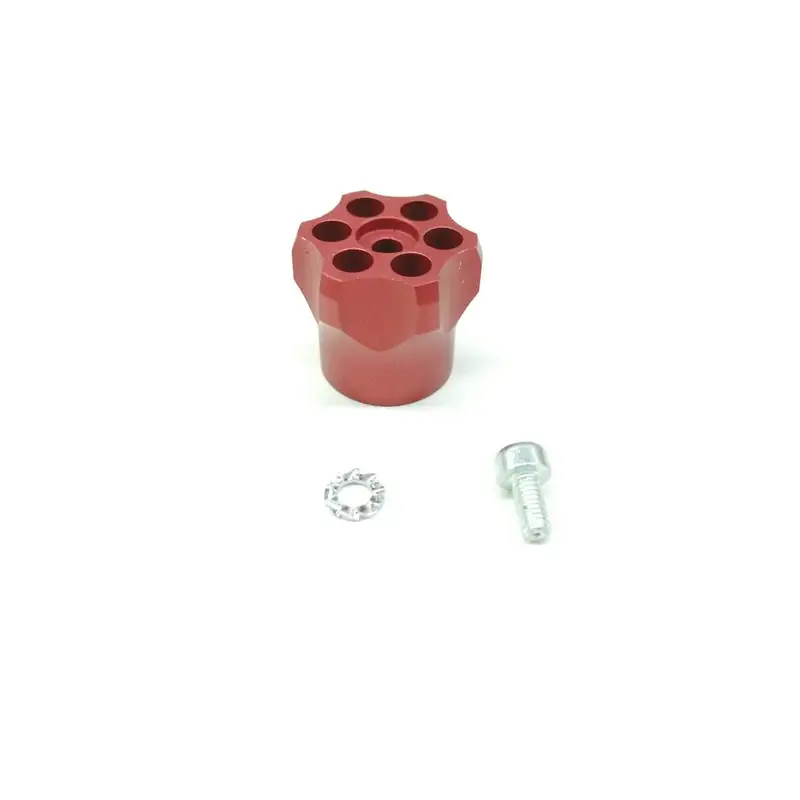

 | 8501378 | Knob 888 66 RC3 RC2X | 2006+ | Red |
Fits: 4X (2008–2009) 4X World Cup 2008 4X 2009 4X 4X WORLD CUP 2009 | OverviewShopCatalogueParts lists | |||

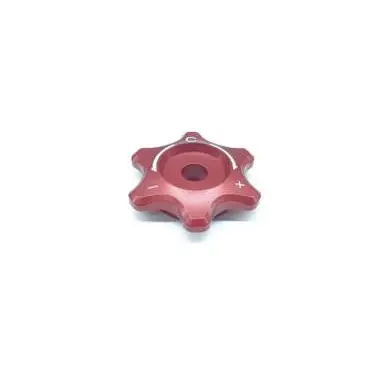

 | 549093KR 549093 | 66 RC2X 55 RC3 High Speed Compression Dial RC3 | 2006–2007 | Red | Compression |
Fits: 66 (2006–2007) 66 RC2X 2006–2007 | 📄 2006 66 RC2X - Technical Instructions - 35mm - 150 & 170 📋 2006 66 RC2X 150 📋 2006 66 RC2X 170 | OverviewShopCatalogueParts listsDocuments | |

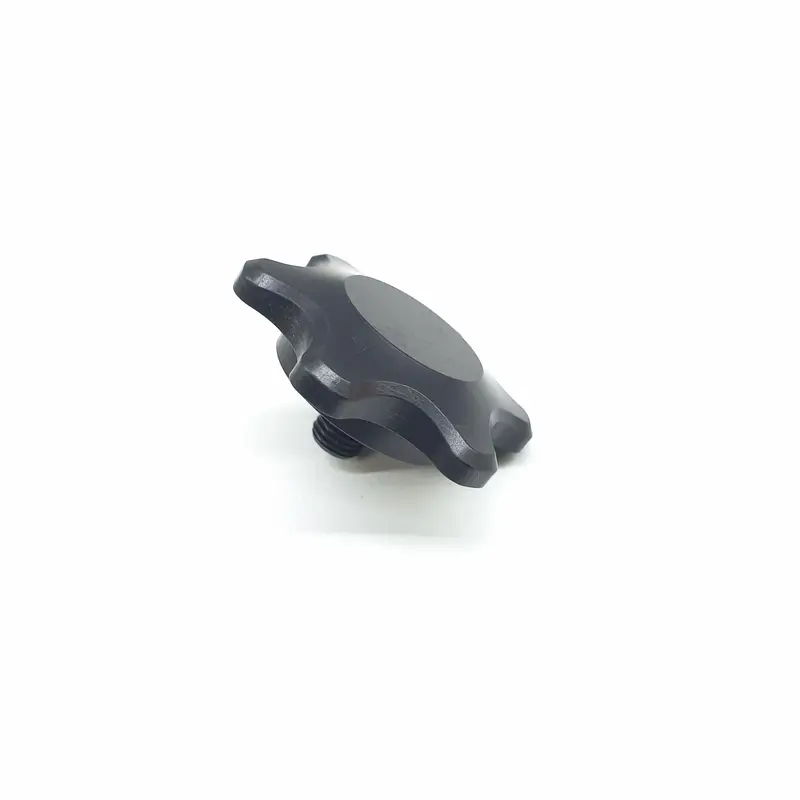

 | 549098LA 549098 | Alu Air Cap 66 | 2006–2007 | Black | Air |
Fits: 66 (2006–2007) 66 Light 2006 66 SL 2006 66 VF 2006 66 VF2 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 66 VF2 Lt 2006 66 RCv 2007 66 Rv 2007 66 Rv+ 2007 66 SL 2 2007 | 📋 2006 66 LIGHT 150 📋 2006 66 LIGHT 170 📋 2006 66 SL 📄 2006 66 SL - Technical Instructions - 35mm - 150-170 📄 2006 66 VF2 - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 150+ETA 📋 2006 66 VF2 150 📋 2006 66 VF2 170+ETA 📋 2006 66 VF2 170 📄 2006 66 VF2 ETA - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 LT 📄 2006 66 VF2 LT - Technical Instructions - 35mm - 190
All 22 documents →
| OverviewShopCatalogueParts listsDocuments | |

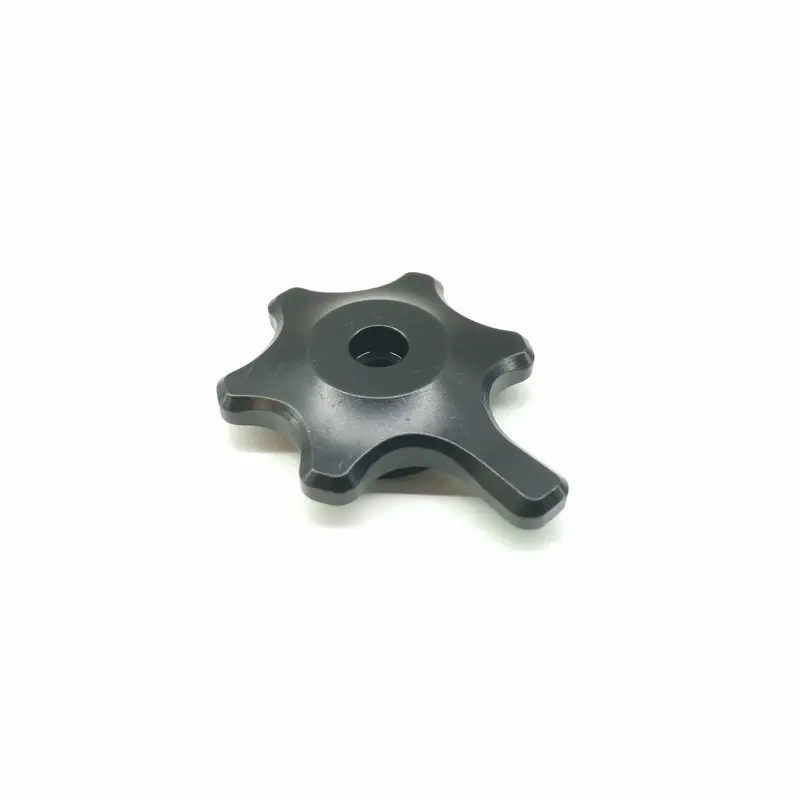

 | 549101LA | Knob 66 ETA | 2006–2007 | Black |
Fits: 66 (2006–2007) 66 Light+ 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 66 RC2+E 2007 66 Rv+ 2007 | 📋 2006 66 LIGHT+ETA 📄 2006 66 Light ETA - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 150+ETA | OverviewCatalogueParts listsDocuments | ||

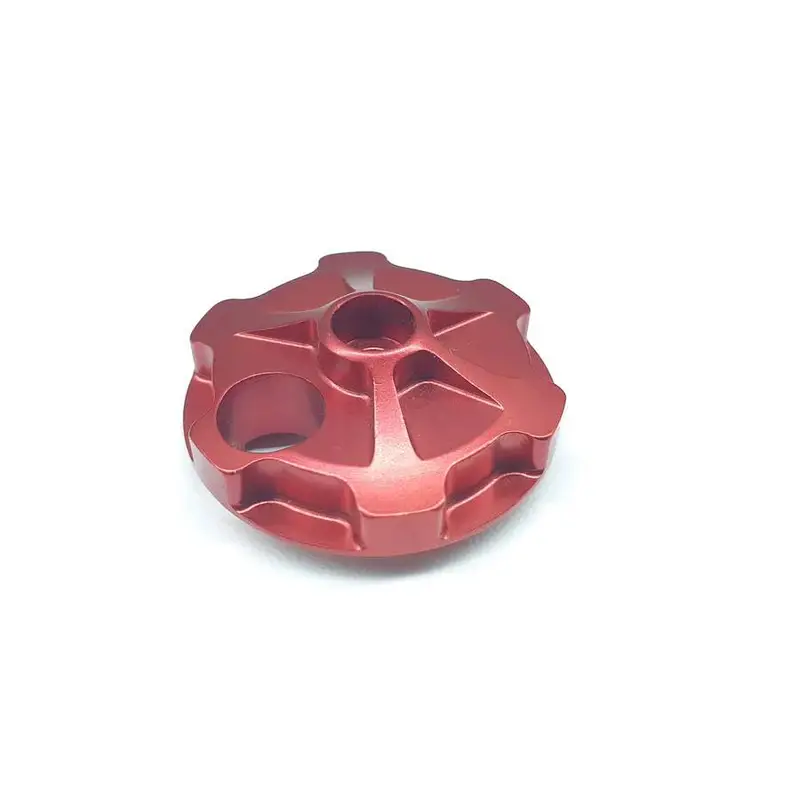

 | 549102KR | Knob TST MARATHON-AM-XC-MX | 2006–2007 | Red |
Fits: Marathon · MX · XC (2006–2007) AM 1 2006 AM 1+ 2006 AM SL 2006 MX Pro SL 2006 Marathon Race 2006 Marathon SL 2006 Marathon XC 2006 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 500 TSt5 -130 2007 | 📋 2006 ALLMOUNTAIN 1+ETA 📋 2006 ALLMOUNTAIN 1 📋 2006 ALLMOUNTAIN SL 📄 2006 All Mountain 1 AM - Technical Instructions - 32mm - 130-150 📄 2006 All Mountain SL AM - Technical Instructions - 30mm - 130-150 📋 2006 MARATHON RACE 📋 2006 MARATHON SL 📋 2006 MARATHON XC 📋 2006 MX PRO SL 105 📋 2006 MX PRO SL 120 📄 2006 MX Pro SL - Technical Instructions - 30mm - 105 & 120 📄 2006 Marathon Race - Technical Instructions - 30mm - 80
All 16 documents →
| OverviewShopParts listsDocuments | ||

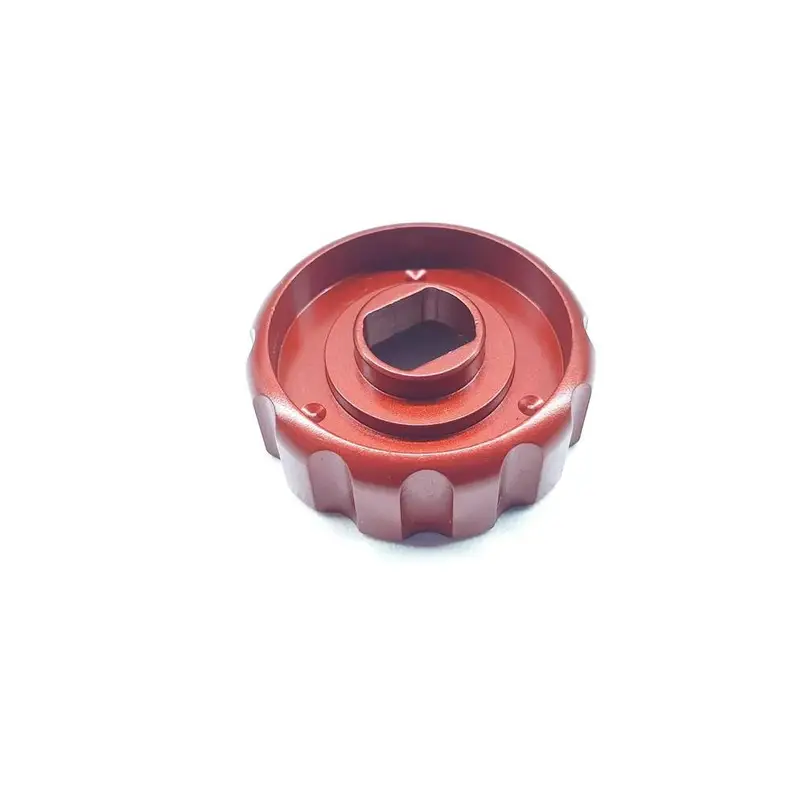

 | 549086KR | Knob 66 888 | 2006–2008 | Red |
Fits: 888 (2006–2010) 888 RC2 2006–2007 888 RC2X 2006–2007 888 RCx 2007 | 📋 2006 888 RC2X 170 📋 2006 888 RC2X 200 📄 2006 888 RC2X RC2 - Technical Instructions - 35mm - 170 & 200 | OverviewShopParts listsDocuments | ||
 | 549089 549089A | Knob REG.POMP.ECO FA | 2006–2008 | Red | Compression |
Fits: 66 · 888 · All Mountain · AM · DJ · Drop Off · Super T · Z1 (2006–2010) Z1 Bomber 1997 Z1 BAM 1999 Z1 Bomber BAM 1999 Z1 Drop-Off 1999–2003 Z1 Dual 1999 Z1 QR 1999–2000 Z2 BAM 1999 Z1 CR 2000 Z1 MCR 2000–2001 Z1 X-Fly 2000 Z3 BAM 2000 Super T 2001–2004 Dj1-110 2002 Dj2-130 2002 Z1 Free Ride 2002–2004 Z1 Wedge 2002–2004 Z1-Dropoff-130 2002 Z1-Freeride-130 2002 Z1-Wedge130 2002 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Z1 Drop Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride SL 2003–2005 888 2004–2015 888 R 2004–2005 888 RR 2004 888 RT 2004 Dj1 110 2004 Dj2 2004 Dj3 2004 Street DJ 2004–2005 Street Dj 2004–2005 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 Z150 FR SL 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005 AM 1 2005 AM 1 - 130 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 AM 3 2005–2007 AM 3- 2005 AM SL 2005–2006 AM SL - 130 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 66 RC2X 2006–2007 66 SL 2006 66 VF2 2006 66 VF2 Lt 2006 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 AM 1+ 2006 AM 2 +Tas 2006 DJ 3 Std 2006 Dirt Jam Pro 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 66 RC2+E 2007 66 RCv 2007 66 SL 1 2007 888 RCv 2007 888 SL 2007 AM SL 1 2007 Z1 RC2 + 2007 55 2008–2014 66 2008–2012 44 2009–2014 44 Micro STA 2015–2016 55 CR 2015–2016 | 📄 2006 66 VF2 - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 150 📋 2006 66 VF2 170 📋 2006 66 VF2 LT 📄 2006 66 VF2 LT - Technical Instructions - 35mm - 190 📋 2006 888 VF2 170 📋 2006 888 VF2 200 📄 2006 888 VF2 RC2 - Technical Instructions - 35mm - 170 & 200 📋 2006 ALLMOUNTAIN 2 130 📋 2006 ALLMOUNTAIN 2 150 📄 2006 All Mountain 2 AM - Technical Instructions - 30mm - 130 & 150 📄 2006 All Mountain AM 2 TW - Technical Instructions - 32mm - 110 & 130 & 150
All 28 documents →
| OverviewShopCatalogueParts listsDocuments | |

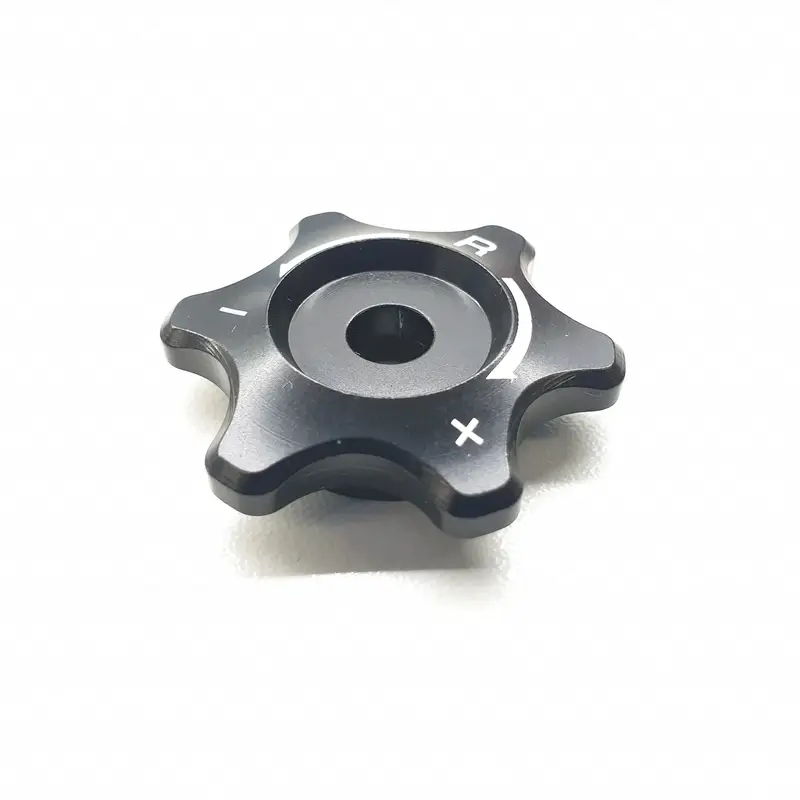

 | 549094LA 549094 | Knob | 2006–2008 | Black |
Fits: 55 · 66 (2006–2010) 66 R 2005 66 RC 2005 66 VF 2005–2006 66 Light 2006 66 Light+ 2006 66 RC2X 2006–2007 66 SL 2006 66 RC2+E 2007 66 SL 1 2007 55 2008–2014 66 2008–2012 55 CR 2015–2016 | 📋 2006 66 LIGHT+ETA 📋 2006 66 LIGHT 150 📋 2006 66 LIGHT 170 📄 2006 66 Light ETA - Technical Instructions - 35mm - 150 & 170 📄 2006 66 RC2X - Technical Instructions - 35mm - 150 & 170 📋 2006 66 RC2X 150 📋 2006 66 RC2X 170 📋 2006 66 SL 📄 2006 66 SL - Technical Instructions - 35mm - 150-170 📋 2007 66 RC2+E 160 📋 2007 66 RC2+E 180 📋 2007 66 RC2X 160
All 15 documents →
| OverviewShopCatalogueParts listsDocuments | ||
 | 549100 549100KR | ETA Knob MX Pro | 2007 | AM 1 2006 AM 1 Remote Control 2006 AM 1+ 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 MX Comp +Tas 2006 MX Comp+ 2006 MX Pro+ 2006 MX Pro+Tas 2006 Marathon XC 2006 Marathon XC Rem.Control 2006 MX Pro ETA 2007 | 📋 2006 ALLMOUNTAIN 1+ETA 📋 2006 ALLMOUNTAIN 1 📋 2006 ALLMOUNTAIN 1 REMOTE CONTROL 📋 2006 ALLMOUNTAIN 2 +TAS 📋 2006 ALLMOUNTAIN 2 130+ETA 📋 2006 ALLMOUNTAIN 2 150+ETA 📄 2006 All Mountain 1 AM - Technical Instructions - 32mm - 130-150 📄 2006 All Mountain 2 ETA AM - Technical Instructions - 30mm - 130 & 150 📋 2006 MARATHON XC 📋 2006 MARATHON XC REM.CONTROL 📋 2006 MX COMP+ETA 105 📋 2006 MX COMP+ETA 120
All 21 documents →
| OverviewShopCatalogueParts listsDocuments | |||

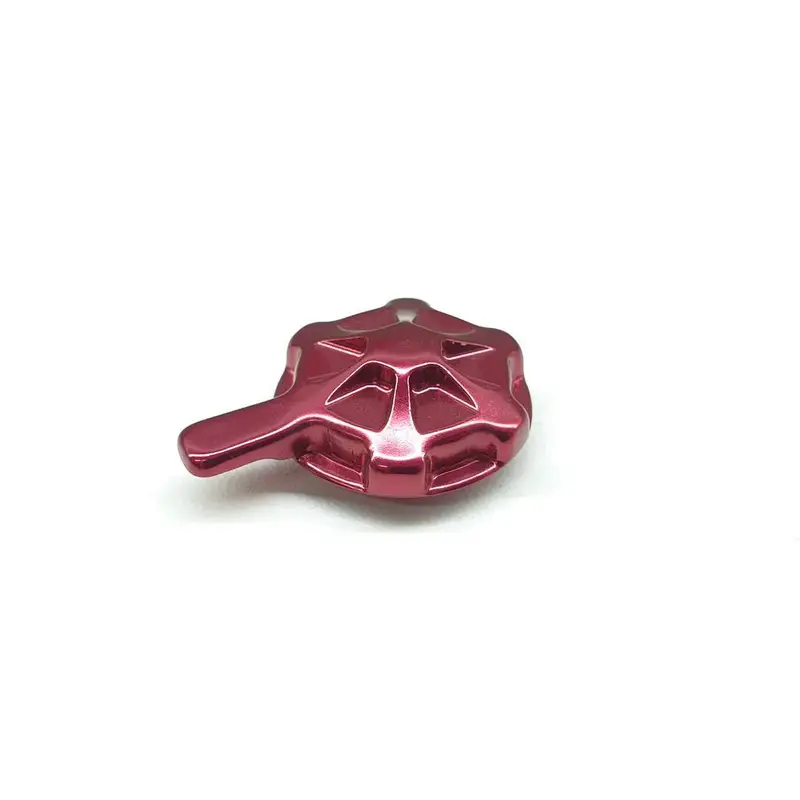

 | 549114KR | Knob ETA - TST2 XC500 | 2007 | Red |
Fits: All Mountain · Corsa · XC (2007) XC100 1991 XC150 1991–1993 XC200 1991–1992 XC300 1992 XC400 1993–1994 XC50 1993 XC500 1993–1994 XC50H 1993 XC51 1993–1994 XC250 1994 XC51H 1994 XC600 1994–1995 XC700 1995 XCR 1995–1996 MXC Air 2002 MXC Coil 2002 Mxc-Air- -100 2002 Mxc-Air-100 2002 Mxc-Coil-100 2002 Marathon XC 2005–2006 Marathon XC 100-120 2005 TXC 2005–2010 TXC 1 2006–2008 TXC 2 2006–2008 TXC ECC 2006 AM 1 2007 AM 1 -140 2007 AM 1 -160 2007 AM SL 2 2007 Corsa SL Race -100 2007 Corsa SL Race -80 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 - 2007 XC 500 -130 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 600 RC -130 2007 XC 700 -100 2007 XC 700 -130 2007 XC SL 2007 Corsa SL WC 2008 TXC LO 2008 XC 500 2008 XC 600 2008 XC 700 2008 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 Corsa LR 2015–2016 | 📋 2007 ALLMOUNTAIN 1 -140 📋 2007 AM 1 -160 📋 2007 AM 1 QR 140 📋 2007 AM 1 QR 160 📋 2007 AM 1 TA 140 📋 2007 AM 1 TA 160 📋 2007 AM SL 2 📋 2007 AM SL 2 QR 📋 2007 AM SL 2 TA 📋 2007 CORSA SL RACE -100 📋 2007 CORSA SL RACE -80 📋 2007 XC 500 -130
All 16 documents →
| OverviewShopCatalogueParts listsDocuments | ||

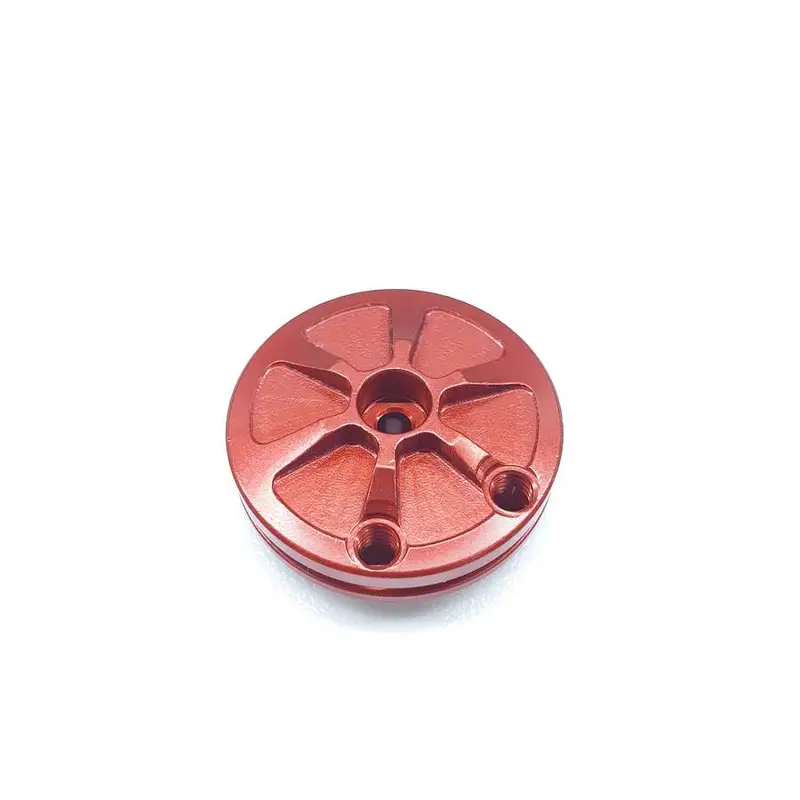

 | 549129KR | ETA Knob Remote Control | 2007 | Red | Remote |
Fits: XC (2007) XC 600 RC -100 2007 XC 600 RC -130 2007 | 📋 2007 XC 600 RC -100 📋 2007 XC 600 RC -130 | OverviewCatalogueParts listsDocuments | |

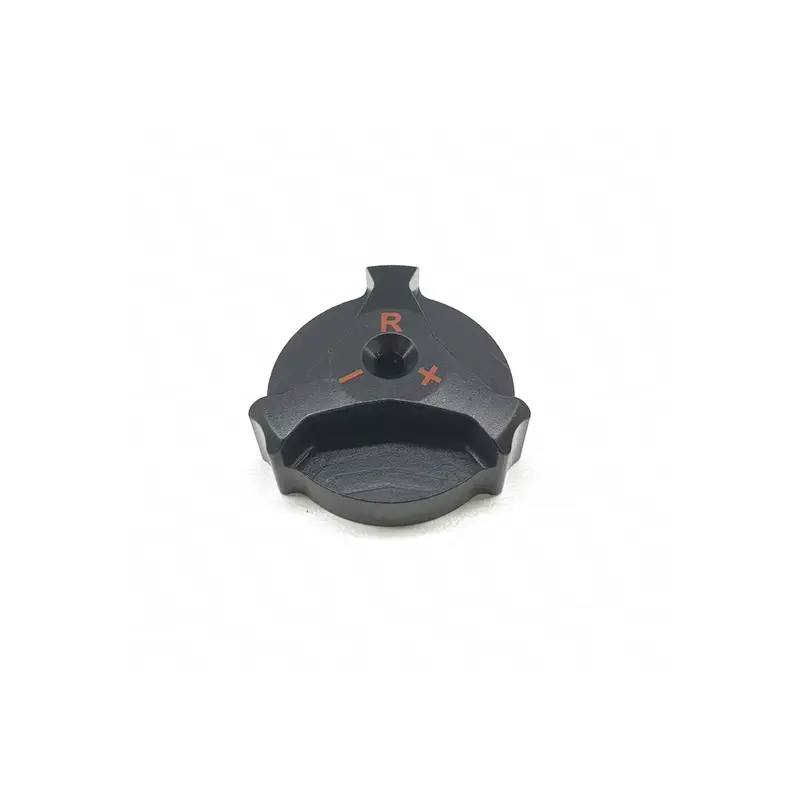

 | 549135LA | Rebound Adjuster 888 SL ATA Knob REG. F-R | 2007 | Black | Rebound |
Fits: 888 (2007) 888 SL 2007 | 📋 2007 888 SL | OverviewCatalogueParts listsDocuments | |

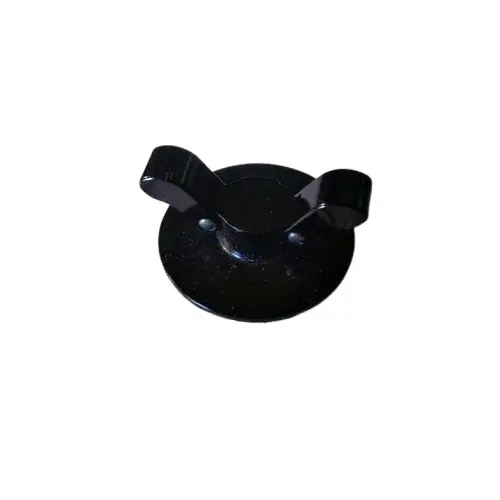

 | — | Knob XC 500 Retro ATA | 2007 | Black | Overview | ||||

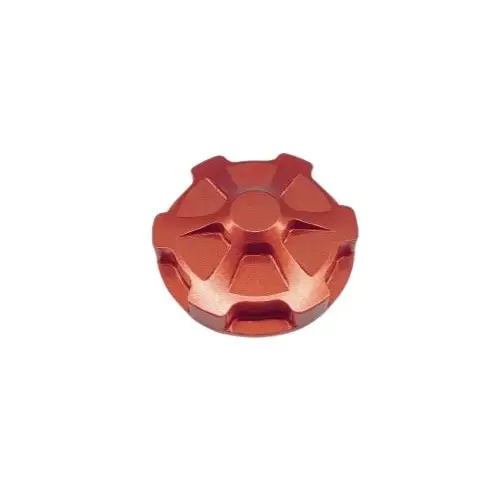

 | 549138KR | Corsa SFA Top Valve Cap | 2007–2008 | Red |
Fits: Corsa · Marathon (2007–2008) Corsa SL Race -100 2007 Corsa SL Race -80 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 | 📋 2007 CORSA SL RACE -100 📋 2007 CORSA SL RACE -80 📋 2007 CORSA SL WC -100 | OverviewCatalogueParts listsDocuments | ||

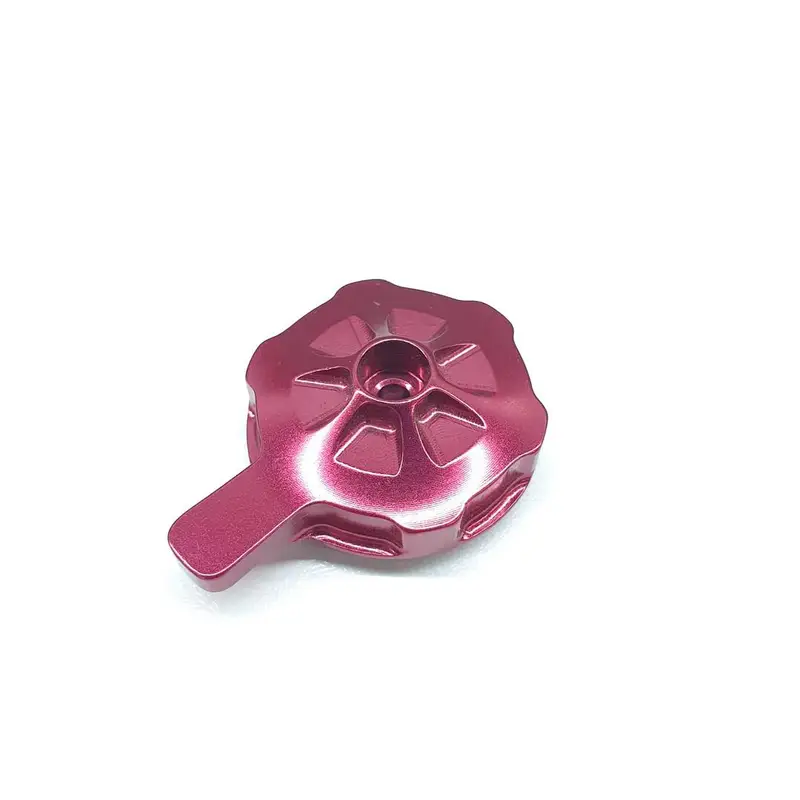

 | 549146KR | TST5 Adjuster | 2007–2008 | Red |
Fits: All Mountain · Corsa · Marathon · XC (2007–2008) AM SL 1 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 TSt5 RC - 2007 XC 500 TSt5 RC -130 2007 XC SL 2007 | 📋 2007 AM SL 1 📋 2007 AM SL 1 QR 📋 2007 AM SL 1 TA | OverviewShopParts listsDocuments | ||

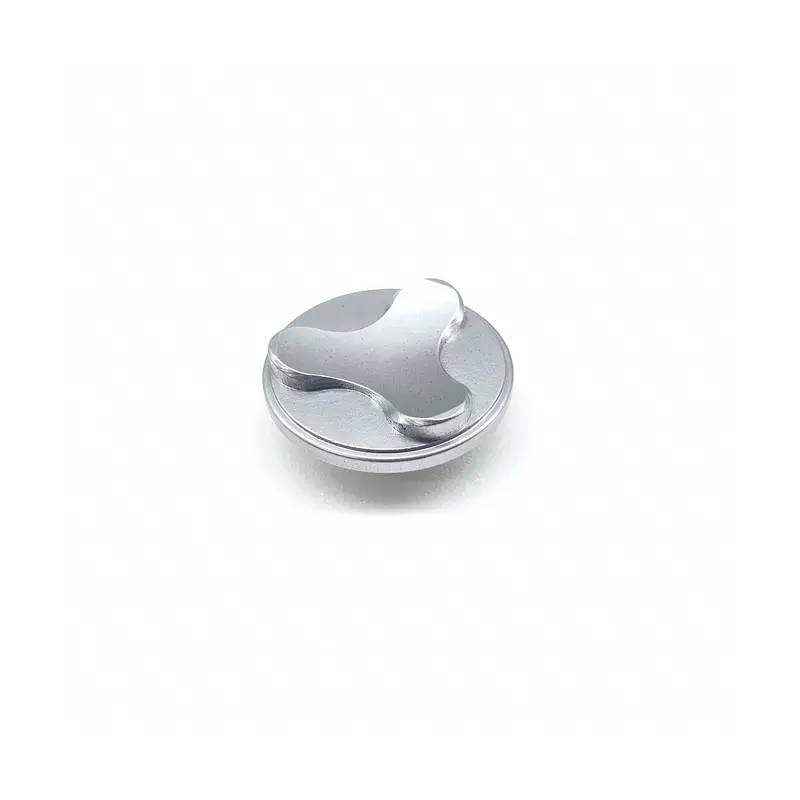

 | 549103TF 549161TFP · 549161TF | Roco Air Reservoir Cap A | 2008 | Silver | Air |
Fits: AIR · roco (2006–2008) | 📋 2008 SpareParts | OverviewCatalogueDocuments | |

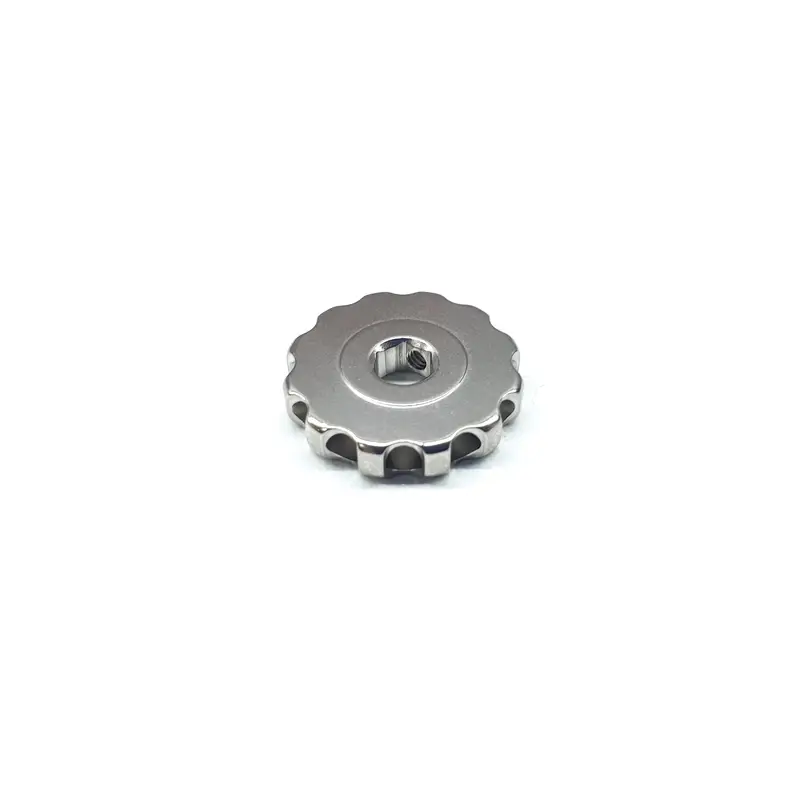

 | 549147TVB 8501569 | Rebound Adj. Knob Roco Air Piggy | 2008 | Silver | Rebound · Air | OverviewCatalogue | |||
 | 549151KR | Cap TST Micro Remote | 2008 | Red | Remote |
Fits: Marathon · XC (2008) | 📋 2008 SpareParts | OverviewShopDocuments | |

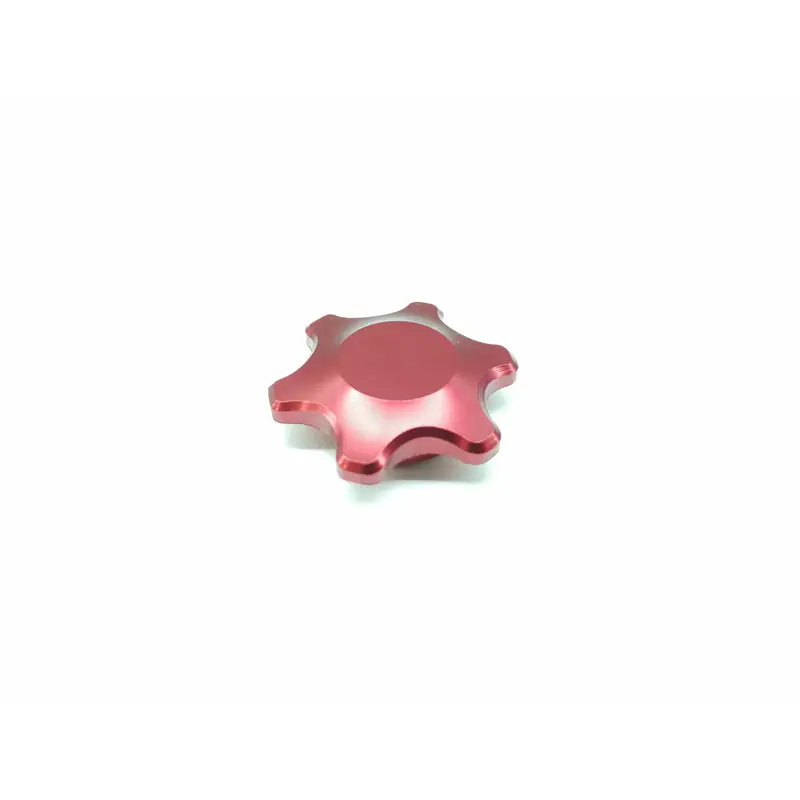

 | 549154KR | Knob Air Cap | 2008 | Red | Air |
Fits: 55 · 66 · 888 · Tst2 (2008–2010) | 📄 2008 888-RCV-Service Technical-Instructions 📋 2008 SpareParts | OverviewShopDocuments | |

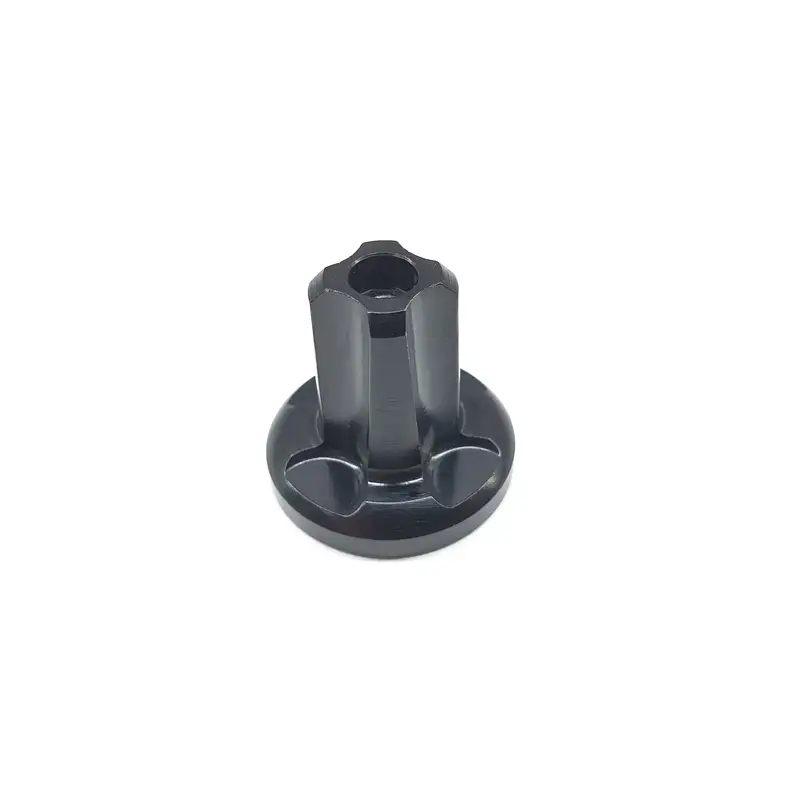

 | 549158LA | Adjuster rebound XC | 2008 | Black | Rebound |
Fits: Marathon (2008) | 📋 2008 SpareParts | OverviewCatalogueDocuments | |

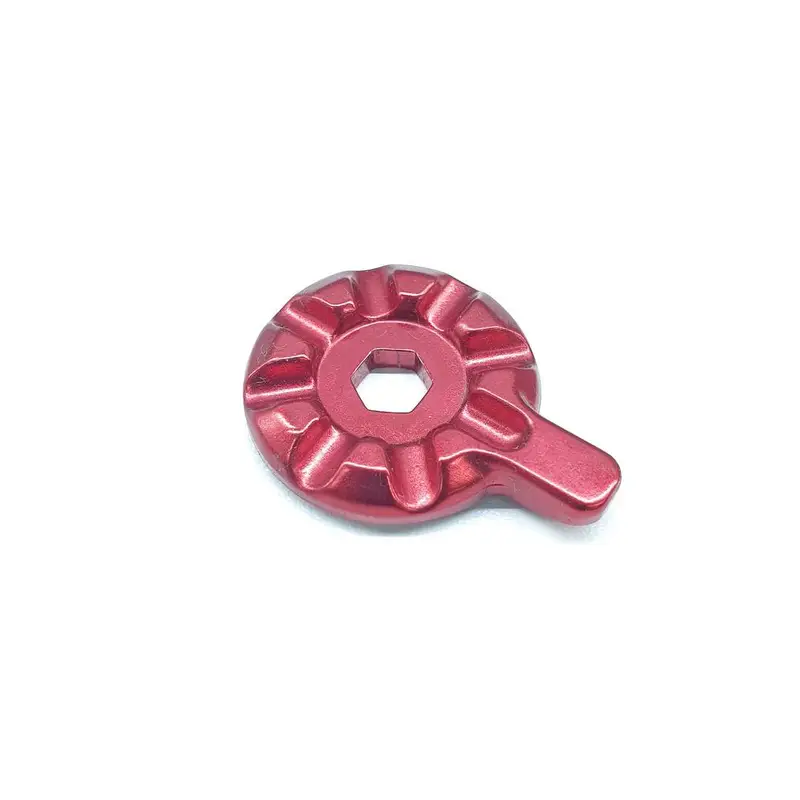

 | 549149KR | ext. Adjuster TST Micro | 2008+ | Red |
Fits: 44 · 55 · XC (2008–2010) | 📋 2008 SpareParts | OverviewShopDocuments | ||

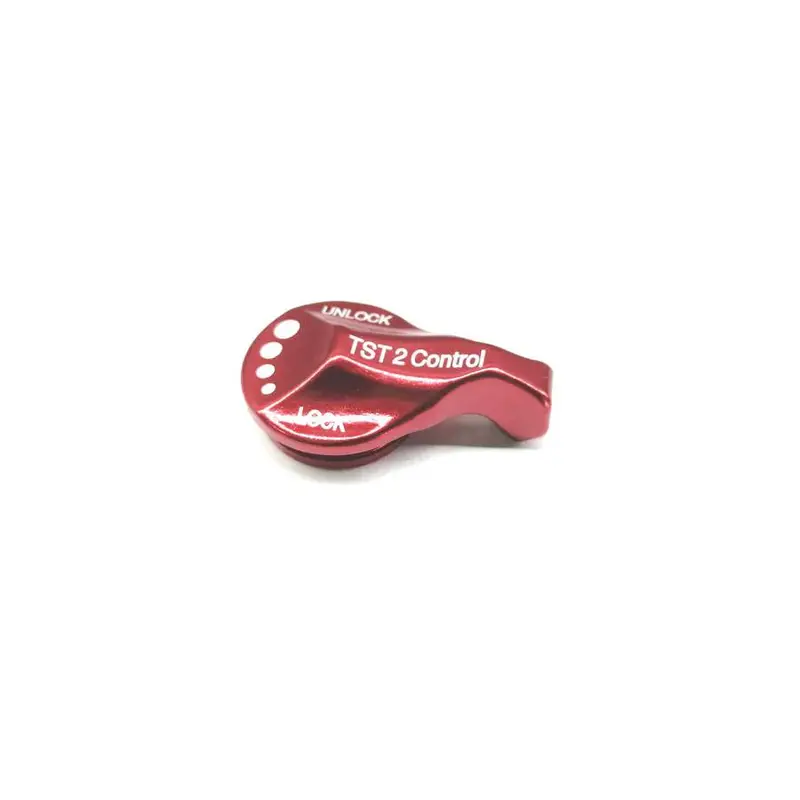

 | 549155KR 8501360 | Knob TST 2 Cartridge | 2008+ | Red |
Fits: Tst2 (2008–2011) XC100 1991 XC150 1991–1993 XC200 1991–1992 XC300 1992 XC400 1993–1994 XC50 1993 XC500 1993–1994 XC50H 1993 XC51 1993–1994 XC250 1994 XC51H 1994 XC600 1994–1995 XC700 1995 XCR 1995–1996 MXC Air 2002 MXC Coil 2002 Mxc-Air- -100 2002 Mxc-Air-100 2002 Mxc-Coil-100 2002 Marathon XC 2005–2006 Marathon XC 100-120 2005 TXC 2005–2010 TXC 1 2006–2008 TXC 2 2006–2008 TXC ECC 2006 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 600 RC -130 2007 XC SL 2007 55 2008–2014 Corsa SL WC 2008 TXC LO 2008 XC 500 2008 XC 600 2008 XC 700 2008 33 2009–2010 44 2009–2014 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 44 Micro STA 2015–2016 55 CR 2015–2016 Corsa LR 2015–2016 | 📋 2008 SpareParts | OverviewShopCatalogueParts listsDocuments | ||

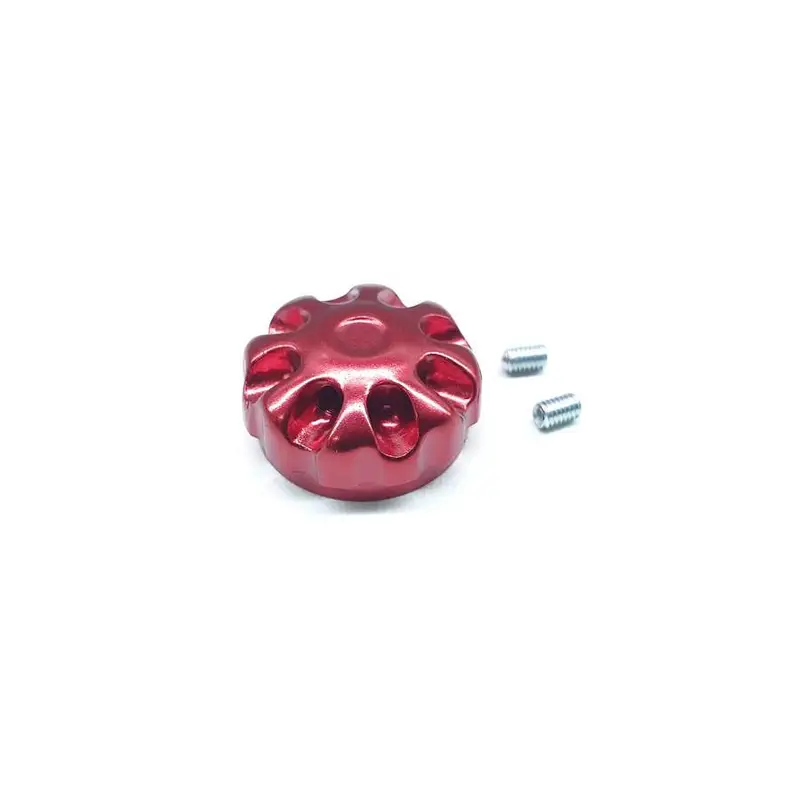

 | 8501385P 8501385 | Knob Lower Compression RC3 66 - 888 | 2008+ | Red | Compression |
Fits: 66 · 888 (2008–2014) 66 2008–2012 66 ATA 2008–2009 66 RC-3 2008 888 2008–2014 888 160-200mm ATA WC 2008 888 ATA World Cup 2008 888 RC-3 2008 888 RC-3 World Cup 2008 888 RV 35mm 2008–2012 66 66 RC3 2009–2010 66 66 RC3 - 1,5" 2009 66 ATA - 1,5" 2009 66 RC3 2009–2010 66 RC3 - 1,5" 2009 888 ATA WORLD CUP 2009 888 RC3 2009 888 RC3 WORLD CUP 2009 66 66 RC3 TITANIUM 2010 66 RC3 TITANIUM 2010 888 RC3 EVO 2010–2011 888 RC3 EVO TITANIUM 2010–2011 66 66 RC3 EVO 2011–2012 66 66 RC3 EVO TITANIUM 2011–2012 66 RC3 EVO 2011 66 RC3 EVO TITANIUM 2011 888 RV 35mm - 170 - ELMOTO 2011–2012 888 CR 2012–2014 | OverviewShopCatalogueParts lists | ||

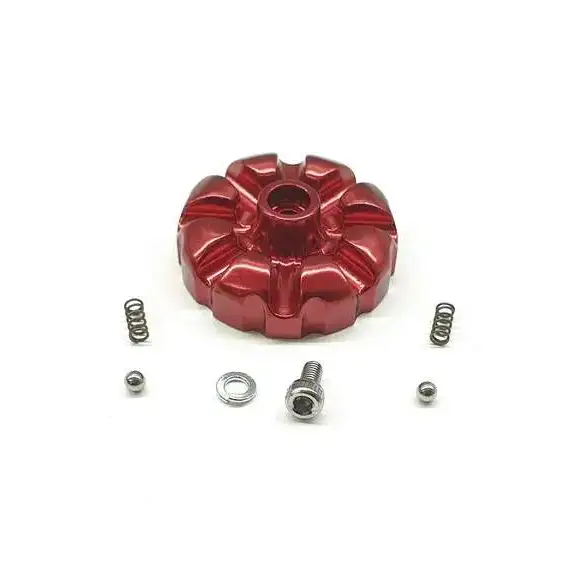

 | 8501391 | 66 888 Spring Preload Adjuster | 2008–2010 | Red | Preload |
Fits: 66 · 888 (2008–2011) 55 2008–2014 66 2008–2011 66 ATA 2008–2009 66 RC-3 2008 888 2008–2011 888 160-200mm ATA WC 2008 888 ATA World Cup 2008 888 RC-3 2008 888 RC-3 World Cup 2008 888 RV 35mm 2008–2011 66 66 RC3 2009–2010 66 66 RC3 - 1,5" 2009 66 ATA - 1,5" 2009 66 RC3 2009–2010 66 RC3 - 1,5" 2009 888 ATA WORLD CUP 2009 888 RC3 2009 888 RC3 WORLD CUP 2009 66 66 RC3 TITANIUM 2010 66 RC3 TITANIUM 2010 888 RC3 EVO 2010–2011 888 RC3 EVO TITANIUM 2010–2011 66 66 RC3 EVO 2011 66 66 RC3 EVO TITANIUM 2011 66 RC3 EVO 2011 66 RC3 EVO TITANIUM 2011 888 RV 35mm - 170 - ELMOTO 2011 55 CR 2015–2016 | OverviewShopCatalogueParts lists | ||

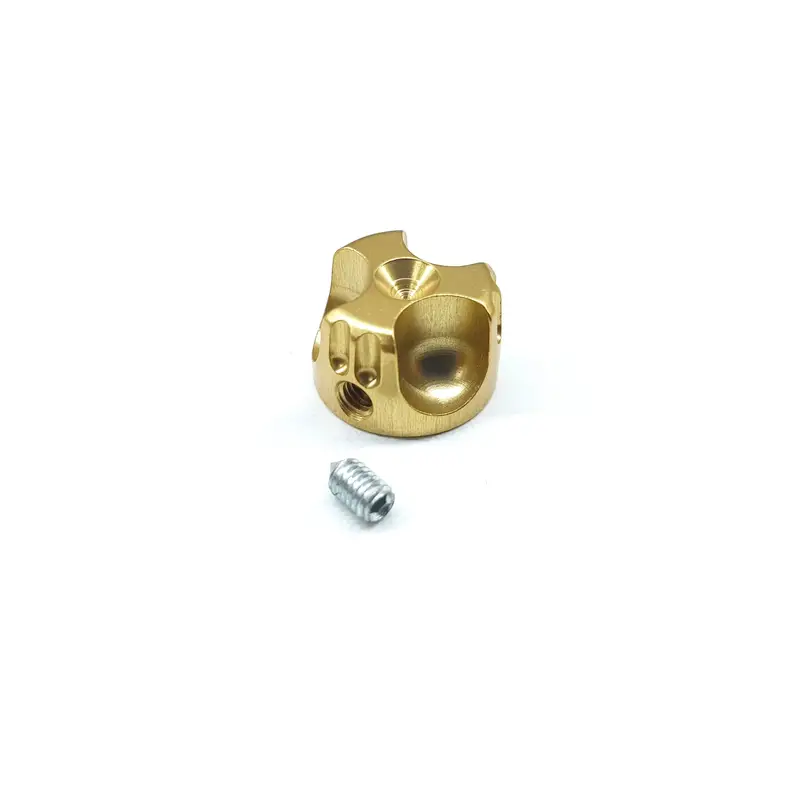

 | — | Knob UPPER GATE TST MICRO (RC) | 2008–2011 | Gold | Lock-out | Overview | |||

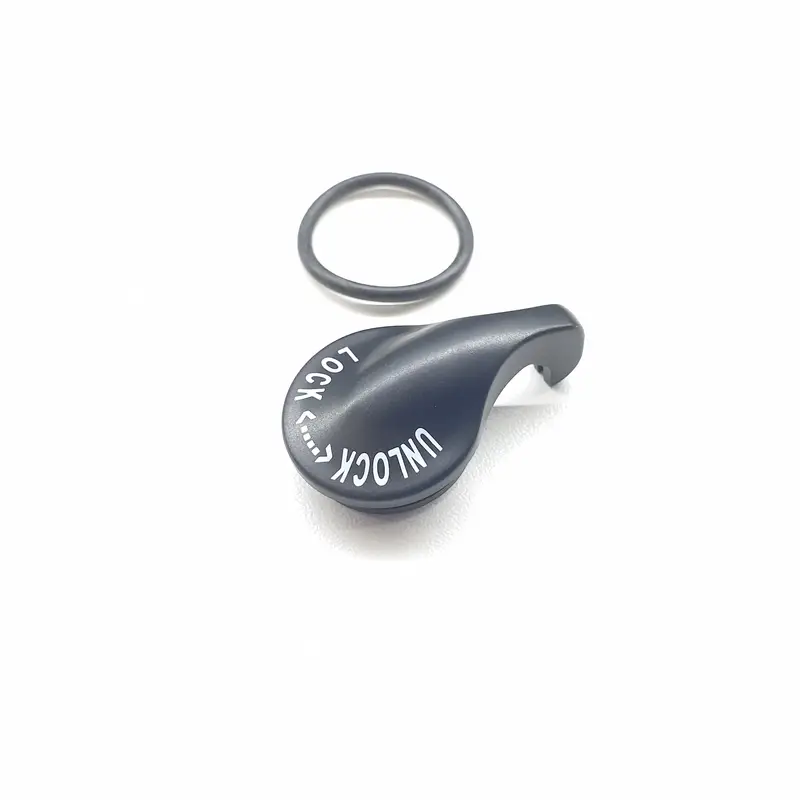

 | 8501369 | LO Knob Kit 22 - 33 - 44 Corsa | 2009 | Black | Lock-out |
Fits: 22 · 33 · 44 · Corsa (2009–2010) 22 2009–2010 33 2009–2010 44 2009–2010 44 ATA MICRO 2009 44 ATA MICRO - QR15 2009 44 ATA MICRO RC 2009 44 ATA MICRO RC - QR15 2009 CORSA CENTO - QR15 2009 Corsa 2009–2010 Corsa Cento 2009 44 44 RC3 TITANIUM 2010 44 29" MICRO TI - 100 2010 44 29" MICRO TI - 120 2010 44 29" MICRO TI - 140 2010 44 29" MICRO TI RC - 100 2010 44 29" MICRO TI RC - 120 2010 44 29" MICRO TI RC - 140 2010 44 MICRO TI - 120 2010 44 MICRO TI - 140 2010 44 MICRO TI RC - 120 2010 44 MICRO TI RC - 140 2010 CORSA MICRO TI 2010 | OverviewCatalogueParts lists | ||

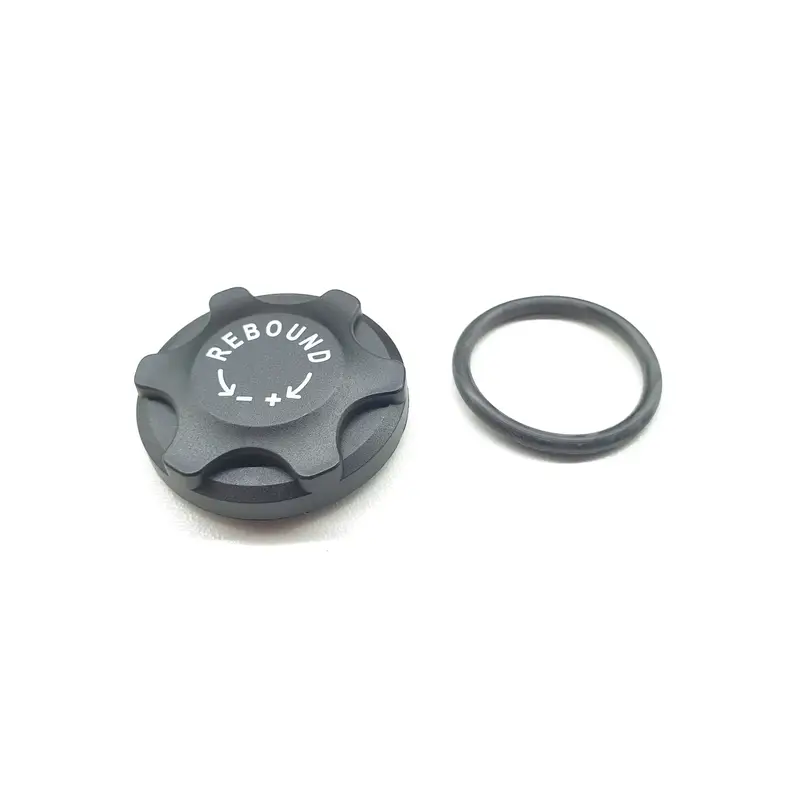

 | 8501410 | Rebound Adjuster incl. O-Ring | 2009 | Black | Rebound |
Fits: 22 · 33 · 55 · DJ · Z1 (2009–2010) Z1 Bomber 1997 Z1 BAM 1999 Z1 Bomber BAM 1999 Z1 Drop-Off 1999–2003 Z1 Dual 1999 Z1 QR 1999–2000 Z1 CR 2000 Z1 MCR 2000–2001 Z1 X-Fly 2000 Dj1-110 2002 Dj2-130 2002 Z1 Free Ride 2002–2004 Z1 Wedge 2002–2004 Z1-Dropoff-130 2002 Z1-Freeride-130 2002 Z1-Wedge130 2002 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Z1 Drop Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride SL 2003–2005 Dj1 110 2004 Dj2 2004 Dj3 2004 Street DJ 2004–2005 Street Dj 2004–2005 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 Z150 FR SL 2004 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 DJ 3 Std 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 RC2 + 2007 55 2008–2014 22 2009–2010 33 2009–2010 55 CR 2015–2016 | OverviewCatalogueParts lists | ||

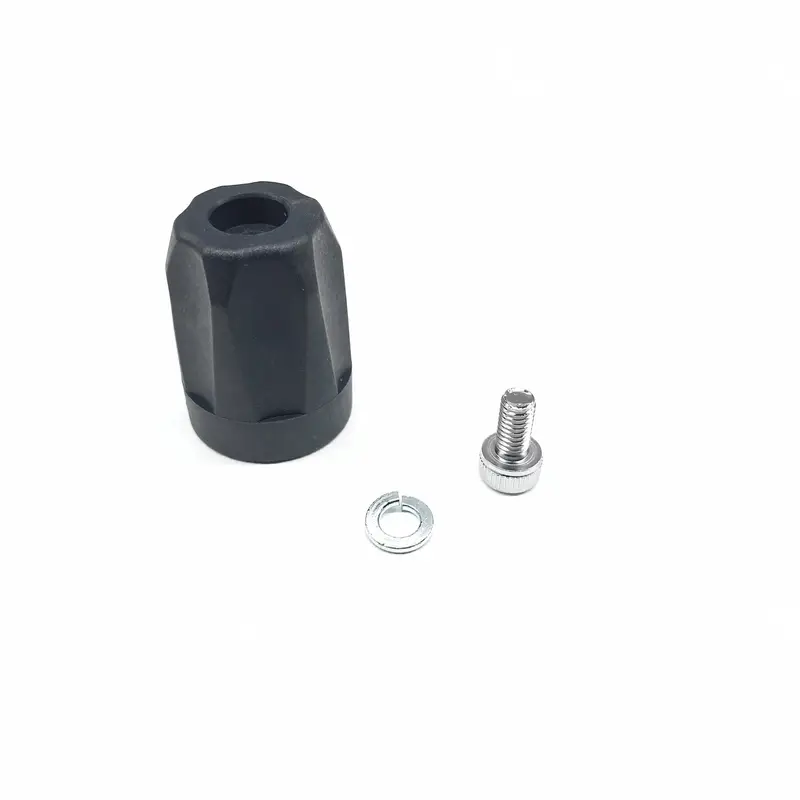

 | — | RV REBOUND KNOB | 2009 | Black | Rebound | Overview | |||

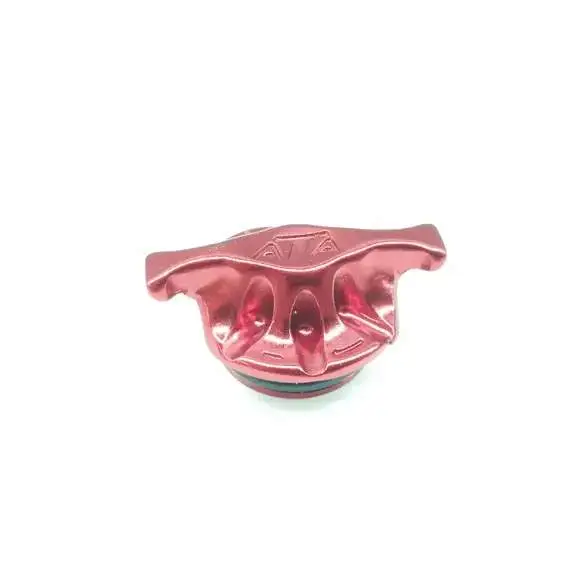

 | 8501352 | Knob ATA | 2009+ | Red |
Fits: 44 · 55 · 66 · 888 · Xc600 (2008–2009) XC600 1994–1995 888 2004–2015 888 R 2004–2005 888 RR 2004 888 RT 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005 66 RC2X 2006–2007 66 SL 2006 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 66 RC2+E 2007 66 SL 1 2007 888 RCv 2007 888 SL 2007 55 2008–2014 66 2008–2012 44 2009–2014 44 Micro STA 2015–2016 55 CR 2015–2016 | OverviewShopCatalogueParts lists | |||

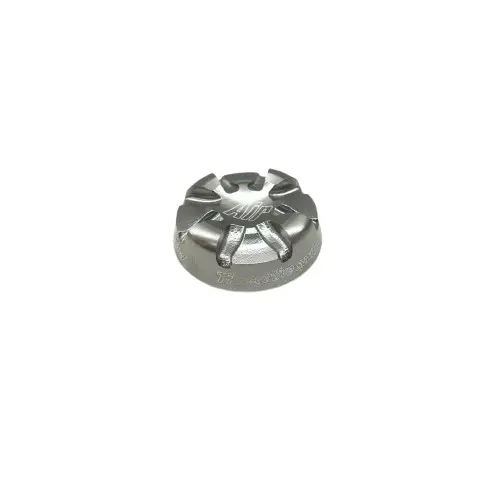

 | 549187 | Adj. Knob Air Corsa Micro Ti SLV Upper Alloy | 2010 | Silver | Air |
Fits: Corsa (2010) Corsa SL WC -100 2007 Corsa SL WC -80 2007 Corsa SL WC 2008 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 Corsa LR 2015–2016 | OverviewCatalogueParts lists | ||

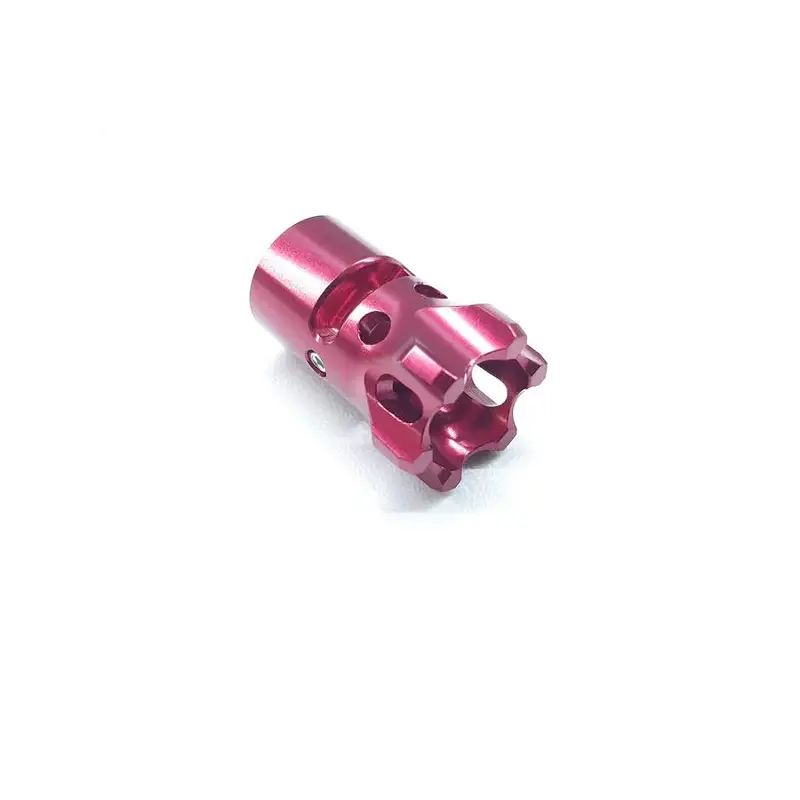

 | 8501443 | 44 4X RC3 Lower Knob 44 M2010 | 2010 | Red |
Fits: 44 (2010) 44 2010 44 44 RC3 TITANIUM 2010 44 29" MICRO TI - 100 2010 44 29" MICRO TI - 120 2010 44 29" MICRO TI - 140 2010 44 29" MICRO TI RC - 100 2010 44 29" MICRO TI RC - 120 2010 44 29" MICRO TI RC - 140 2010 44 MICRO TI - 120 2010 44 MICRO TI - 140 2010 44 MICRO TI RC - 120 2010 44 MICRO TI RC - 140 2010 | OverviewCatalogueParts lists | |||

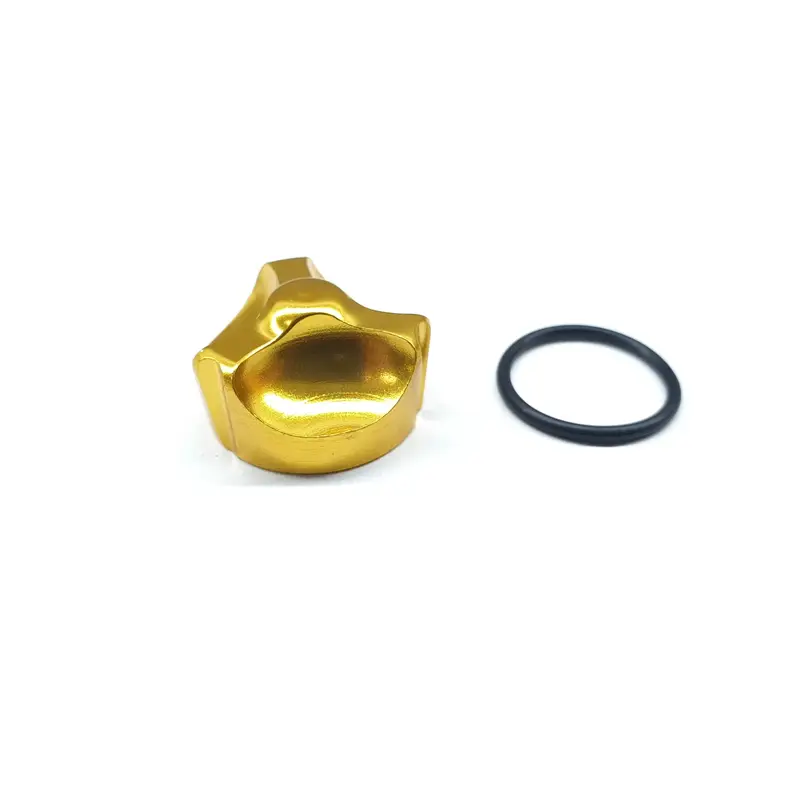

 | 8501447 8501447/P | Compr. Adjuster RC3 Evo 888 66 55 | 2010 | Gold | Compression |
Fits: 55 · 66 · 888 (2010–2014) 55 2010–2014 55 55 RC3 TITANIUM - 160 2010–2011 55 RC3 TITANIUM - 160 2010–2011 55 RS - 140 2010 55 RS - 160 2010 55 TST2 Coil 2010 66 2010–2012 66 66 RC3 2010 66 66 RC3 TITANIUM 2010 66 RC3 2010 66 RC3 TITANIUM 2010 888 2010–2014 888 RC3 EVO 2010–2011 888 RC3 EVO TITANIUM 2010–2011 888 RV 35mm 2010–2012 55 TST2 COIL 2011 55RS 2011 66 66 RC3 EVO 2011–2012 66 66 RC3 EVO TITANIUM 2011–2012 66 RC3 EVO 2011 66 RC3 EVO TITANIUM 2011 888 RV 35mm - 170 - ELMOTO 2011–2012 55 55 RC3 EVO TITANIUM -170 2012 55 CR - 150 2012–2013 55 CR - 170 2012–2014 55 CR SWITCH TA - 170>130 2012 55 MICRO SWITCH TA - 160>120 2012–2014 55 R - 160 2012–2014 55 R - 170 2012 888 CR 2012–2014 55 55 RC3 EVO TITANIUM V2 -170 2013–2014 | OverviewCatalogueParts lists | ||

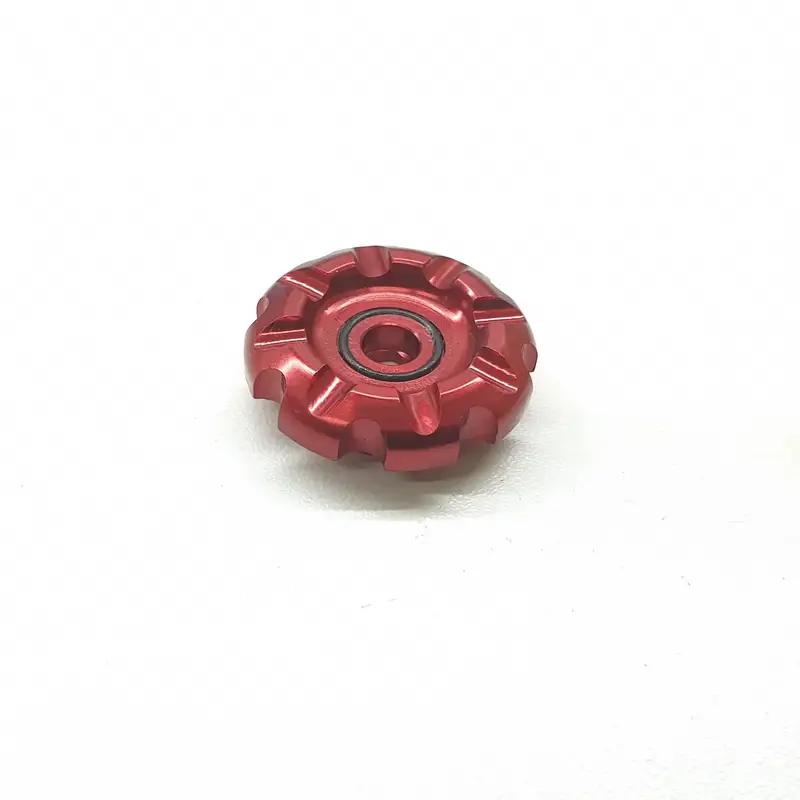

 | 8501454 | 55 RC3 Rebound Adjuster Knob | 2010 | Red | Rebound |
Fits: 44 · 4X · 55 (2010) 4X WC 2007 4X World Cup 2008 55 2008–2014 44 2009–2014 4X 2009–2012 44 Micro STA 2015–2016 55 CR 2015–2016 | OverviewShopParts lists | ||

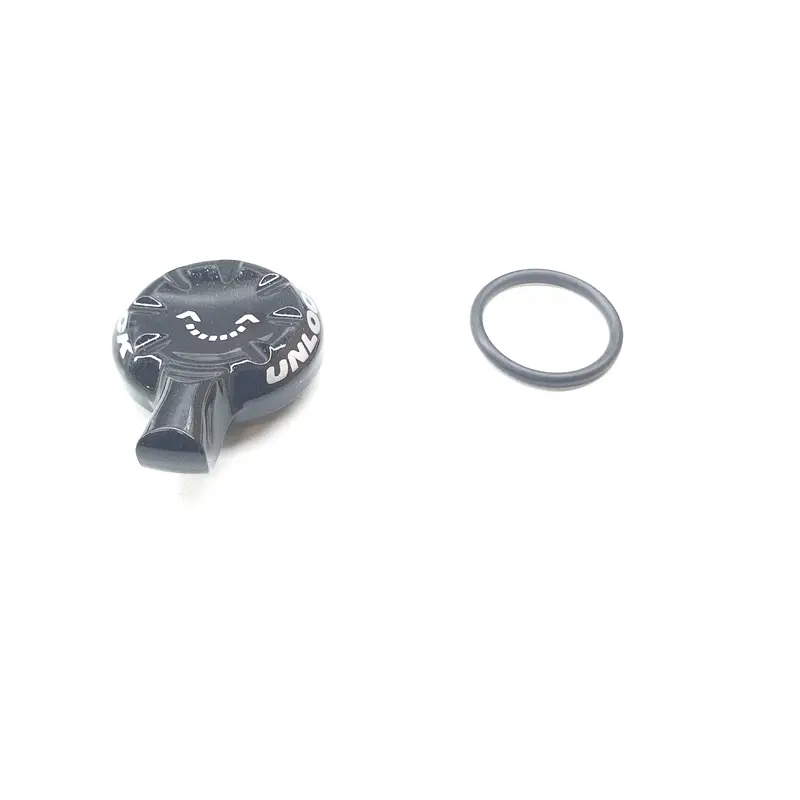

 | 8501457P | Corsa 22 - 33 - 44 RLO Knob | 2010 | Black | Lock-out |
Fits: 22 · 33 · 44 · Corsa (2010–2012) 22 2010 33 2010 44 2010–2012 44 44 RC3 TITANIUM 2010 44 29" MICRO TI - 100 2010–2012 44 29" MICRO TI - 120 2010–2012 44 29" MICRO TI - 140 2010–2012 44 29" MICRO TI RC - 100 2010–2012 44 29" MICRO TI RC - 120 2010–2012 44 29" MICRO TI RC - 140 2010–2012 44 MICRO TI - 120 2010 44 MICRO TI - 140 2010 44 MICRO TI RC - 120 2010 44 MICRO TI RC - 140 2010 CORSA MICRO TI 2010 Corsa 2010–2011 44 44 RC3 TITANIUM - 150 2011–2012 44 MICRO TI - 150 2011–2012 44 MICRO TI RC - 150 2011 44 Micro Ti - 130 2011 44 LR SWITCH TA - 130 2012 44 LR SWITCH TA - 150>120 2012 44 MICRO SWITCH TA - 130 2012 44 MICRO SWITCH TA - 150>120 2012 44 MICRO SWITCH TA RC - 150>120 2012 Corsa Superleggera 2012 | OverviewCatalogueParts lists | ||

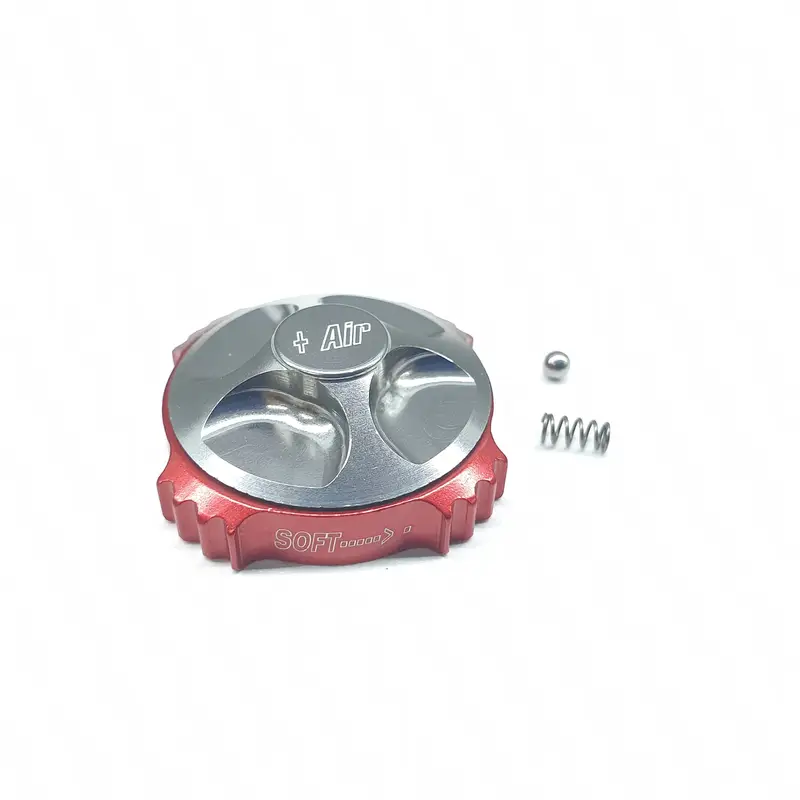

 | 8501465 | Air Preload Adjuster 44 - 55 Micro Assy | 2010+ | Red · Silver | Preload · Air |
Fits: 44 · 55 (2010) 44 2010 44 44 RC3 TITANIUM 2010 44 29" MICRO TI - 100 2010 44 29" MICRO TI - 120 2010 44 29" MICRO TI - 140 2010 44 29" MICRO TI RC - 100 2010 44 29" MICRO TI RC - 120 2010 44 29" MICRO TI RC - 140 2010 44 MICRO TI - 120 2010 44 MICRO TI - 140 2010 44 MICRO TI RC - 120 2010 44 MICRO TI RC - 140 2010 55 2010 55 55 RC3 TITANIUM - 160 2010 55 RC3 TITANIUM - 160 2010 55 RS - 140 2010 55 RS - 160 2010 55 TST2 Coil 2010 | OverviewCatalogueParts lists | ||

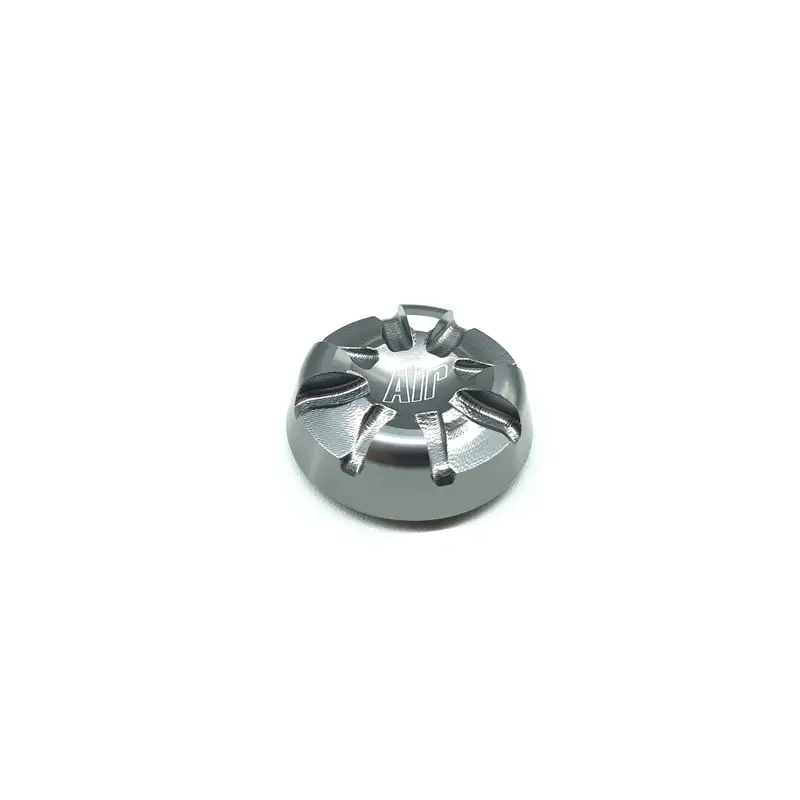

 | 549199A 549199>A | Adj. Knob Air Marathon Replaces SLV Upper w. Rubber | 2011 | Silver | Air |
Fits: 320 · 4X · Corsa (2011–2018) 4X WC 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 4X World Cup 2008 Corsa SL WC 2008 4X 2009–2012 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 320 2014 320 LCR 2015–2017 320 LR 2015–2017 Corsa LR 2015–2016 | OverviewCatalogueParts lists | ||

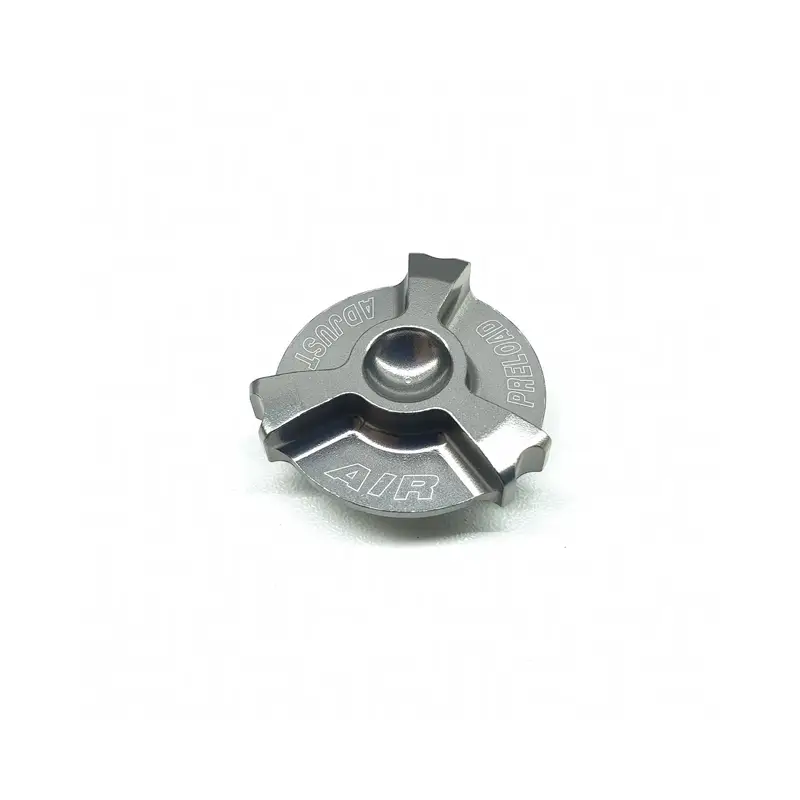

 | 549200 | Adj. Knob Air 55 - 66 - 888 | 2011 | Silver | Air |
Fits: 55 · 66 · 888 (2008–2015) 888 2004–2015 888 R 2004–2005 888 RR 2004 888 RT 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005 66 RC2X 2006–2007 66 SL 2006 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 66 RC2+E 2007 66 SL 1 2007 888 RCv 2007 888 SL 2007 55 2008–2014 66 2008–2012 55 CR 2015–2016 | OverviewCatalogueParts lists | ||
 | 549205 | Knob SLV Upper Air Assist RC3 EVO Knob SLV | 2011 | Silver | Air |
Fits: 44 · 4X · 55 · 66 (2011–2014) 66 R 2005 66 RC 2005 66 VF 2005–2006 66 RC2X 2006–2007 66 SL 2006 4X WC 2007 66 RC2+E 2007 66 SL 1 2007 4X World Cup 2008 55 2008–2014 66 2008–2012 44 2009–2014 4X 2009–2012 44 Micro STA 2015–2016 55 CR 2015–2016 | OverviewCatalogueParts lists | ||

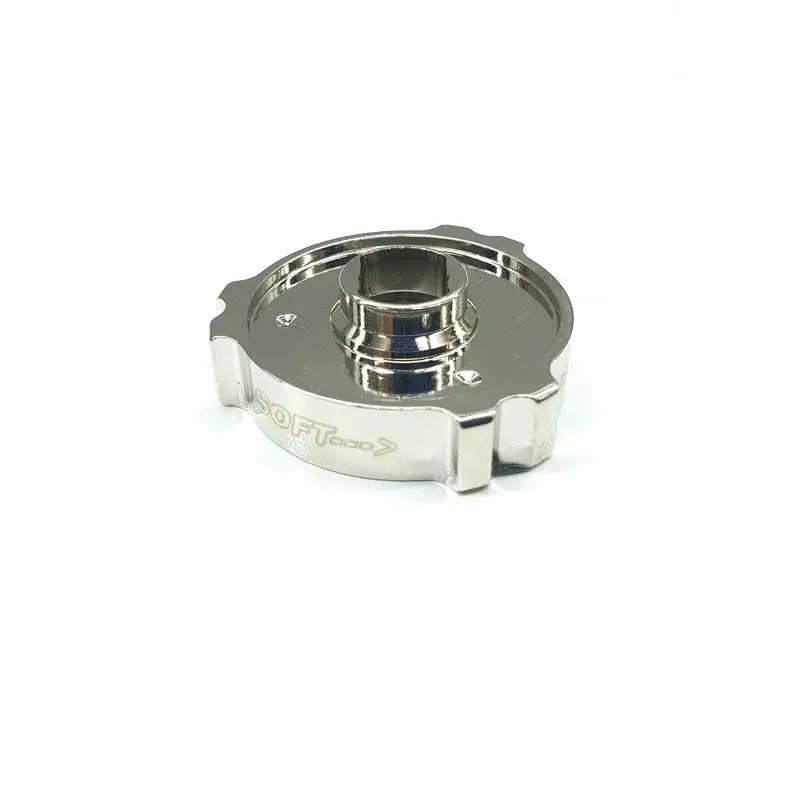

 | 549214 | Volume Adj. Knob SLV 888 | 2011 | Silver | Air |
Fits: 888 (2011–2014) 888 2011–2014 888 RC3 EVO 2011 888 RC3 EVO TITANIUM 2011 888 RV 35mm 2011–2012 888 RV 35mm - 170 - ELMOTO 2011–2012 888 CR 2012–2014 | OverviewCatalogueParts lists | ||

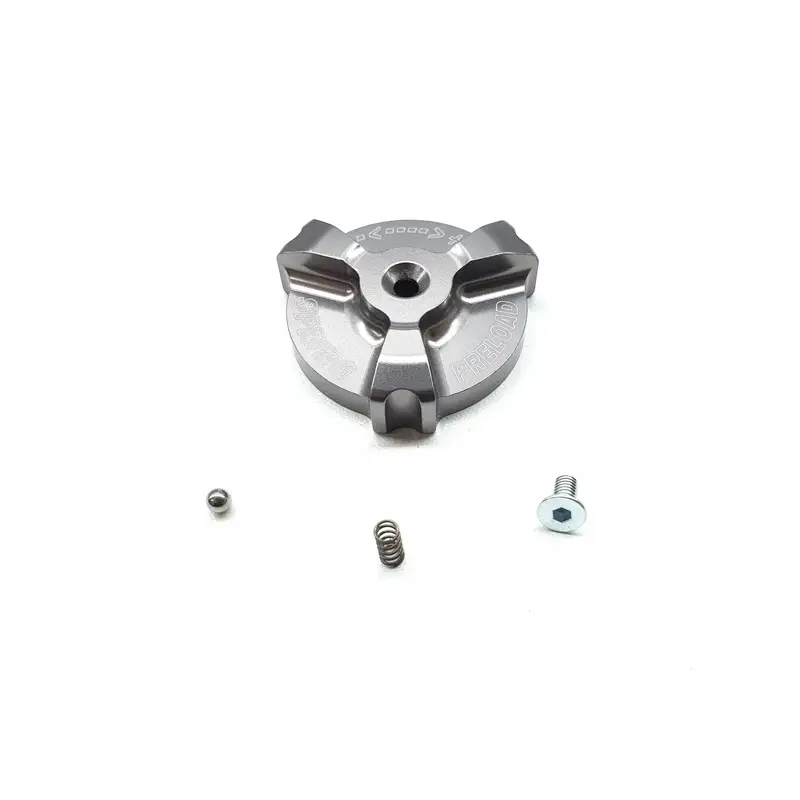

 | 8501504P 8501504 | Upper Mech 888 - 66 RC3 EVO Pr. Knob | 2011 | Silver | Preload |
Fits: 66 · 888 (2011–2015) 66 2011–2012 66 66 RC3 EVO 2011–2012 66 66 RC3 EVO TITANIUM 2011–2012 66 RC3 EVO 2011 66 RC3 EVO TITANIUM 2011 888 2011–2015 888 RC3 EVO 2011 888 RC3 EVO TITANIUM 2011 888 RV 35mm 2011–2012 888 RV 35mm - 170 - ELMOTO 2011–2012 888 CR 2012–2014 888 CR - 180 2015 888 CR - 200 2015 | OverviewCatalogueParts lists | ||

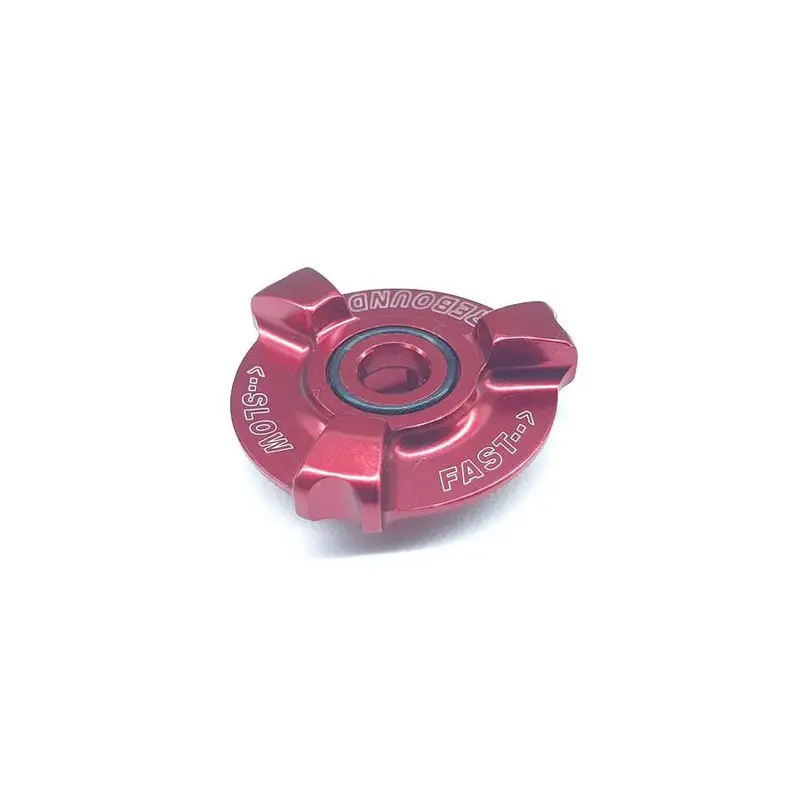

 | 8501506P 8501506/P | 66 RC3 Rebound Knob | 2011 | Red | Rebound |
Fits: 66 (2011–2014) 66 2011–2012 66 66 RC3 EVO 2011–2012 66 66 RC3 EVO TITANIUM 2011–2012 66 RC3 EVO 2011 66 RC3 EVO TITANIUM 2011 | OverviewCatalogueParts lists | ||

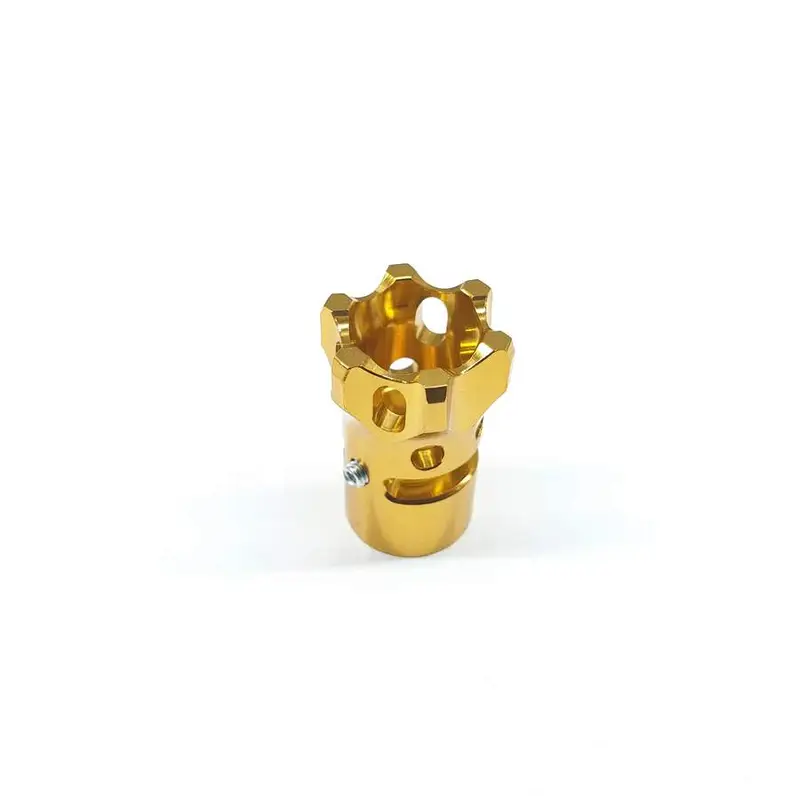

 | 8501515 | RC3 Bottom Knob Group 44 | 2011 | Gold |
Fits: 44 (2011–2012) 44 2009–2014 44 44 RC3 TITANIUM - 150 2011–2012 44 29" MICRO TI - 100 2011–2012 44 29" MICRO TI - 120 2011–2012 44 29" MICRO TI - 140 2011–2012 44 29" MICRO TI RC - 100 2011–2012 44 29" MICRO TI RC - 120 2011–2012 44 29" MICRO TI RC - 140 2011–2012 44 MICRO TI - 150 2011–2012 44 MICRO TI RC - 150 2011 44 Micro Ti - 130 2011 44 LR SWITCH TA - 130 2012 44 LR SWITCH TA - 150>120 2012 44 MICRO SWITCH TA - 130 2012 44 MICRO SWITCH TA - 150>120 2012 44 MICRO SWITCH TA RC - 150>120 2012 44 Micro STA 2015–2016 | OverviewShopCatalogueParts lists | |||

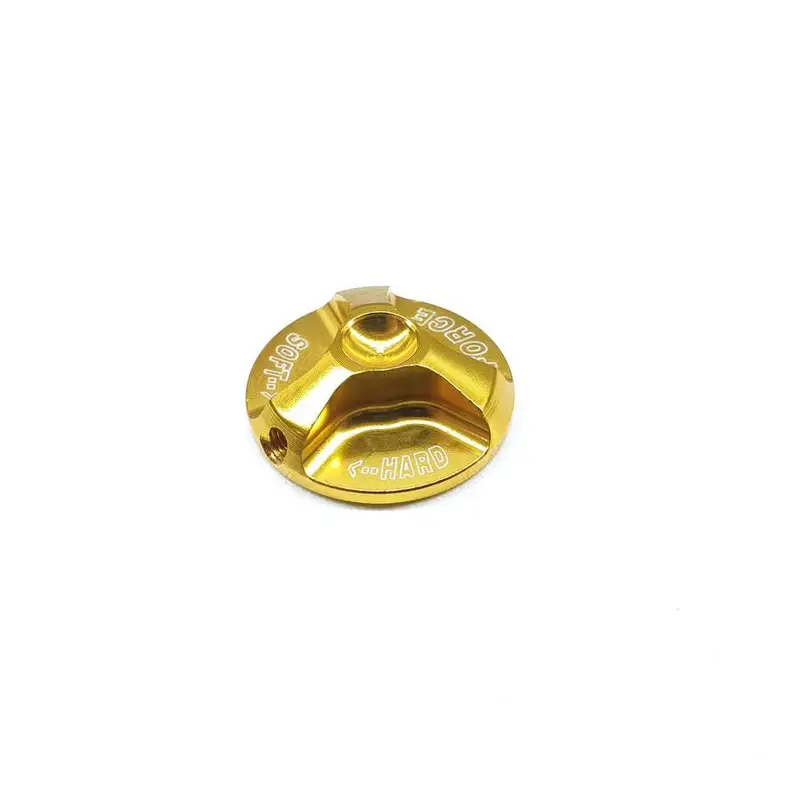

 | 8501520R | TST MICRO GATE KNOB 44 55 | 2011 | Gold | Lock-out |
Fits: 44 · 55 (2011) 44 2011 44 44 RC3 TITANIUM - 150 2011 44 29" MICRO TI - 100 2011 44 29" MICRO TI - 120 2011 44 29" MICRO TI - 140 2011 44 29" MICRO TI RC - 100 2011 44 29" MICRO TI RC - 120 2011 44 29" MICRO TI RC - 140 2011 44 MICRO TI - 150 2011 44 MICRO TI RC - 150 2011 44 Micro Ti - 130 2011 55 2011 55 55 RC3 TITANIUM - 160 2011 55 RC3 TITANIUM - 160 2011 55 TST2 COIL 2011 55RS 2011 | OverviewCatalogueParts lists | ||

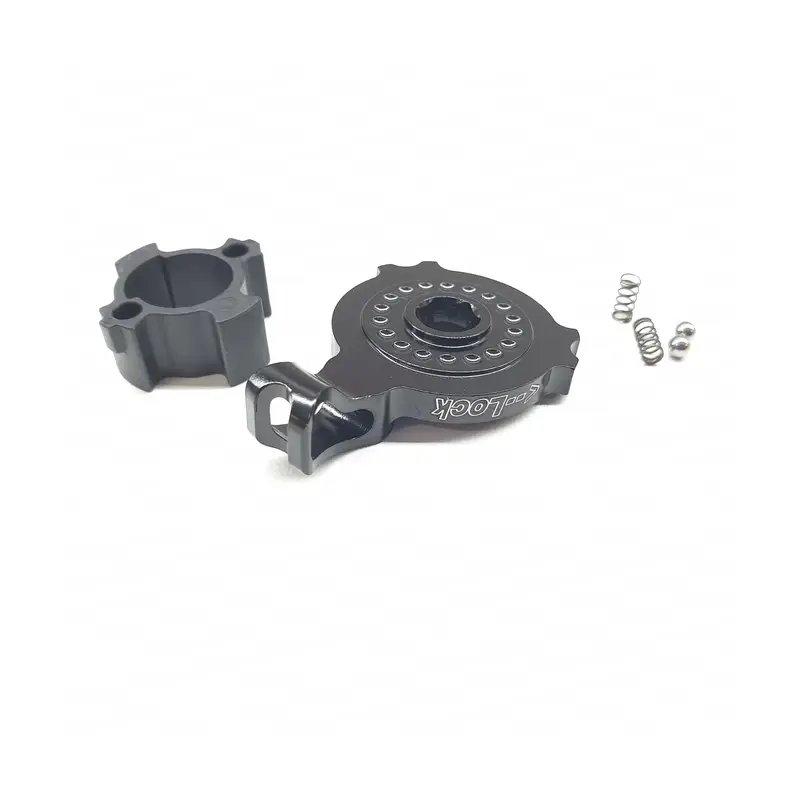

 | 8501521P | TST MICRO KNOB 44 - 55 | 2011 | Black |
Fits: 44 · 55 (2011–2015) 44 2011–2014 44 44 RC3 TITANIUM - 150 2011–2012 44 29" MICRO TI - 100 2011–2012 44 29" MICRO TI - 120 2011–2012 44 29" MICRO TI - 140 2011–2012 44 29" MICRO TI RC - 100 2011–2012 44 29" MICRO TI RC - 120 2011–2012 44 29" MICRO TI RC - 140 2011–2012 44 MICRO TI - 150 2011–2012 44 MICRO TI RC - 150 2011 44 Micro Ti - 130 2011 55 2011–2014 55 55 RC3 TITANIUM - 160 2011 55 RC3 TITANIUM - 160 2011 55 TST2 COIL 2011 55RS 2011 44 LR SWITCH TA - 130 2012 44 LR SWITCH TA - 150>120 2012 44 MICRO SWITCH TA - 130 2012 44 MICRO SWITCH TA - 150>120 2012 44 MICRO SWITCH TA RC - 150>120 2012 55 55 RC3 EVO TITANIUM -170 2012 55 CR - 150 2012–2013 55 CR - 170 2012–2015 55 CR SWITCH TA - 170>130 2012 55 MICRO SWITCH TA - 160>120 2012–2014 55 R - 160 2012–2015 55 R - 170 2012 44 29" MICRO SWITCH TA - 140>110 2013–2014 55 55 RC3 EVO TITANIUM V2 -170 2013–2014 44 MICRO SWITCH TA 29" - 140>110 2015 44 Micro STA 2015 55 CR 2015 55 CR SLOPE - 120 2015 | OverviewCatalogueParts lists | |||

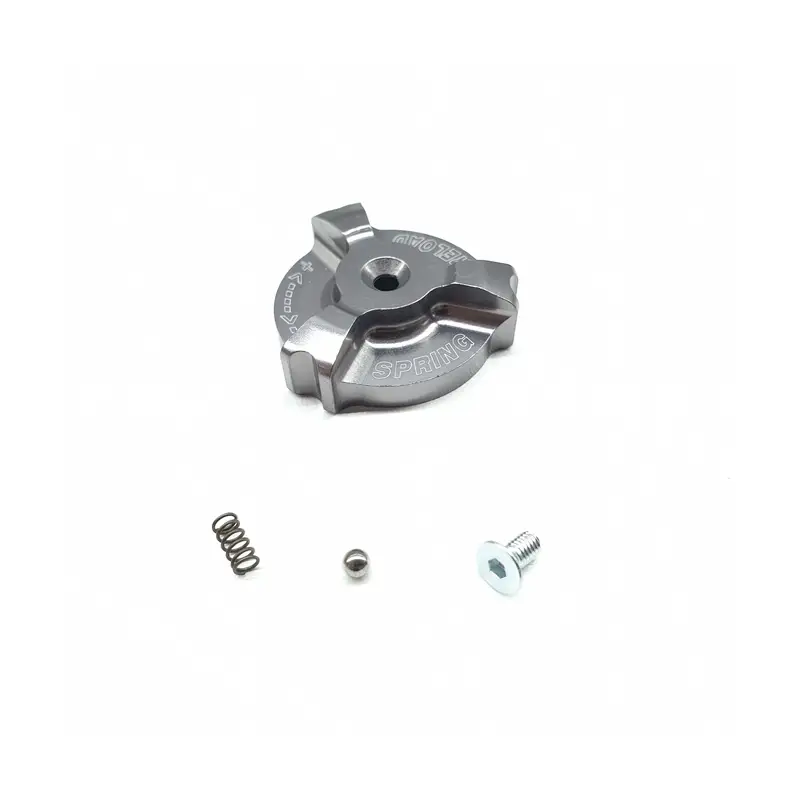

 | 8501524P 8501524R | 55 Preload Knob | 2011 | Silver | Preload |
Fits: 55 (2011–2014) 55 2011–2014 55 55 RC3 TITANIUM - 160 2011 55 RC3 TITANIUM - 160 2011 55 TST2 COIL 2011 55RS 2011 55 55 RC3 EVO TITANIUM -170 2012 55 CR - 150 2012–2013 55 CR - 170 2012–2014 55 CR SWITCH TA - 170>130 2012 55 MICRO SWITCH TA - 160>120 2012–2014 55 R - 160 2012–2014 55 R - 170 2012 55 55 RC3 EVO TITANIUM V2 -170 2013–2014 | OverviewCatalogueParts lists | ||

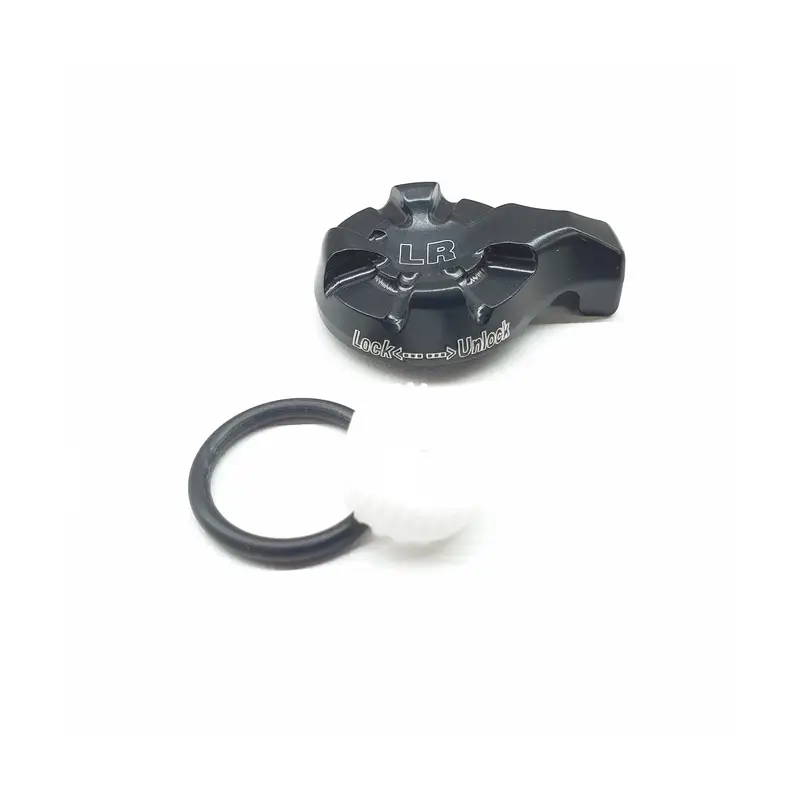

 | 8501546R | DAMPER COMP.KNOB GR.SUP.LR Alloy | 2011 | Black |
Fits: 320 · Corsa (2011–2018) Corsa SL WC -100 2007 Corsa SL WC -80 2007 Corsa SL WC 2008 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 320 2014 320 LCR 2015–2017 320 LR 2015–2017 Corsa LR 2015–2016 | OverviewCatalogueParts lists | |||

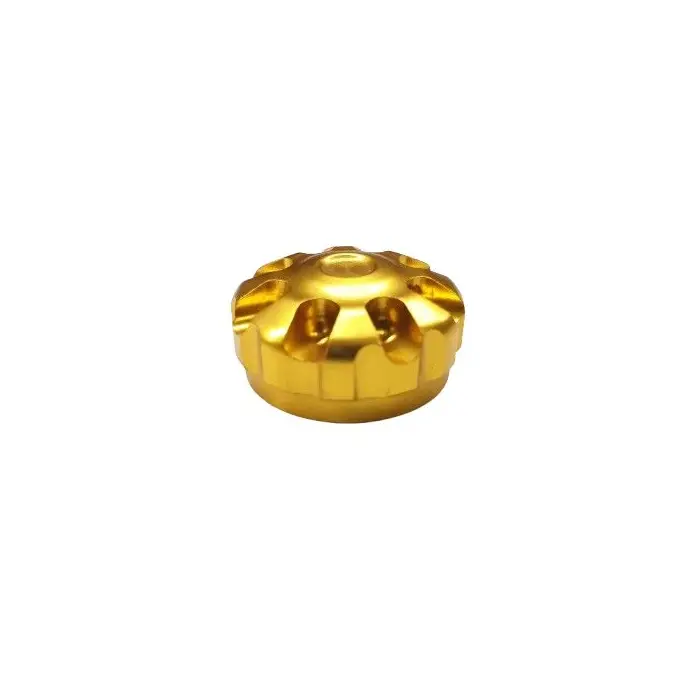

 | — | Compression Knob 55 RC3 | 2011 | Gold | Compression | Overview | |||

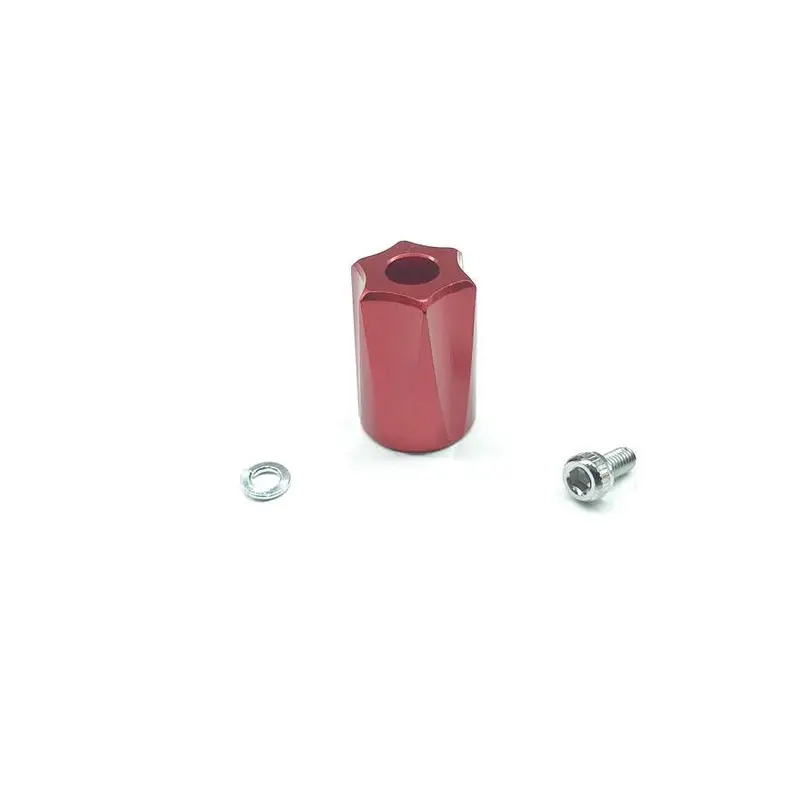

 | 8501522 | 4X 44 55 TST Micro Reb. Knob | 2011+ | Red | Rebound |
Fits: 44 · 55 (2011–2012) 44 2011–2012 44 44 RC3 TITANIUM - 150 2011–2012 44 29" MICRO TI - 100 2011–2012 44 29" MICRO TI - 120 2011–2012 44 29" MICRO TI - 140 2011–2012 44 29" MICRO TI RC - 100 2011–2012 44 29" MICRO TI RC - 120 2011–2012 44 29" MICRO TI RC - 140 2011–2012 44 MICRO TI - 150 2011–2012 44 MICRO TI RC - 150 2011 44 Micro Ti - 130 2011 55 2011–2012 55 55 RC3 TITANIUM - 160 2011 55 RC3 TITANIUM - 160 2011 55 TST2 COIL 2011 55RS 2011 44 LR SWITCH TA - 130 2012 44 LR SWITCH TA - 150>120 2012 44 MICRO SWITCH TA - 130 2012 44 MICRO SWITCH TA - 150>120 2012 44 MICRO SWITCH TA RC - 150>120 2012 55 55 RC3 EVO TITANIUM -170 2012 55 CR - 150 2012 55 CR - 170 2012 55 CR SWITCH TA - 170>130 2012 55 MICRO SWITCH TA - 160>120 2012 55 R - 160 2012 55 R - 170 2012 | OverviewCatalogueParts lists | ||
 | 8501527 | Lower TST2 Rebound Knob | 2011+ | Red | Rebound | 55 2008–2014 44 2009–2014 44 Micro STA 2015–2016 55 CR 2015–2016 | OverviewShopParts lists | ||

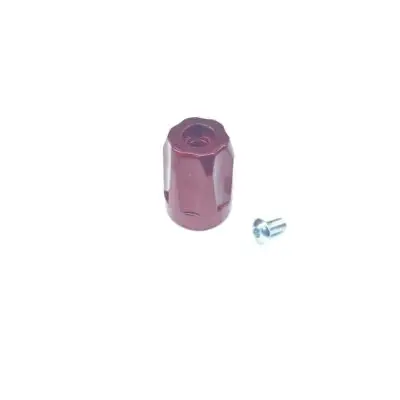

 | 8501508 549067 · 8501508/P | Lower Rebound Knob 66888 | 2011–2018 | Red | Rebound |
Fits: 66 · 888 · DJ · Dj Slope (2011–2018) Dj1-110 2002 Dj2-130 2002 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Dirt Jumper 1 2003–2005 MX Pro 2003–2006 MX Pro Air 2003–2005 MX Pro Coil 2003–2005 MX Pro+ 2003–2006 Z1 Drop Off 2003 Z1 Drop-Off 2003 888 2004–2015 888 R 2004–2005 888 RR 2004 888 RT 2004 Dj1 110 2004 Dj2 2004 Dj3 2004 Street DJ 2004–2005 Street Dj 2004–2005 Z1 DO 1 2004 Z1 Drop-Off 1 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 D J 1 2005 66 RC2X 2006–2007 66 SL 2006 66 VF2 Lt 2006 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 AM 3 2006 DJ 3 Std 2006 Junior T Ext.Reb. 2006 MX Pro Race 2006–2007 MX Pro+Tas 2006 Z1 Sport 2006 Z1 Sport+ 2006 4X Lopes 2007 4X WC 2007 66 RC2+E 2007 66 RCv 2007 66 Rv 2007 66 Rv+ 2007 66 SL 1 2007 66 SL 2 2007 888 RCv 2007 888 Rv 2007 888 SL 2007 AM 2 -160 2007 66 2008–2012 | 📋 2003 DIRTJUMPER 1 110 📋 2003 DIRTJUMPER 1 130 📋 2003 DIRTJUMPER 1 QR 110 📋 2003 DIRTJUMPER 1 QR 130 📋 2003 MX PRO+ETA 105 📋 2003 MX PRO+ETA 85 📋 2003 MX PRO AIR 105 📋 2003 MX PRO AIR 85 📋 2003 MX PRO COIL 105 📋 2003 MX PRO COIL 85 📋 2003 Z1 DROPOFF 📋 2003 Z1 DROPOFF QR
All 124 documents →
| OverviewShopCatalogueParts listsDocuments | |

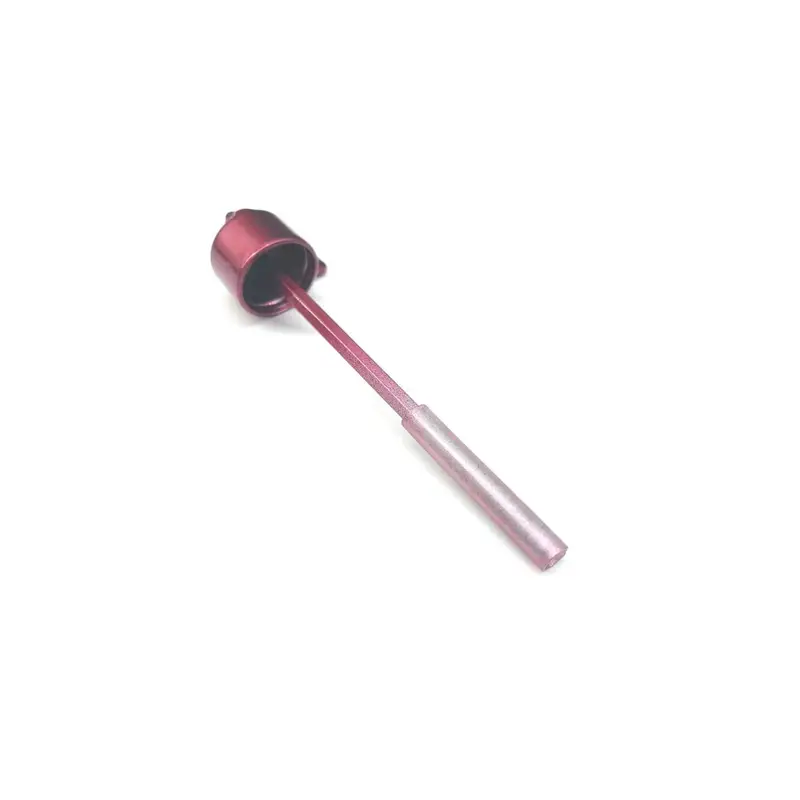

 | 549226 | Lower Rebound Knob CR 55 66 888 | 2012+ | Red | Rebound · Compression |
Fits: 66 · 888 (2012–2018) 55 2008–2014 66 2012 66 66 RC3 EVO 2012 66 66 RC3 EVO TITANIUM 2012 888 2012–2015 888 CR 2012–2014 888 RV 35mm 2012 888 RV 35mm - 170 - ELMOTO 2012 55 CR 2015–2016 888 CR - 180 2015 888 CR - 200 2015 | OverviewShopCatalogueParts lists | ||

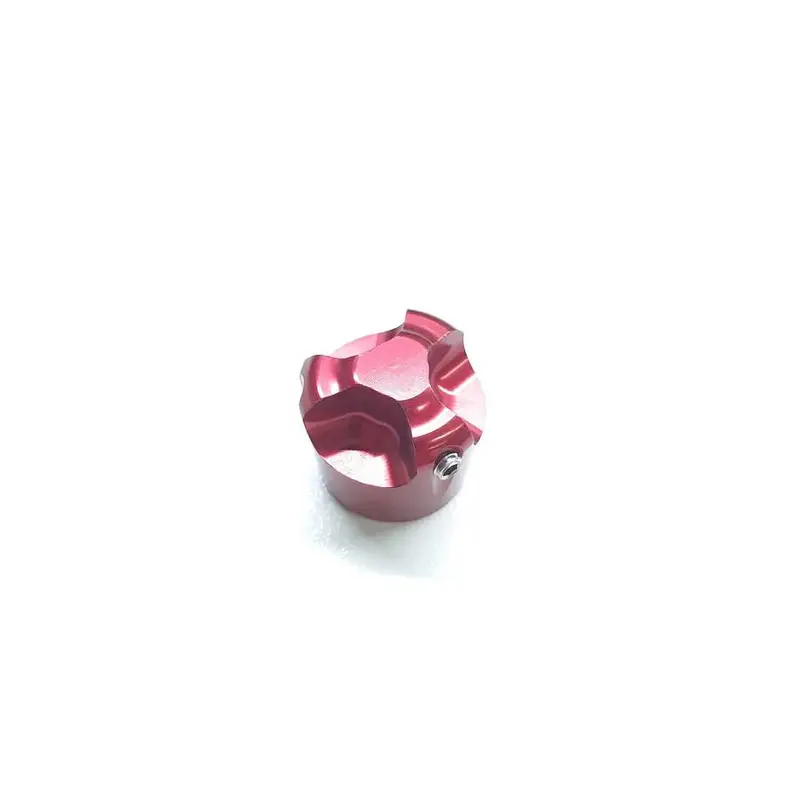

 | 549254 | Knob Lower Rebound TST MV 2 55 350 | 2013 | Red | Rebound |
Fits: 55 (2013–2017) 55 2008–2014 55 55 RC3 EVO TITANIUM V2 -170 2013–2014 55 CR - 150 2013 55 CR - 170 2013–2015 55 MICRO SWITCH TA - 160>120 2013–2014 55 R - 160 2013–2015 55 CR 2015–2016 55 CR SLOPE - 120 2015 | OverviewShopCatalogueParts lists | ||

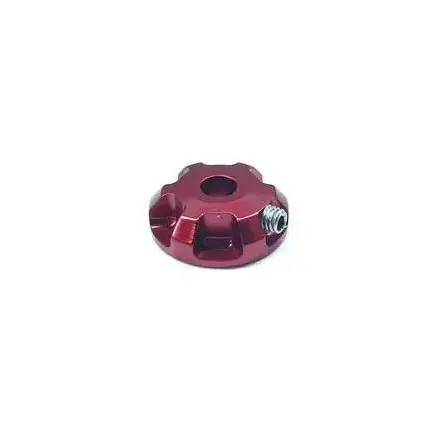

 | 549258 | Knob Lower Rebound 380 | 2014 | Red | Rebound |
Fits: 380 (2014–2018) 55 2008–2014 380 2014 380 380 C2R2 TITANIUM 2014 380 380 C2R2 - 200 2015–2017 380 380 C2R2 TITANIUM - 200 2015–2016 380 380 CR - 200 2015–2017 380 C2R2 2015–2017 380 CR 2015–2017 380 CR - 200 2015–2017 55 CR 2015–2016 380 380 C2R2 TITANIUM -200 2017 | OverviewShopCatalogueParts lists | ||

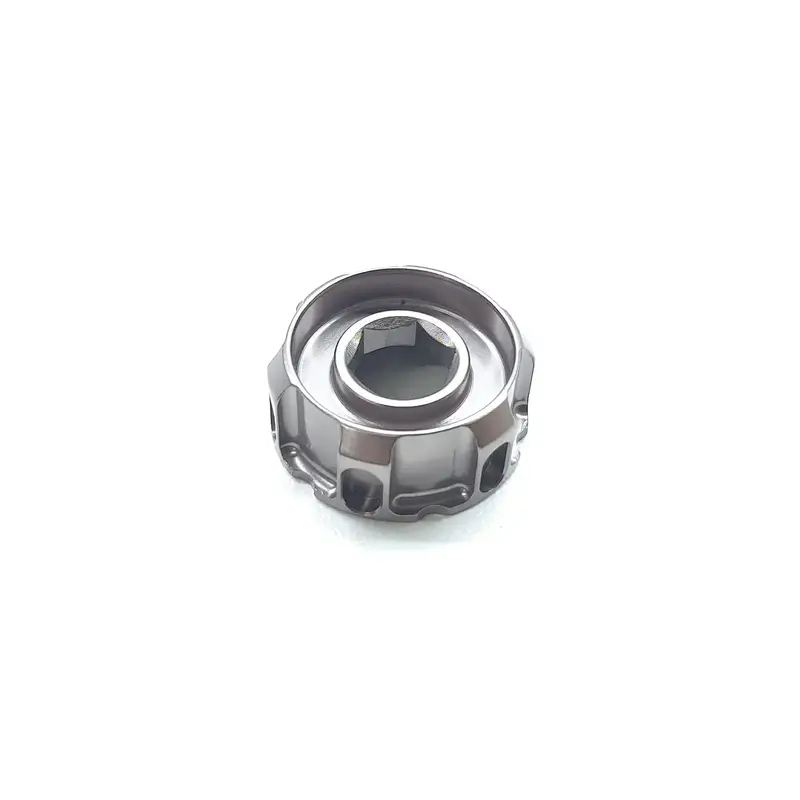

 | 549259P 549259 | 380 Knob Kit BRW Lower HI-Rebound | 2014 | Silver | Rebound |
Fits: 380 (2014–2018) 55 2008–2014 380 2014 380 380 C2R2 TITANIUM 2014 380 380 C2R2 - 200 2015–2017 380 380 C2R2 TITANIUM - 200 2015–2016 380 380 CR - 200 2015–2017 380 C2R2 2015–2017 380 CR 2015–2017 380 CR - 200 2015–2017 55 CR 2015–2016 380 380 C2R2 TITANIUM -200 2017 | OverviewShopCatalogueParts lists | ||

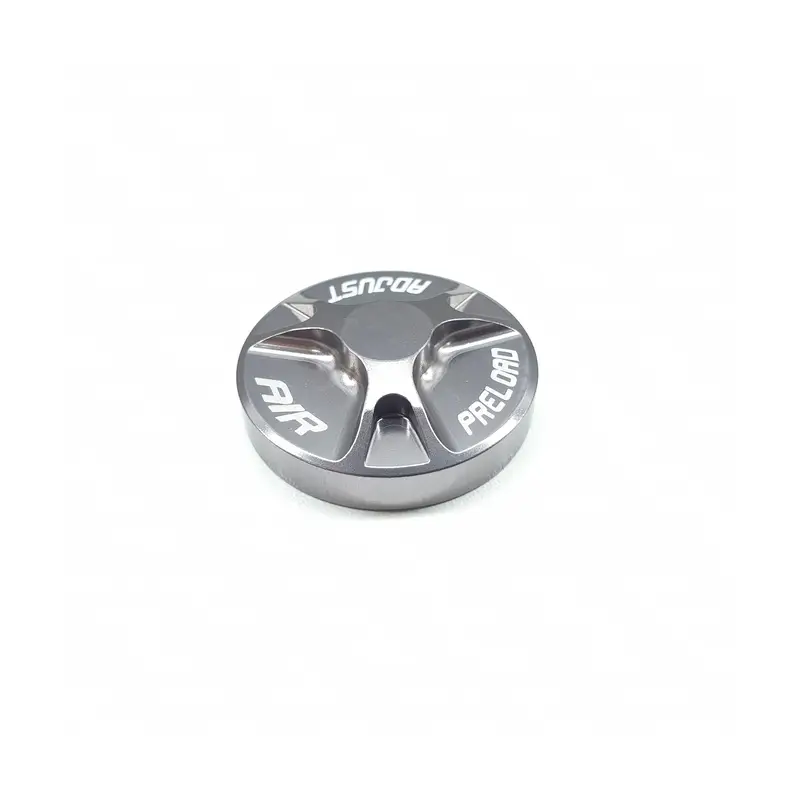

 | 549270P | Knob Kit SLV Upper Air 350 | 2014 | Silver | Air |
Fits: 350 (2014–2017) 350 CR - 160 2014–2017 350 CR 2015–2017 350 CR - 150 2015 350 NCR 2015–2017 350 NCR - 160 2015–2017 350 NCR TITANIUM - 160 2015–2016 350 R 2015–2017 350 R - 140 2015 350 R - 150 2015 350 R - 160 2015–2017 350 NCR TITANIUM - 170 2017 | OverviewCatalogueParts lists | ||

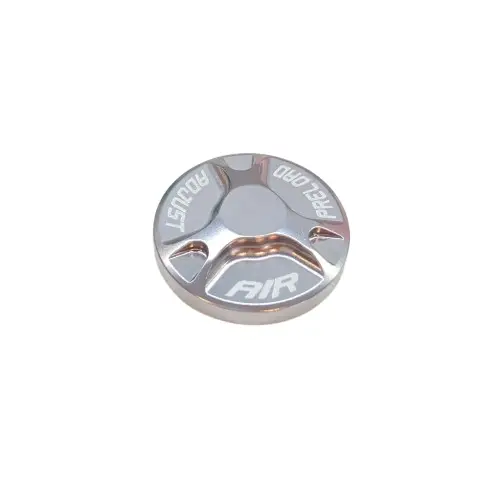

 | 549272P | 320 - 350 SLV upper Air Knob Kit | 2014 | Silver | Air |
Fits: 320 · 350 320 2014 320 LCR 2015–2017 320 LR 2015–2017 350 CR 2015–2017 350 NCR 2015–2017 350 R 2015–2017 | OverviewCatalogueParts lists | ||

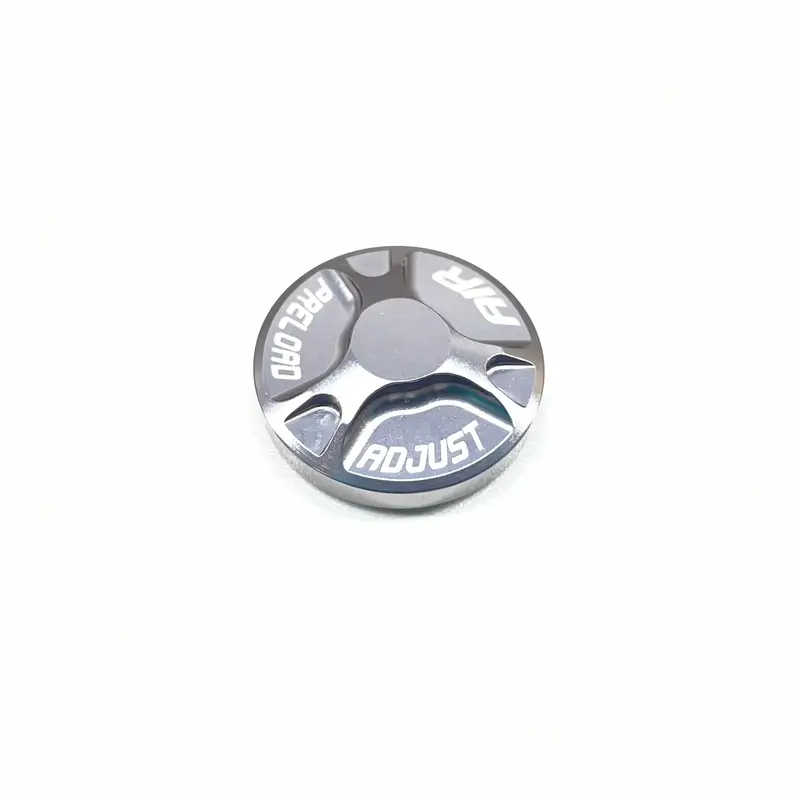

 | — | 320 Air Knob | 2014 | Silver | Air | Overview | |||
 | 549257P | Knob Upper HI-Compression (380) | 2014+ | Red | Compression |
Fits: 380 (2014–2018) 380 2014 380 380 C2R2 TITANIUM 2014 380 380 C2R2 - 200 2015–2017 380 380 C2R2 TITANIUM - 200 2015–2016 380 380 CR - 200 2015–2017 380 C2R2 2015–2017 380 CR 2015–2017 380 CR - 200 2015–2017 380 380 C2R2 TITANIUM -200 2017 | OverviewCatalogueParts lists | ||

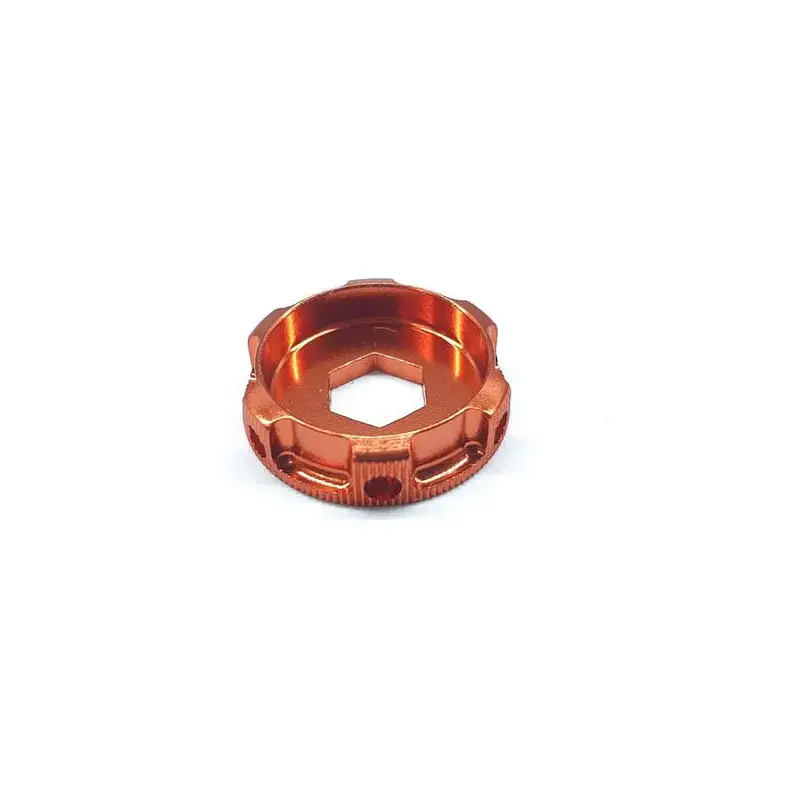

 | 549283P | 053 Knob KIT ORG HI-Compression | 2015 | Red | Compression |
Fits: 53 (2015–2017) | OverviewCatalogue | ||

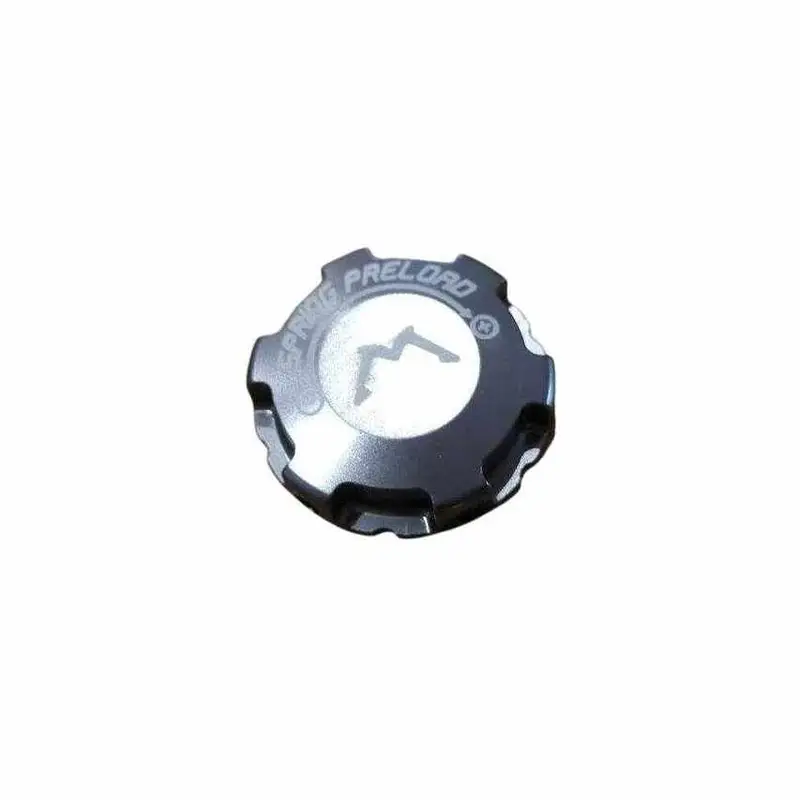

 | 549266 | 380 Preload Knob | 2016 | Silver | Preload | OverviewShop | |||

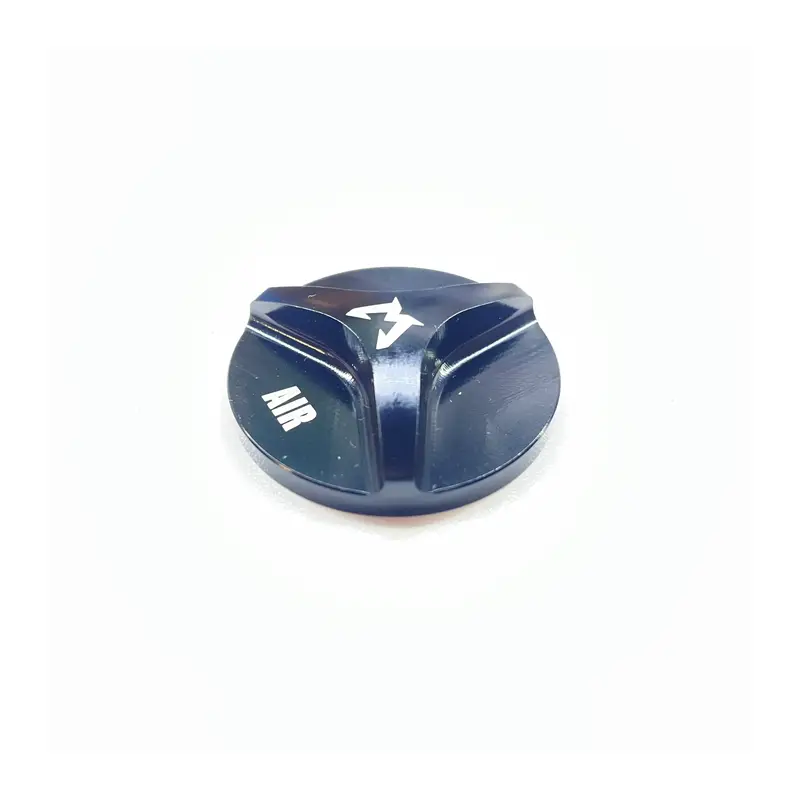

 | — | Z1 - DJ - 58 Air Knob | 2021 | Black | Air | Overview | |||
 | 549143 549143-TW | Top Knob Lock-out TST2 FEE255-32 | Black | Lock-out | 📋 2008 SpareParts | OverviewShopCatalogueDocuments | |||

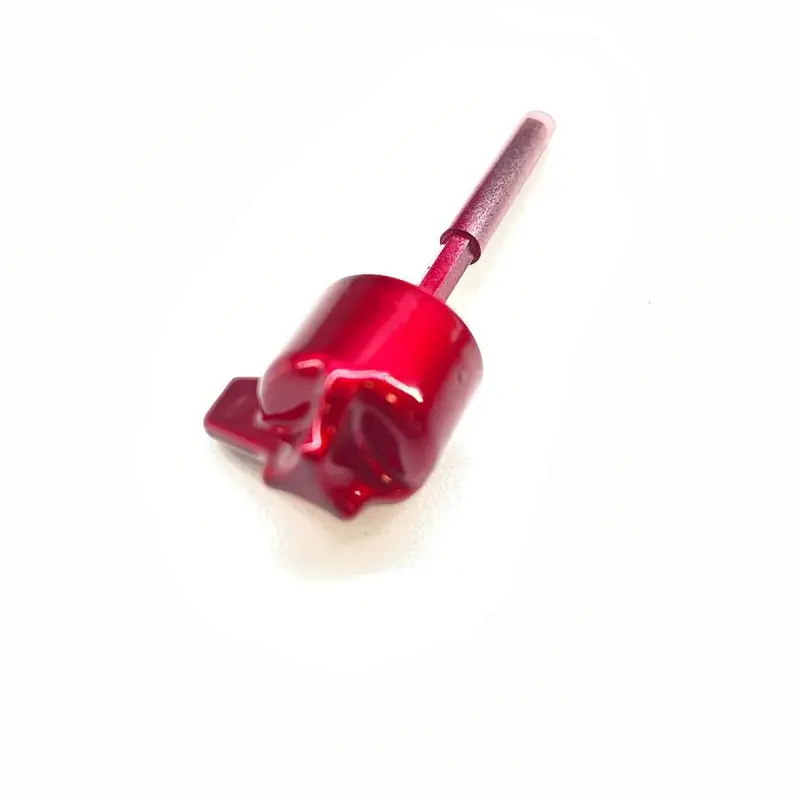

 | 549225 549225/P | Lower Rebound Knob CR 55 | 2008–2016 | Red | Rebound · Compression |
Fits: 55 55 2008–2014 55 CR 2015–2016 | OverviewShopCatalogueParts lists | ||

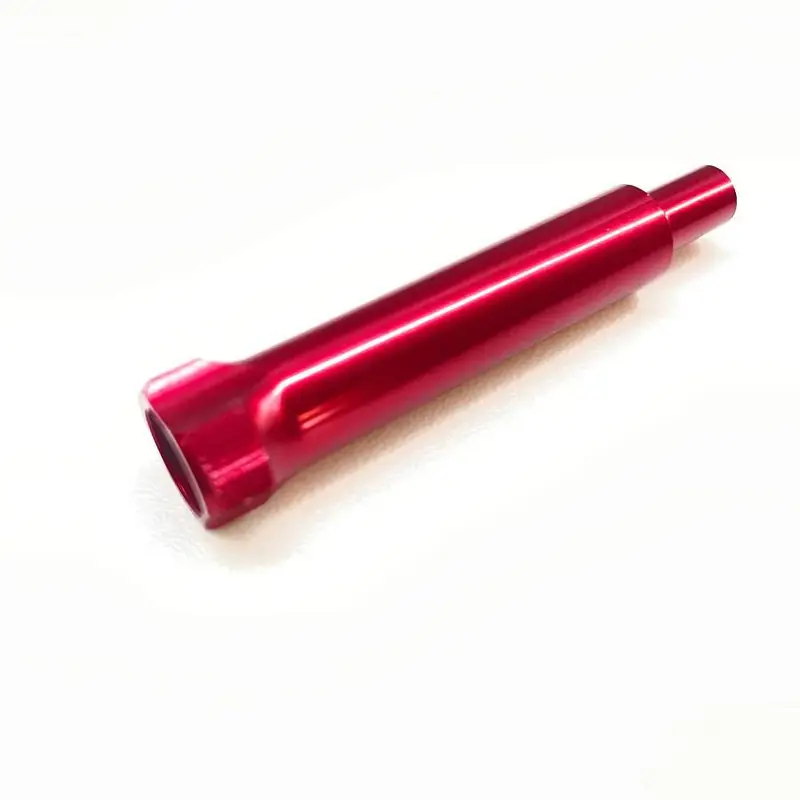

 | 549242 549242/P | Knob Lower Rebound TSTM v2(29) | 2014–2017 | Red | Rebound |
Fits: 320 320 2014 320 LCR 2015–2017 320 LR 2015–2017 | OverviewCatalogueParts lists | ||

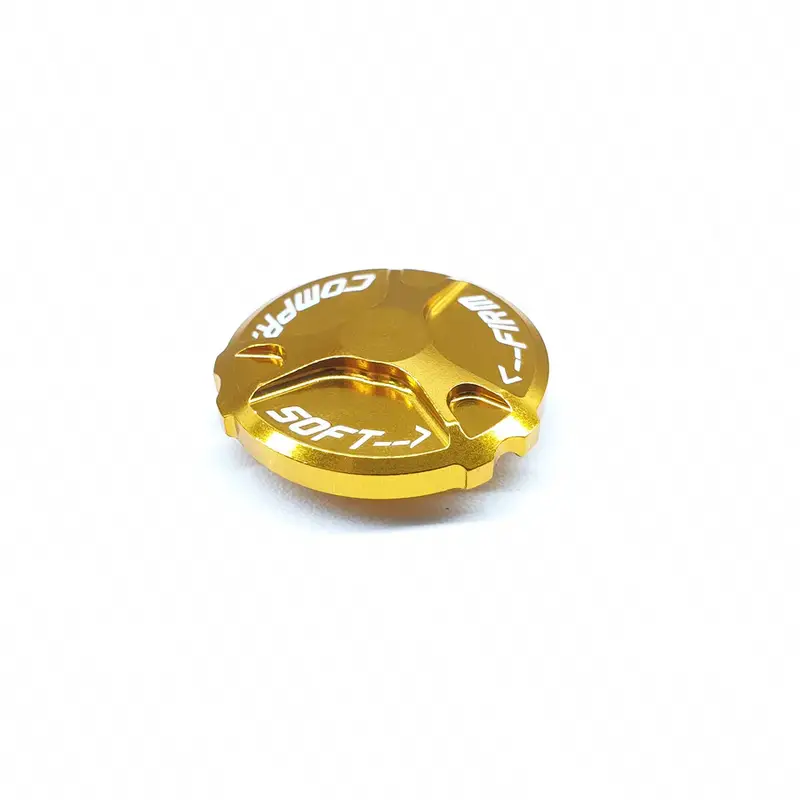

 | 549244P 549243 | KNOB KIT UPPER Compr. LCR NCR RC | 2014–2017 | Gold | Compression |
Fits: 320 · 350 (2014–2017) 320 2014 320 LCR 2015–2017 320 LR 2015–2017 350 CR 2015–2017 350 NCR 2015–2017 350 R 2015–2017 | OverviewCatalogueParts lists | ||

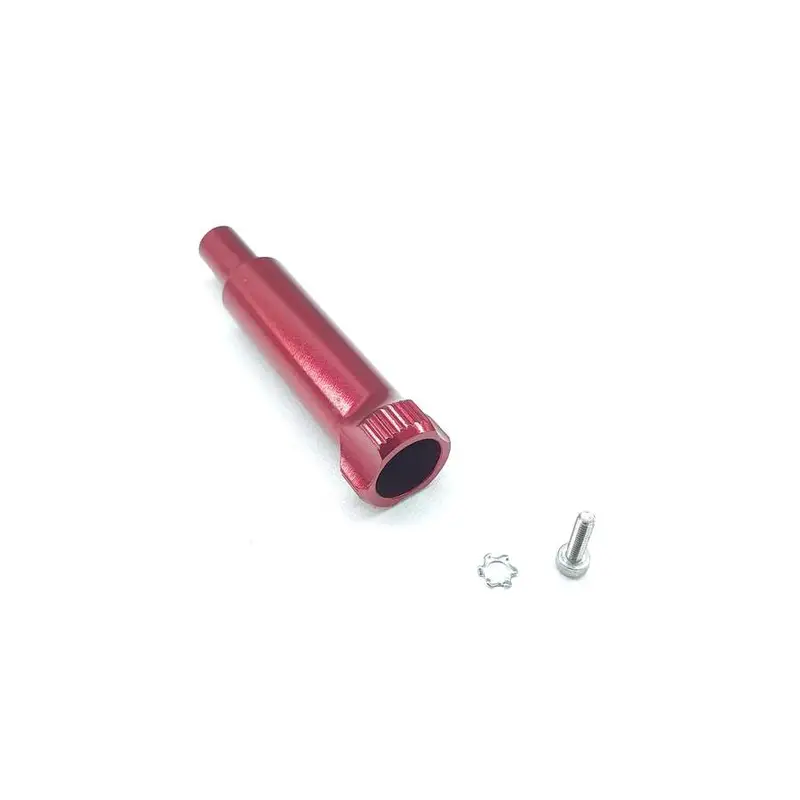

 | 549255 | Knob Lower Rebound TSTM v2 44 | 2013–2015 | Red | Rebound |
Fits: 44 (2013–2015) 44 2013–2014 44 29" MICRO SWITCH TA - 140>110 2013–2014 44 MICRO SWITCH TA 29" - 140>110 2015 44 Micro STA 2015 | OverviewCatalogueParts lists | ||

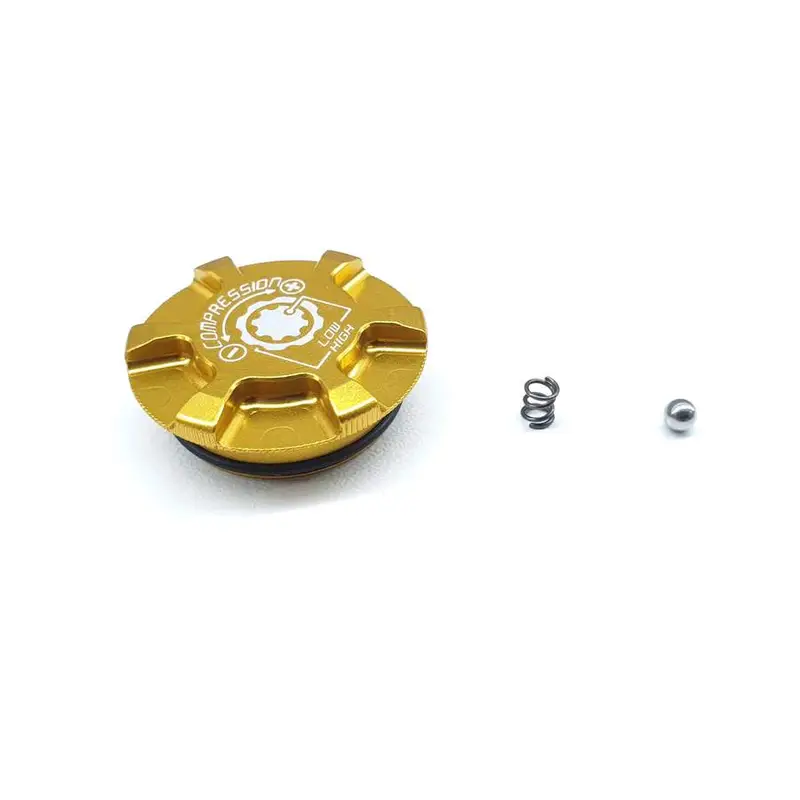

 | 549256P | KNOB KIT UPPER LO-Compr (380) | 2014–2017 | Gold | Compression · Lock-out |
Fits: 380 (2014–2018) 380 2014 380 380 C2R2 TITANIUM 2014 380 380 C2R2 - 200 2015–2017 380 380 C2R2 TITANIUM - 200 2015–2016 380 380 CR - 200 2015–2017 380 C2R2 2015–2017 380 CR 2015–2017 380 CR - 200 2015–2017 380 380 C2R2 TITANIUM -200 2017 | OverviewCatalogueParts lists | ||

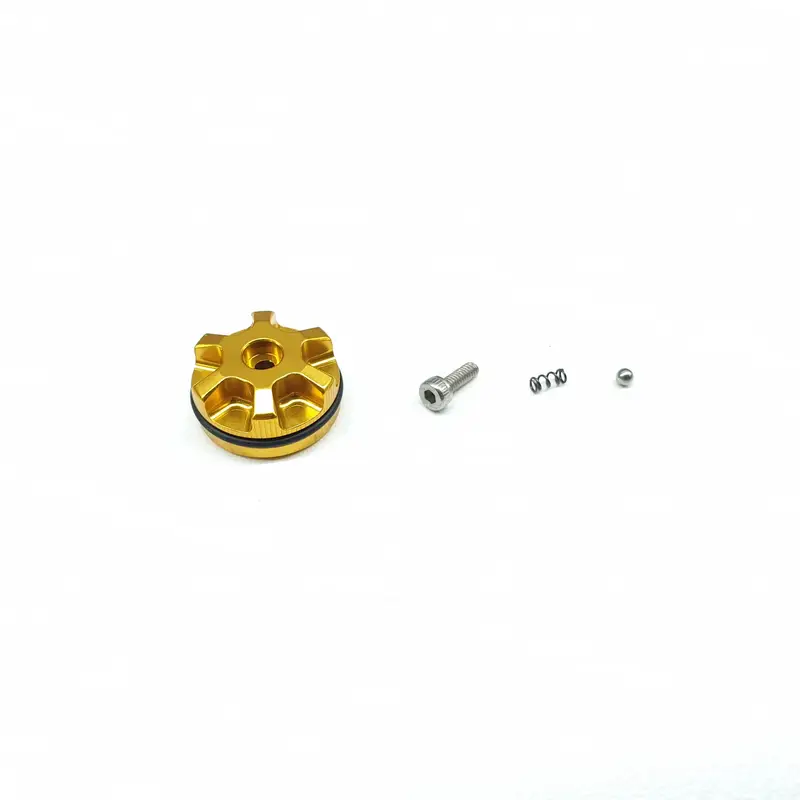

 | 549261P | MOTO SHOCK KNOB KIT LO-Compr | Gold | Compression · Lock-out |
Fits: Moto (2014–2018) | OverviewCatalogue | |||

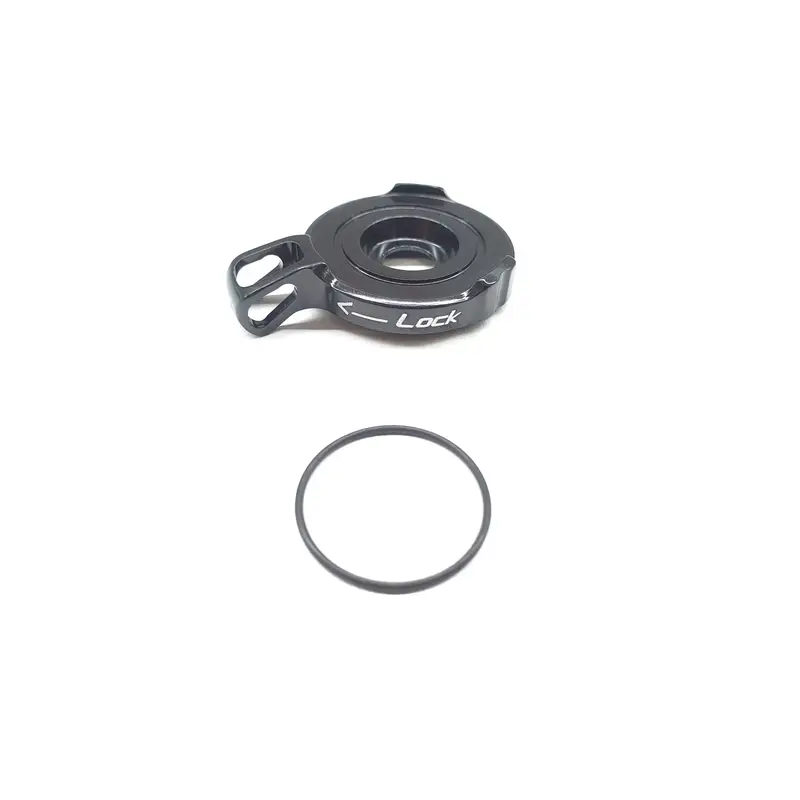

 | 549274 | Knob upper Lock LCR - NCR MAN | 2015–2017 | Black | Lock-out |
Fits: 350 (2015–2017) 350 CR 2015–2017 350 NCR 2015–2017 350 R 2015–2017 | OverviewCatalogueParts lists | ||

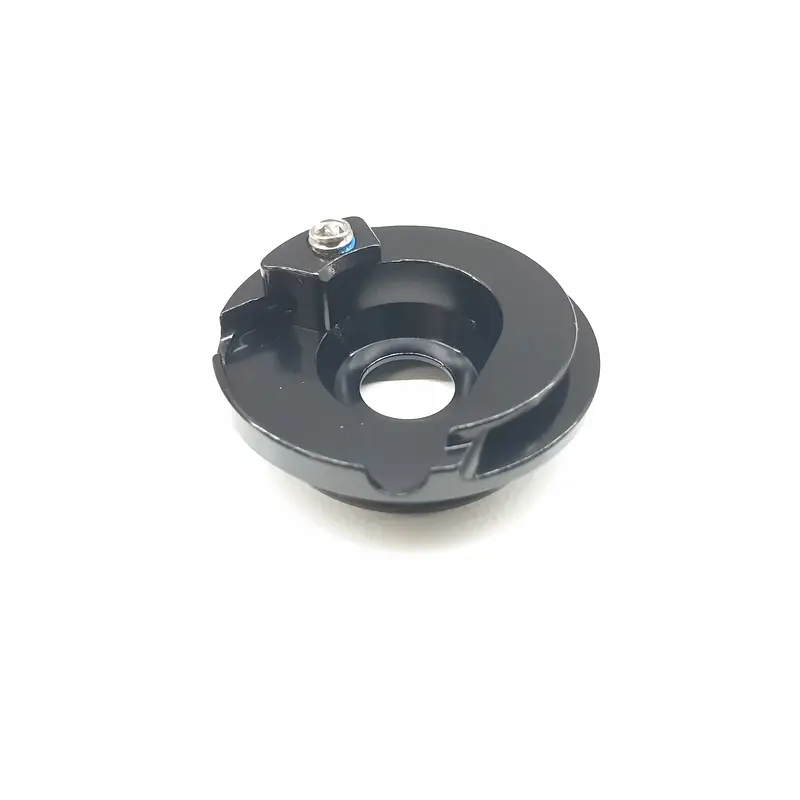

 | 549275 | KNOB KIT UPPER LOCK LCR NCR RC | 2014–2017 | Black | Lock-out |
Fits: 320 · 350 (2014–2017) 320 2014 320 LCR 2015–2017 320 LR 2015–2017 350 CR 2015–2017 350 NCR 2015–2017 350 R 2015–2017 | OverviewCatalogueParts lists | ||

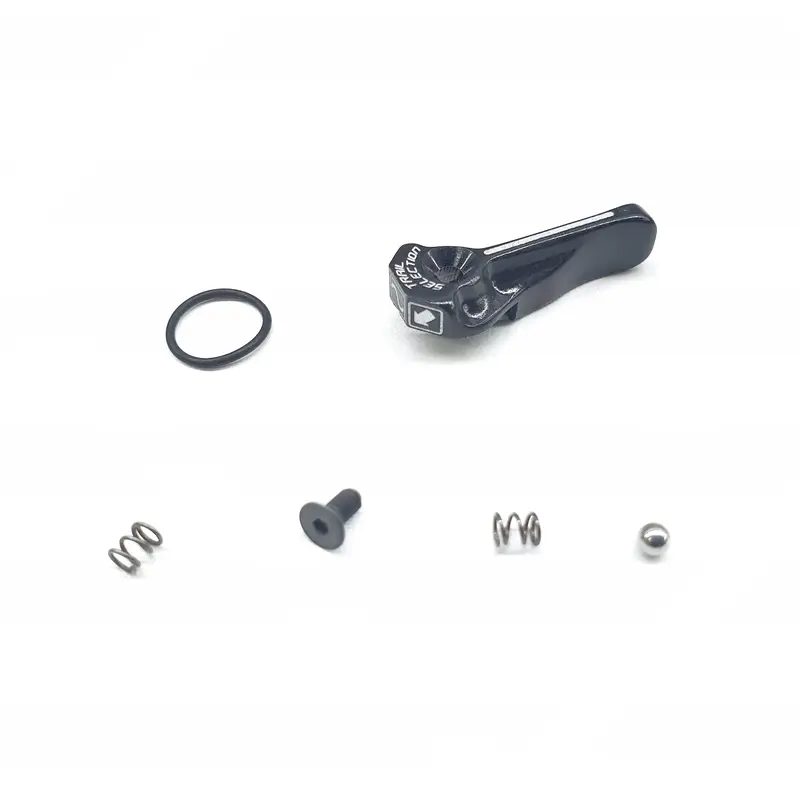

 | 549281P | 053 Shock Knob-KIT URD Trail SEL | Black |
Fits: 53 (2015–2017) | OverviewCatalogue | ||||

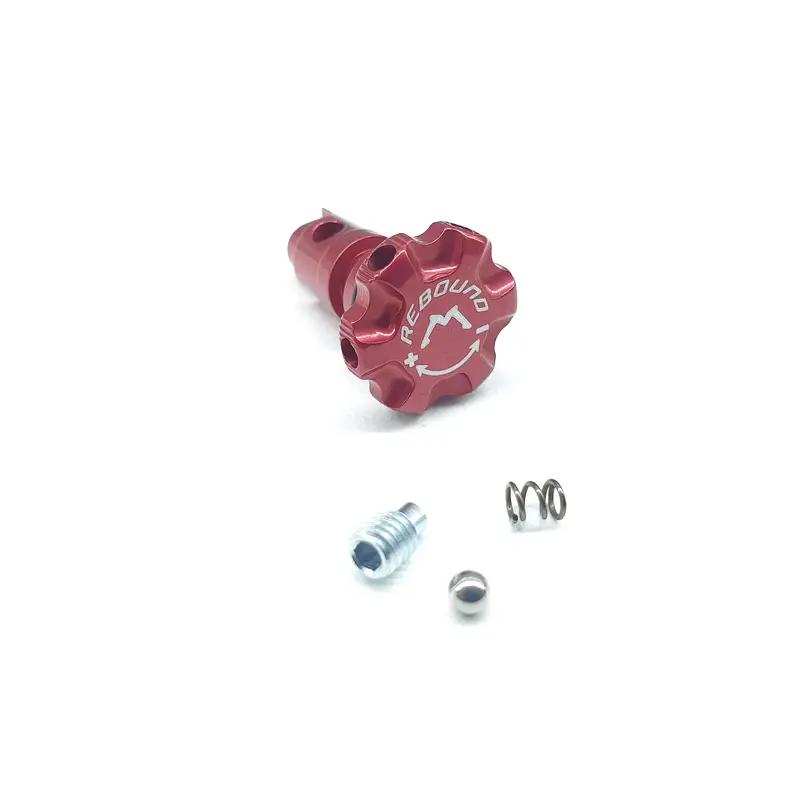

 | 549282P | 053 Shock Knob Kit Rebound | Red | Rebound |
Fits: 53 (2015–2017) | OverviewCatalogue | |||

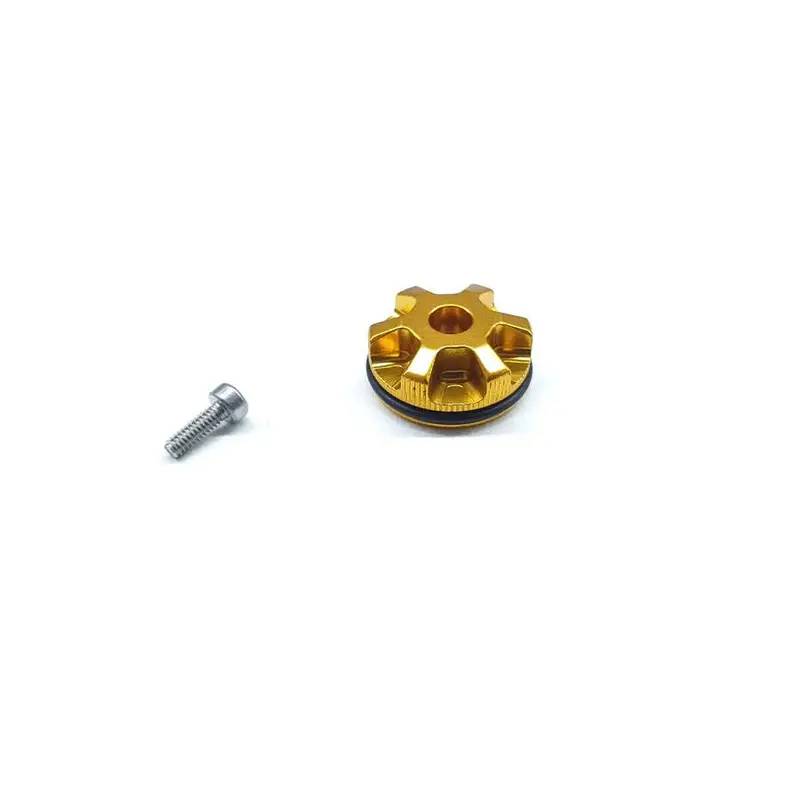

 | 549284P | 053 SHOCK KNOB KIT LO-Compr | Gold | Compression · Lock-out |
Fits: 53 (2015–2017) | OverviewCatalogue | |||

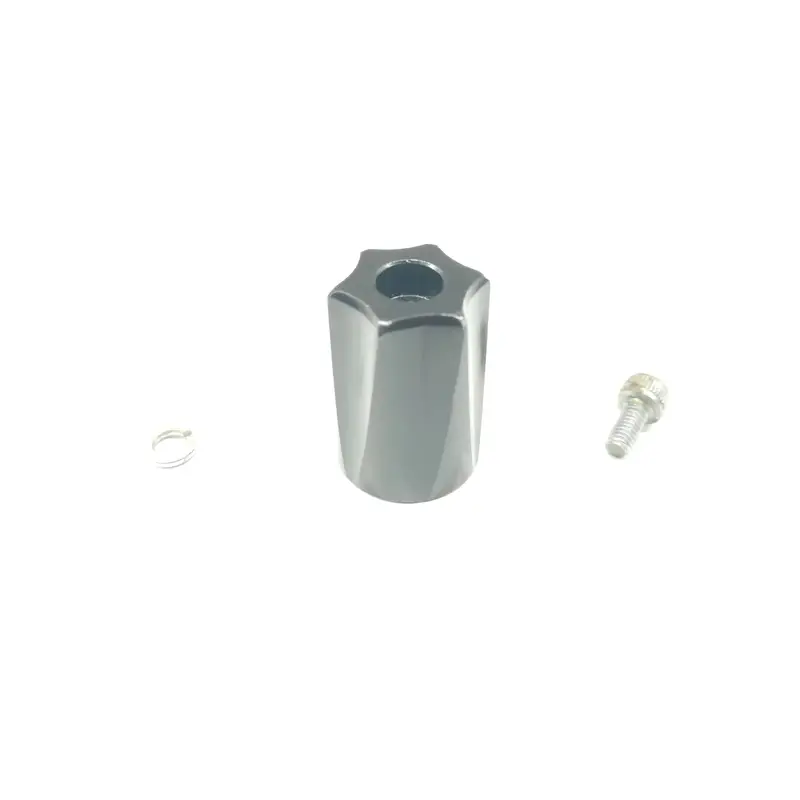

 | 8501357P | TST MICRO REBOUND KNOB | 1991–2016 | Black · Gold | Rebound |
Fits: 44 · 55 · Corsa · XC (2008–2010) XC100 1991 XC150 1991–1993 XC200 1991–1992 XC300 1992 XC400 1993–1994 XC50 1993 XC500 1993–1994 XC50H 1993 XC51 1993–1994 XC250 1994 XC51H 1994 XC600 1994–1995 XC700 1995 XCR 1995–1996 MXC Air 2002 MXC Coil 2002 Mxc-Air- -100 2002 Mxc-Air-100 2002 Mxc-Coil-100 2002 Marathon XC 2005–2006 Marathon XC 100-120 2005 TXC 2005–2010 TXC 1 2006–2008 TXC 2 2006–2008 TXC ECC 2006 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 600 RC -130 2007 XC SL 2007 55 2008–2014 Corsa SL WC 2008 TXC LO 2008 XC 500 2008 XC 600 2008 XC 700 2008 44 2009–2014 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 44 Micro STA 2015–2016 55 CR 2015–2016 Corsa LR 2015–2016 | OverviewCatalogueParts lists | ||

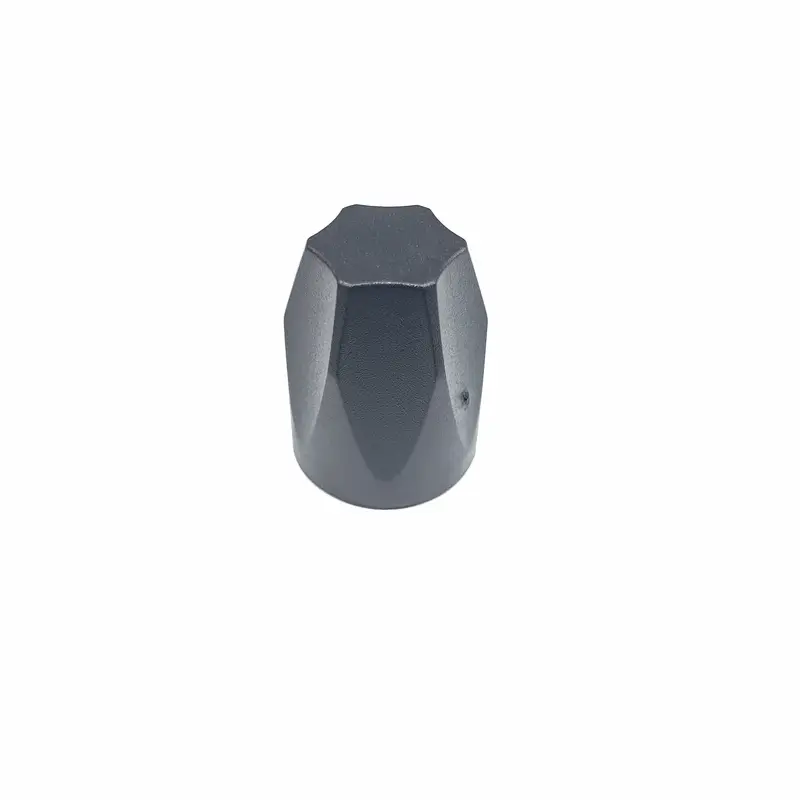

 | 8501363 | TST 2 REBOUND KNOB | 1991–2016 | Black | Rebound |
Fits: 33 · 44 · 55 · Corsa · XC (2008–2010) XC100 1991 XC150 1991–1993 XC200 1991–1992 XC300 1992 XC400 1993–1994 XC50 1993 XC500 1993–1994 XC50H 1993 XC51 1993–1994 XC250 1994 XC51H 1994 XC600 1994–1995 XC700 1995 XCR 1995–1996 MXC Air 2002 MXC Coil 2002 Mxc-Air- -100 2002 Mxc-Air-100 2002 Mxc-Coil-100 2002 Marathon XC 2005–2006 Marathon XC 100-120 2005 TXC 2005–2010 TXC 1 2006–2008 TXC 2 2006–2008 TXC ECC 2006 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 600 RC -130 2007 XC SL 2007 55 2008–2014 Corsa SL WC 2008 TXC LO 2008 XC 500 2008 XC 600 2008 XC 700 2008 33 2009–2010 44 2009–2014 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 44 Micro STA 2015–2016 55 CR 2015–2016 Corsa LR 2015–2016 | OverviewShopCatalogueParts lists | ||

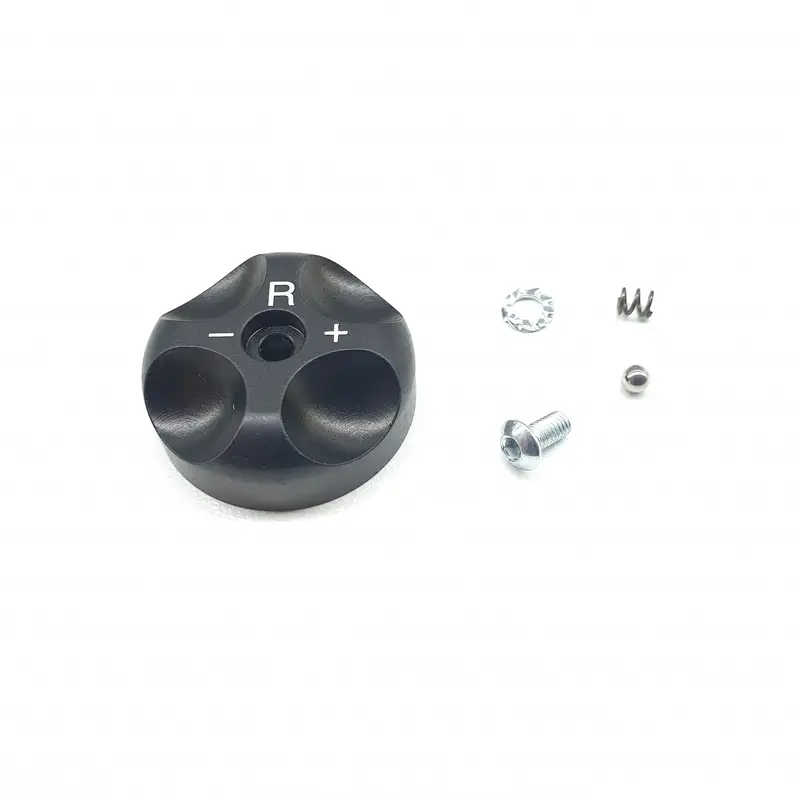

 | 8501396 | 888 RC3 Rebound Knob | 2008–2010 | Black | Rebound |
Fits: 888 (2008–2010) 888 2008–2010 888 160-200mm ATA WC 2008 888 ATA World Cup 2008 888 RC-3 2008 888 RC-3 World Cup 2008 888 RV 35mm 2008–2010 888 ATA WORLD CUP 2009 888 RC3 2009 888 RC3 WORLD CUP 2009 888 RC3 EVO 2010 888 RC3 EVO TITANIUM 2010 | OverviewCatalogueParts lists | ||

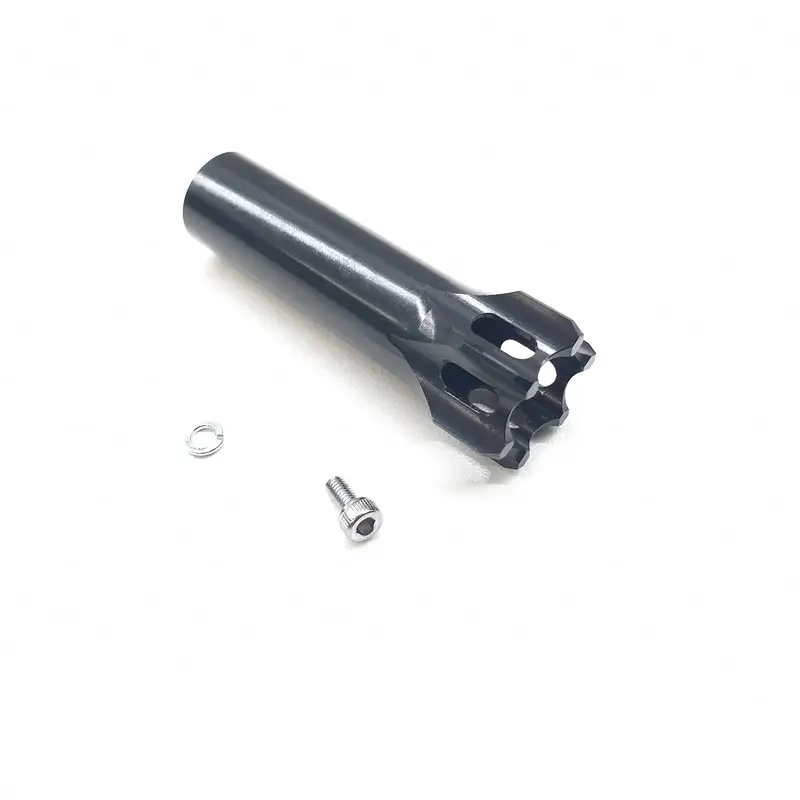

 | 8501466P | Rebound Knop GRP 44 - 29 P MICR TI | 2010 | Black | Rebound |
Fits: 44 (2010) 44 2010 44 44 RC3 TITANIUM 2010 44 29" MICRO TI - 100 2010 44 29" MICRO TI - 120 2010 44 29" MICRO TI - 140 2010 44 29" MICRO TI RC - 100 2010 44 29" MICRO TI RC - 120 2010 44 29" MICRO TI RC - 140 2010 44 MICRO TI - 120 2010 44 MICRO TI - 140 2010 44 MICRO TI RC - 120 2010 44 MICRO TI RC - 140 2010 | OverviewCatalogueParts lists | ||

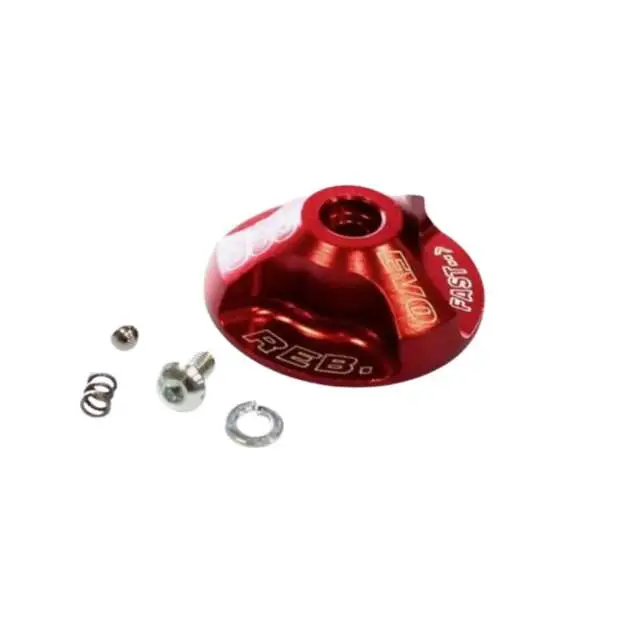

 | 8501505 | 888 EVO Rebound Adjuster Knob II | Red | Rebound | OverviewCatalogue | ||||

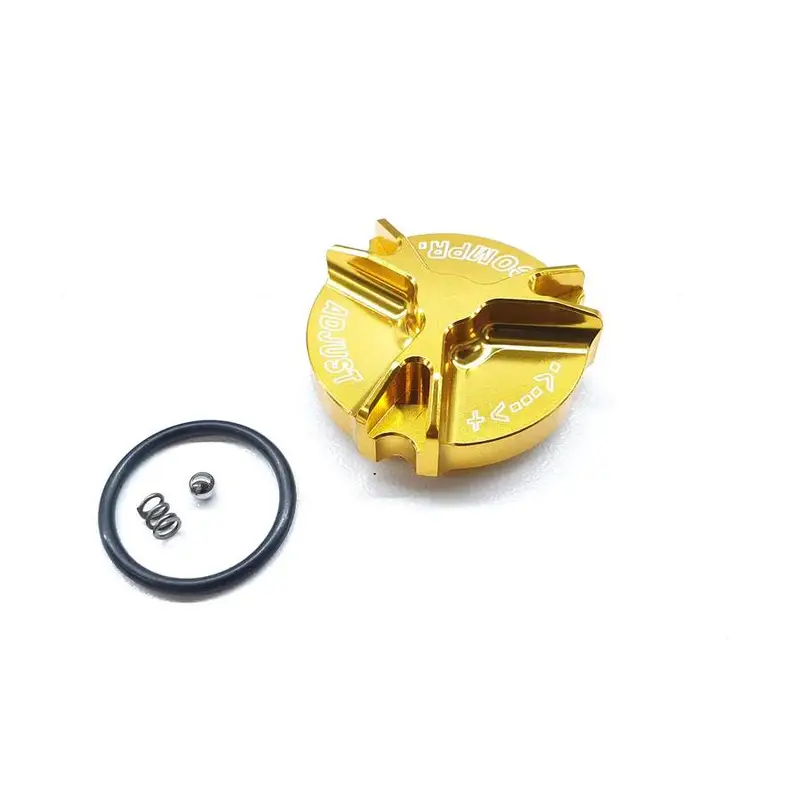

 | 8501620P | KNOB KIT UPPER Compr. CR | 2004–2016 | Gold | Compression |
Fits: 55 · 66 · 888 (2012–2015) 888 2004–2015 888 R 2004–2005 888 RR 2004 888 RT 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005 66 RC2X 2006–2007 66 SL 2006 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 66 RC2+E 2007 66 SL 1 2007 888 RCv 2007 888 SL 2007 55 2008–2014 66 2008–2012 55 CR 2015–2016 | OverviewCatalogueParts lists | ||

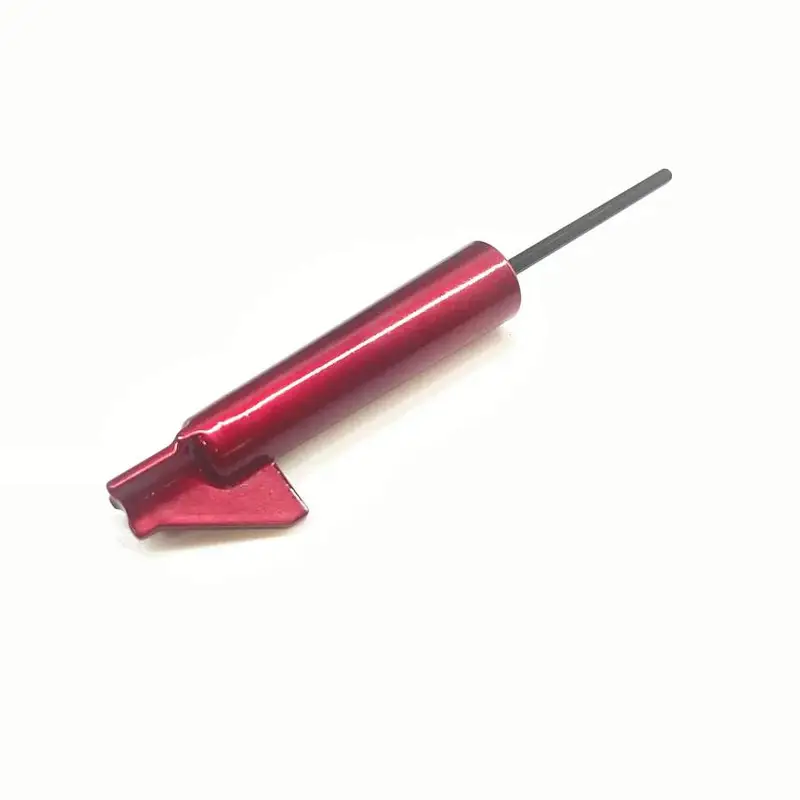

 | 8501751 | Knob Lower Rebound LR 320 320 | 2014–2017 | Red | Rebound |
Fits: 320 320 2014 320 LCR 2015–2017 320 LR 2015–2017 | OverviewShopParts lists | ||

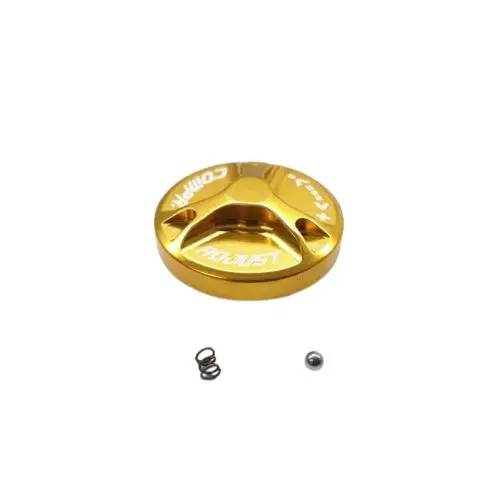

 | 8501758P | Knob UPPER Compr. CR 350 | 2014–2017 | Gold | Compression |
Fits: 350 (2014–2018) 350 CR - 160 2014–2017 350 CR 2015–2017 350 CR - 150 2015 350 NCR 2015–2017 350 NCR - 160 2015–2017 350 NCR TITANIUM - 160 2015–2016 350 R 2015–2017 350 R - 140 2015 350 R - 150 2015 350 R - 160 2015–2017 350 NCR TITANIUM - 170 2017 | OverviewCatalogueParts lists | ||

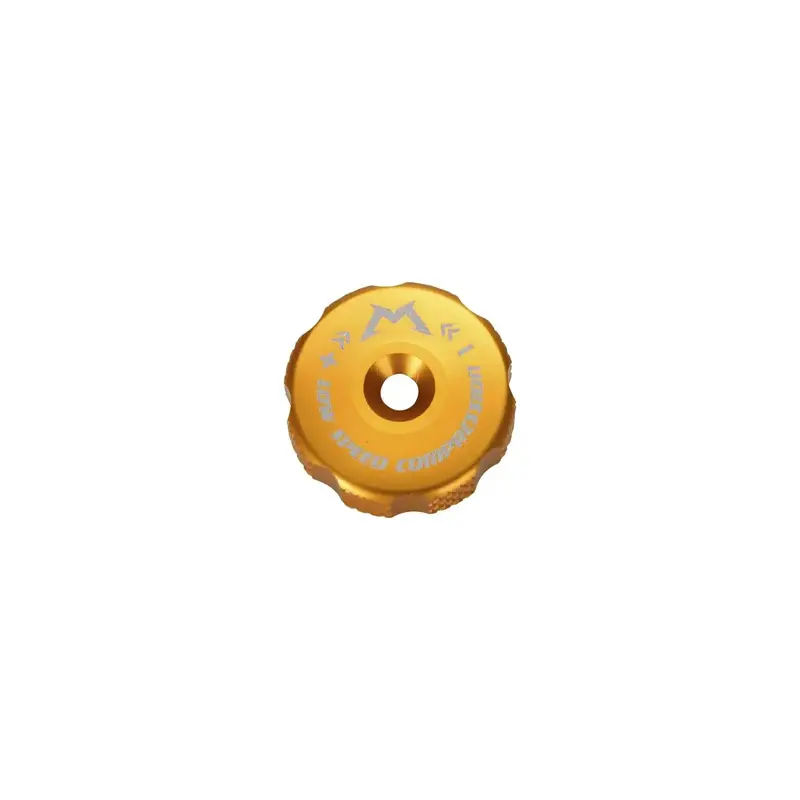

 | — | Knob Bomber CR | Gold | Compression | Overview | ||||

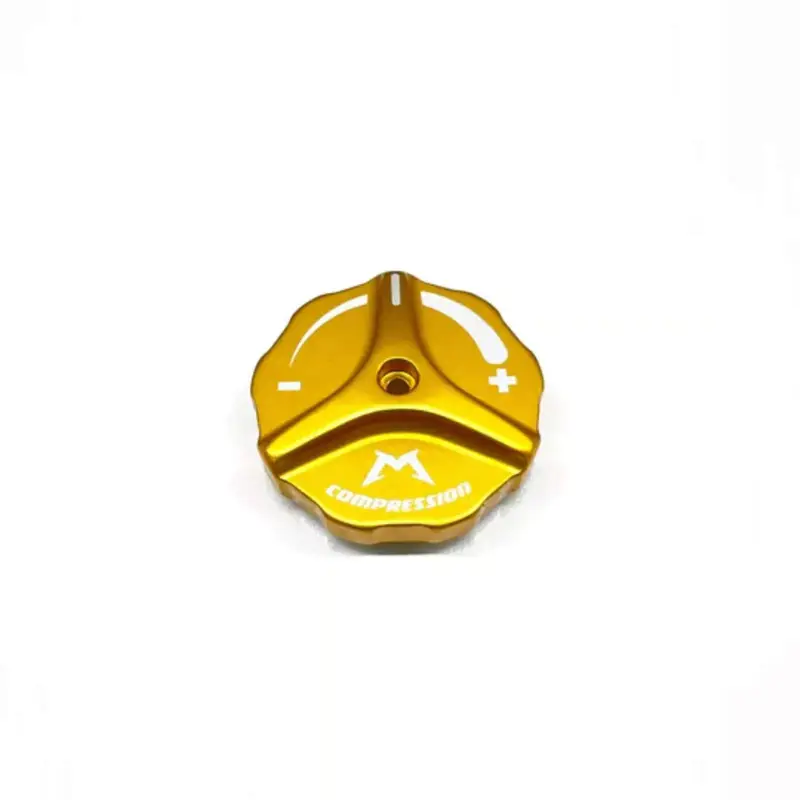

 | — | 58 Grip Compression Knob | Gold | Compression | Overview |
Nothing found in Knobs — try a shorter number or a fork name.
