Bushings.
Marzocchi guide bushings by stanchion size — kits, upper and lower bushings with numbers, dimensions, years and the forks that use them. Merged from our old overview, the shop, the Marzocchi parts lists and the document archive. Hover a picture to enlarge it, click to open it.
🔩 33 Article numbers
🛒 9 in the shop
📄 28 with documents
Also known as: bague de friction · bague de guidage · boccola di guida · casquillo guía · führungsbuchse · guide bushing · lower bushing · pilot bushing · upper bushing · gleitbuchse · du bushing · casquillo · bronzina · bushings · boccola · boccole · buchse · bague · bocc · bush
| Picture | Art. No. | Description | Years | Stanchion | Type | Service kit | Dimensions | Forks | Documents | Shop | Sources |
|---|---|---|---|---|---|---|---|---|---|---|---|

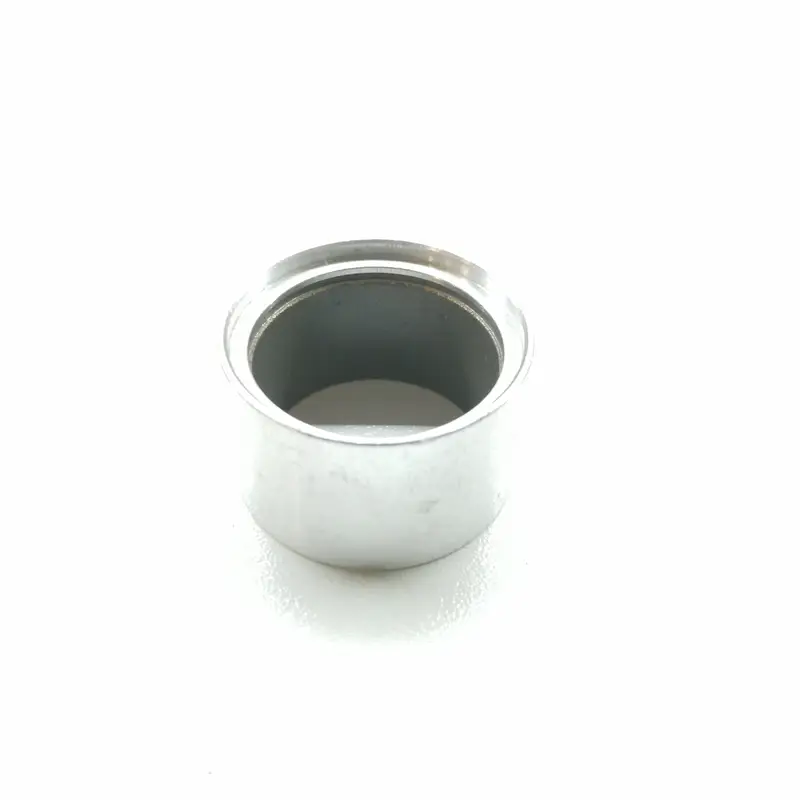

 | 165113 | Complete Guide Bushing XC-500 XC500 | 24 mm | upper (complete) | 27 x 24 x 10 | OverviewCatalogue | |||||

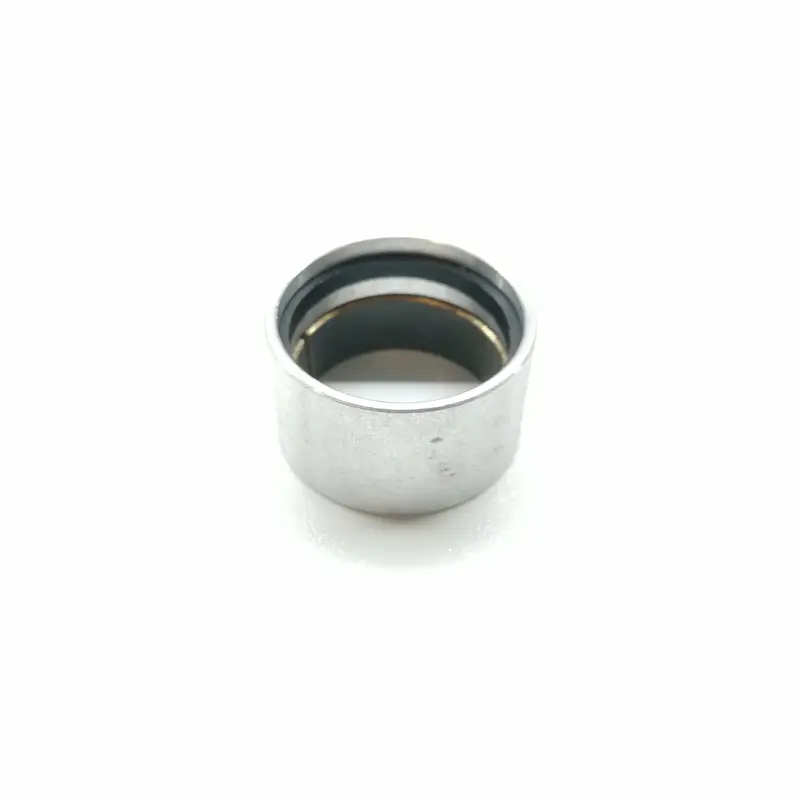

 | 165294 | Complete Guide Bushing XC-600 XC600 | 1994–1999 | 26 mm | upper (complete) | 29 x 26 x 10 | 📋 1994 XC 600 | OverviewCatalogueDocuments | |||

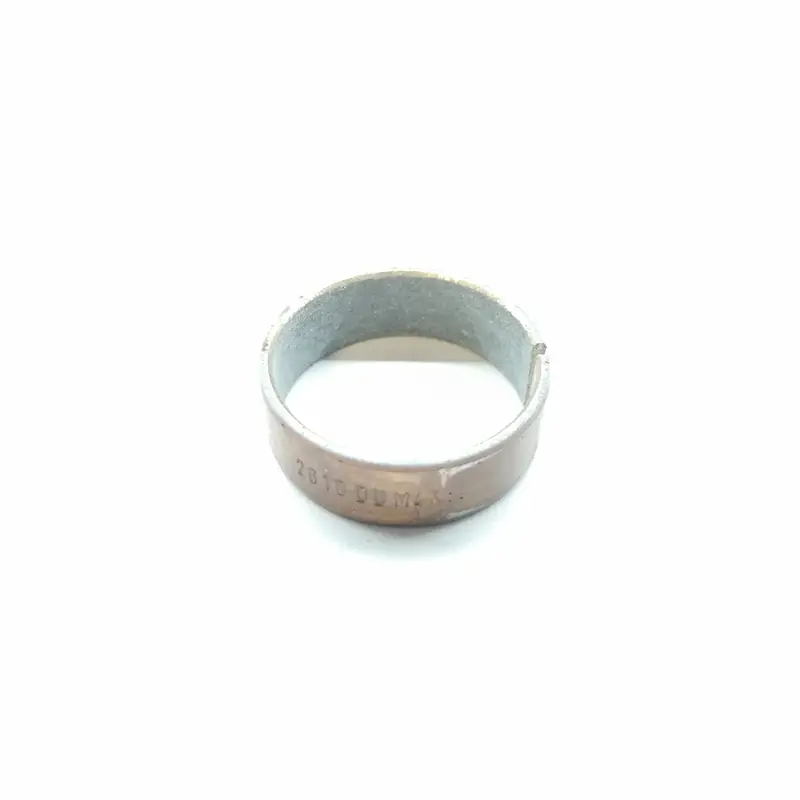

 | 165292 361853 | Inner Guide Bushing XC-600 XC600 | 1994–1999 | 26 mm | inner | 📋 1994 XC 600 | OverviewCatalogueDocuments | ||||
 | 850693 538084 | MTB Bushing Kit Z1, Z2 | 2002–2005 | 30 mm | kit (2 long bushings) | 538084 | 30 x 83 (edge!) | Z1 Bomber 1997–1998 Z2 Bomber 1997–1998 Z1 Bomber BAM 1999 Z2 Bomber BAM 1999 Dirt Jumper 1 2002 Dirt Jumper 1.5 2002 Dirt Jumper 2 2002 Dj1-110 2002 Dj2-130 2002 Junior T 2002 MXC Air 2002 MXC Coil 2002 MXR Air 2002 MXR Coil 2002 Marathon S 2002 Marathon-100 2002 Marathon-80 2002 Mxc-Air- -100 2002 Mxc-Air-100 2002 Mxc-Coil-100 2002 Mxr-Coil-100 2002 Super T 2002 Super-T 2002 X-Fly 2002 X-Fly-100 2002 X-Fly-80 2002 Z1 Drop-Off 2002 Z1 Free Ride 2002 Z1 Wedge 2002–2004 Z1-Dropoff-130 2002 Z1-Freeride-130 2002 Z1-Wedge130 2002 Z2 Atom Race 2002 Z2-Atom Race-80 2002 MX Comp 2003 MX Comp Coil 2003–2004 MX Pro 2003–2004 Marathon SL 2003–2004 Marathon Race 2005 | 📋 1999 Z1- BAM 📋 1999 Z1- DROPOFF 📋 1999 Z1- QR 📋 1999 Z1 -DUAL 📋 1999 Z1 QR 📋 1999 Z2-X FLY 📋 1999 Z2- ATOM 📋 1999 Z2 -ALLOY 📋 1999 Z2 - BAM 📋 1999 Z3- LIGHT FD 📋 1999 Z3- LT 📋 1999 Z3- QR
All 110 documents →
| OverviewShopCatalogueParts listsDocuments | |
| — | 538084 | Pilot Bushing Z1, Z2, Z3, Junior | 1999–2004 | 30 mm | long guide bushing (pilot) | 850693, 804082 | 30 x 82.5 | Junior T 1999–2001 Monster Race T 1999–2000 Z1 BAM 1999 Z1 Drop-Off 1999–2001 Z1 Dual 1999 Z1 QR 1999–2000 Z2 Alloy 1999 Z2 Atom 1999–2000 Z2 BAM 1999 Z2 X-Fly 1999–2000 Z3 LT 1999 Z3 Light 1999 Z3 Light FD 1999 Z3 QR 1999–2001 Z4 FD 1999 Z5 FD 1999 Z1 CR 2000 Z1 MCR 2000–2001 Z1 X-Fly 2000 Z3 2000–2001 Z3 BAM 2000 Z3 FlyLight 2000 Z3.5 2000 Z4 FlyLight 2000 Z5 FlyLight 2000 Z5 QR 2000 Super T 2001 X-Fly 2001 Z2 Atom Race 2001 Z2 Atom Sport 2001 Z3 Air 2001 Z3.5 Air 2001 Z4 2001 Z4 Air 2001 Z5 2001 Z5 Air 2001 | 📋 1999 Z1- BAM 📋 1999 Z1- DROPOFF 📋 1999 Z1- QR 📋 1999 Z1 -DUAL 📋 1999 Z1 QR 📋 1999 Z2-X FLY 📋 1999 Z2- ATOM 📋 1999 Z2 -ALLOY 📋 1999 Z2 - BAM 📋 1999 Z3- LIGHT FD 📋 1999 Z3- LT 📋 1999 Z3- QR
All 91 documents →
| OverviewCatalogueParts listsDocuments | |

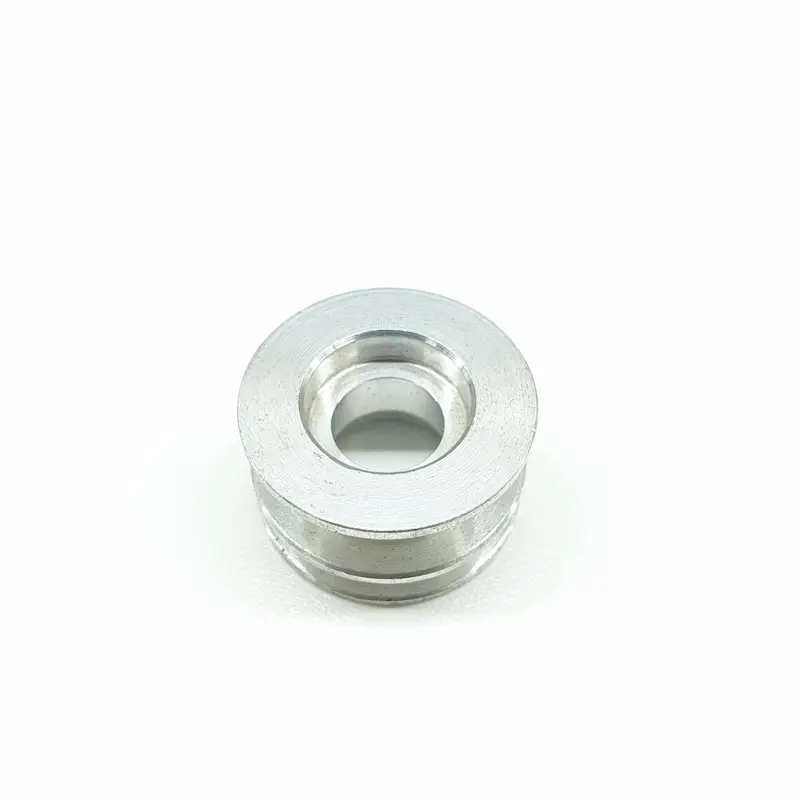

 | 804082 538084 | Pilot Bushing Kit Z1 / Z2 X-Fly | 1999–2000 | 30 mm | pilot bushing kit | 538084 | Z2 X-Fly 1999–2000 Z1 X-Fly 2000 | 📋 1999 Z1- BAM 📋 1999 Z1- DROPOFF 📋 1999 Z1- QR 📋 1999 Z1 -DUAL 📋 1999 Z1 QR 📋 1999 Z2-X FLY 📋 1999 Z2- ATOM 📋 1999 Z2 -ALLOY 📋 1999 Z2 - BAM 📋 1999 Z3- LIGHT FD 📋 1999 Z3- LT 📋 1999 Z3- QR
All 91 documents →
| OverviewCatalogueParts listsDocuments | ||
 | 850779/C 538112 · 538113 · 850779C | Bushings Dia 30 Kit MX, Marathon, Gran Fondo, EXR | 2003–2007 | 30 mm | kit (2 upper + 2 lower) | 538112 + 538113 | Z1 Bomber 1997 Z1 Bomber BAM 1999 Z2 Atom 2000 Z2 X-Fly 2000 Z3 2000 Z3 BAM 2000 Z3 FlyLight 2000 Z3 QR 2000 Z3.5 2000 Z4 FlyLight 2000 MX Comp 2003–2006 MX Comp Air 2003–2005 MX Comp Coil 2003–2005 MX Comp+ 2003–2006 MX Pro 2003–2006 MX Pro Air 2003–2005 MX Pro Coil 2003–2005 MX Pro+ 2003–2006 Marathon S Coil 2003–2004 Marathon SL 2003–2006 Shiver SC 2003–2005 Z1 Wedge 2004 Marathon Race 2005–2006 Marathon XC 2005–2006 Marathon XC 100-120 2005 Gran Fondo 3 2006 MX Comp +Tas 2006 MX Pro Race 2006–2007 MX Pro SL 2006 MX Pro SL 105 Rem.Control 2006 MX Pro+Tas 2006 Marathon Race Rem.Control 2006 Marathon SL Rem.Control 2006 Marathon XC Rem.Control 2006 MX Pro LO 2008 MZ Supercomp 2008 22 2009–2010 33 2010 | 📋 2003 MARATHON SL 105 📋 2003 MARATHON SL 85 📋 2003 MARATHON S COIL 105 📋 2003 MARATHON S COIL 85 📋 2003 MX COMP+ETA 105 📋 2003 MX COMP+ETA 85 📋 2003 MX COMP AIR 105 📋 2003 MX COMP AIR 85 📋 2003 MX COMP COIL 105 📋 2003 MX COMP COIL 85 📋 2003 MX PRO+ETA 105 📋 2003 MX PRO+ETA 85
All 115 documents →
| OverviewShopCatalogueParts listsDocuments | ||

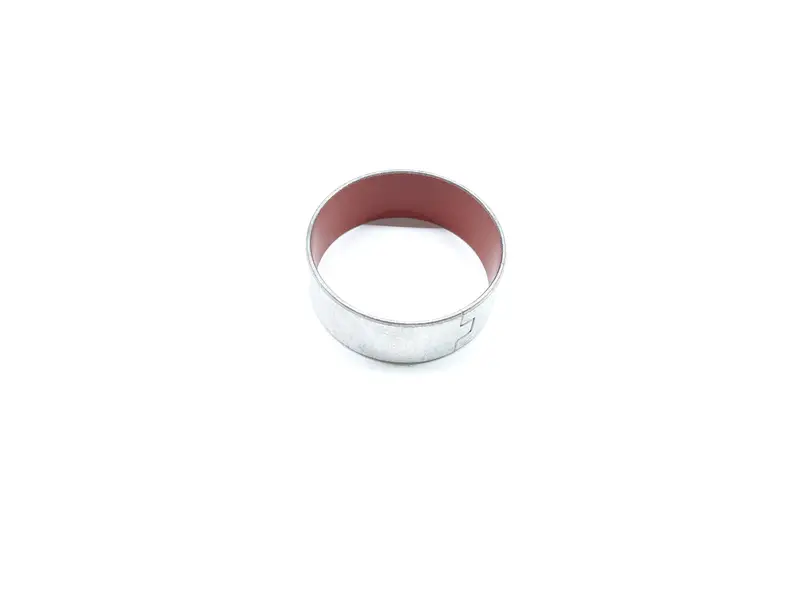

 | 538112 | Lower Bushing Dia 30 MX, Marathon, Gran Fondo, EXR | 2003–2007 | 30 mm | lower | 850779/C | 30 / 32 x 12 | MX Comp 2003–2006 MX Comp Air 2003–2005 MX Comp Coil 2003–2005 MX Comp+ 2003–2006 MX Pro 2003–2006 MX Pro Air 2003–2005 MX Pro Coil 2003–2005 MX Pro+ 2003–2006 Marathon S Coil 2003–2004 Marathon SL 2003–2006 Marathon XC 2005–2006 Marathon XC 100-120 2005 MX Comp +Tas 2006 MX Pro Race 2006–2007 MX Pro SL 2006 MX Pro SL 105 Rem.Control 2006 MX Pro+Tas 2006 Marathon Race 2006 Marathon Race Rem.Control 2006 Marathon SL Rem.Control 2006 Marathon XC Rem.Control 2006 | 📋 2003 MARATHON SL 105 📋 2003 MARATHON SL 85 📋 2003 MARATHON S COIL 105 📋 2003 MARATHON S COIL 85 📋 2003 MX COMP+ETA 105 📋 2003 MX COMP+ETA 85 📋 2003 MX COMP AIR 105 📋 2003 MX COMP AIR 85 📋 2003 MX COMP COIL 105 📋 2003 MX COMP COIL 85 📋 2003 MX PRO+ETA 105 📋 2003 MX PRO+ETA 85
All 115 documents →
| OverviewCatalogueParts listsDocuments | |

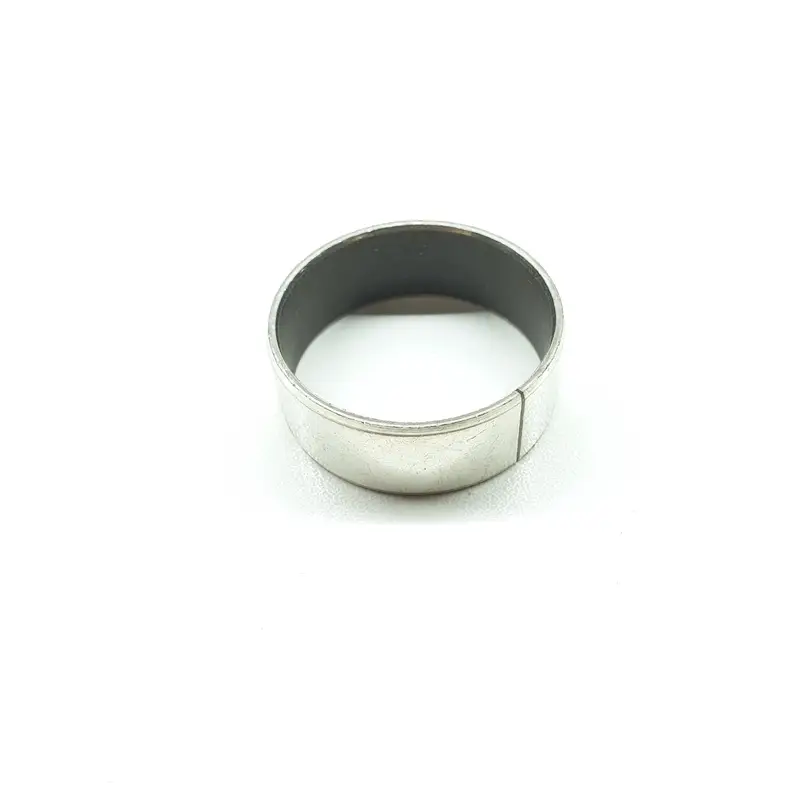

 | 538113 | Upper Bushing Dia 30 MX, Marathon, Gran Fondo, EXR | 2003–2007 | 30 mm | upper | 850779/C | 30 / 33 x 12 | MX Comp 2003–2006 MX Comp Air 2003–2005 MX Comp Coil 2003–2005 MX Comp+ 2003–2006 MX Pro 2003–2006 MX Pro Air 2003–2005 MX Pro Coil 2003–2005 MX Pro+ 2003–2006 Marathon S Coil 2003–2004 Marathon SL 2003–2006 Marathon XC 2005–2006 Marathon XC 100-120 2005 MX Comp +Tas 2006 MX Pro Race 2006–2007 MX Pro SL 2006 MX Pro SL 105 Rem.Control 2006 MX Pro+Tas 2006 Marathon Race 2006 Marathon Race Rem.Control 2006 Marathon SL Rem.Control 2006 Marathon XC Rem.Control 2006 | 📋 2003 MARATHON SL 105 📋 2003 MARATHON SL 85 📋 2003 MARATHON S COIL 105 📋 2003 MARATHON S COIL 85 📋 2003 MX COMP+ETA 105 📋 2003 MX COMP+ETA 85 📋 2003 MX COMP AIR 105 📋 2003 MX COMP AIR 85 📋 2003 MX COMP COIL 105 📋 2003 MX COMP COIL 85 📋 2003 MX PRO+ETA 105 📋 2003 MX PRO+ETA 85
All 115 documents →
| OverviewCatalogueParts listsDocuments | |
 | 850726/C 538110 · 538111 · 850726C | Shiver SC - Repair Kit Shiver SC | 2002–2005 | 30 mm | kit Shiver SC (2 upper + 2 lower) | 538110 + 538111 | 29 x 31 x 15 / 33 x 30 x 15 | Shiver SC 2002–2005 | 📋 2002 SHIVER SC 📋 2003 SHIVER SC 📋 2004 SHIVER SC | OverviewCatalogueParts listsDocuments | |

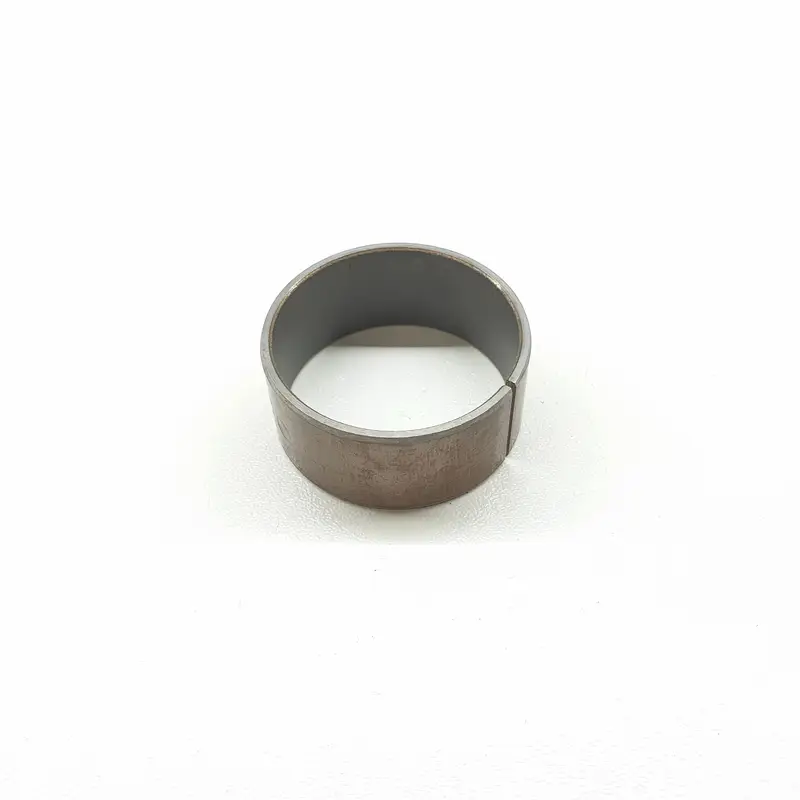

 | 538110 | Upper Bushing D30 H15 Shiver SC Shiver SC | 2002–2005 | 30 mm | upper | 850726/C | 30 / 33.04 x 15 | Shiver SC 2002–2005 | 📋 2002 SHIVER SC 📋 2003 SHIVER SC 📋 2004 SHIVER SC | OverviewCatalogueParts listsDocuments | |
| | 538111 | Lower Bushing D30 Shiver SC Shiver SC | 2002–2005 | 30 mm | lower | 850726/C | 33 x 30 x 15 | Shiver SC 2002–2005 | 📋 2002 SHIVER SC 📋 2003 SHIVER SC 📋 2004 SHIVER SC | OverviewShopCatalogueParts listsDocuments | |
 | 850776/C 538114 · 538115 · 850776 · 850776C | Bushings Dia 32 Kit | 2003–2008 | 32 mm | kit (2 upper + 2 lower) | 538114 + 538115 | Junior T 2000–2006 Z1 CR 2000 Z1 Drop-Off 2000–2003 Z1 MCR 2000 Z1 QR 2000 Z1 X-Fly 2000 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Dirt Jumper 1 2003–2014 Dirt Jumper 2 2003–2009 Dirt Jumper 3 2003–2014 Super T 2003–2004 Z1 Drop Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride 2003–2004 Z1 Free Ride SL 2003–2005 Dj1 110 2004 Dj2 2004 Dj3 2004 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 Z150 FR SL 2004 AM 1 2005–2007 AM 1 - 130 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 AM 3 2005–2007 AM 3- 2005 AM SL 2005–2006 AM SL - 130 2005 All Mountain 1 AM 2005 All Mountain SL 2005 D J 1 2005 D J 2 2005 D J 3- 2005 Drop Off DO 2005 Street DJ 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 Z1 FreeRide 2 2005 AM 1 Remote Control 2006 AM 1+ 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 AM SL Remote Control 2006 All Mountain II ETA 2006 DJ 3 Std 2006 Dirt Jam Pro 2006 Junior Jr. T 2006 Junior T Ext.Reb. 2006 Z1 Light 2006 Z1 Light ETA 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 Sport+ 2006 4X Lopes 2007 4X WC 2007 AM 1 -140 2007 AM 1 -160 2007 AM 2 -160 2007 AM SL 1 2007 AM SL 2 2007 Corsa SL Race -100 2007 Corsa SL Race -80 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 400 - 2007 XC 400 -130 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 500 TSt5 -130 2007 XC 500 TSt5 RC - 2007 XC 500 TSt5 RC -130 2007 XC 600 - 2007 XC 600 -130 2007 XC 600 RC -100 2007 XC 600 RC -130 2007 XC SL 2007 Z1 RC2 + 2007 4X World Cup 2008 Corsa SL WC 2008 Marathon 2008–2012 XC 500 2008 XC 600 2008 XC 700 2008 33 2009 44 2009–2014 4X 2009–2012 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 320 2014 320 LCR 2015–2017 320 LR 2015–2017 44 Micro STA 2015–2016 Corsa LR 2015–2016 Marathon LR 2015 | 📋 2003 DIRTJUMPER 1 110 📋 2003 DIRTJUMPER 1 130 📋 2003 DIRTJUMPER 1 QR 110 📋 2003 DIRTJUMPER 1 QR 130 📋 2003 DIRTJUMPER 2 110 📋 2003 DIRTJUMPER 2 130 📋 2003 DIRTJUMPER 2 QR 110 📋 2003 DIRTJUMPER 2 QR 130 📋 2003 DIRTJUMPER 3 110 📋 2003 DIRTJUMPER 3 130 📋 2003 DIRTJUMPER 3 QR 110 📋 2003 DIRTJUMPER 3 QR 130
All 224 documents →
| OverviewShopCatalogueParts listsDocuments | ||

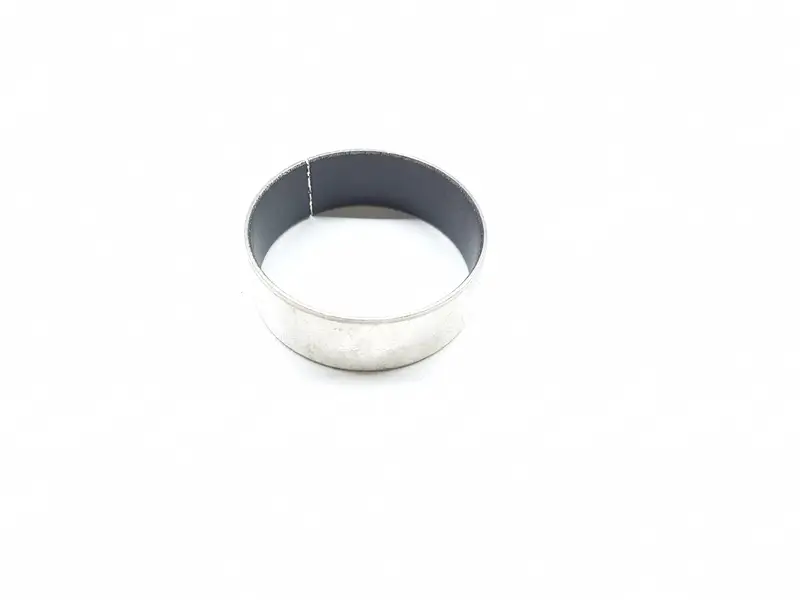

 | 538114 | Lower Bushing DIA.32 | 2003–2009+ | 32 mm | lower | 850776/C | 32 / 34 x 12 | DJ 1 2003–2007 DJ 2 2003–2007 DJ 3 2003–2006 Dirt Jumper 1 2003–2005 Dirt Jumper 2 2003–2005 Dirt Jumper 3 2003–2005 Junior T 2003–2006 Super T 2003–2004 Z1 Drop Off 2003 Z1 Drop-Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride 2003–2004 Z1 Free Ride SL 2003–2005 Dj1 110 2004 Dj2 2004 Dj3 2004 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 AM 1 2005–2007 AM 1 - 130 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 AM 3 2005–2006 AM 3- 2005 AM SL 2005–2006 AM SL - 130 2005 D J 1 2005 D J 2 2005 D J 3- 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 AM 1 Remote Control 2006 AM 1+ 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 AM SL Remote Control 2006 DJ 3 Std 2006 Junior T Ext.Reb. 2006 Z1 Light 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 Sport+ 2006 4X Lopes 2007 4X WC 2007 AM 1 -140 2007 AM 1 -160 2007 AM 2 -160 2007 AM SL 1 2007 AM SL 2 2007 Corsa SL Race -100 2007 Corsa SL Race -80 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 400 - 2007 XC 400 -130 2007 XC 500 - 2007 XC 500 -130 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 500 TSt5 -130 2007 XC 500 TSt5 RC - 2007 XC 500 TSt5 RC -130 2007 XC 600 - 2007 XC 600 -130 2007 XC 600 RC -100 2007 XC 600 RC -130 2007 XC 700 -100 2007 XC 700 -130 2007 XC SL 2007 Z1 RC2 + 2007 | 📋 2003 DIRTJUMPER 1 110 📋 2003 DIRTJUMPER 1 130 📋 2003 DIRTJUMPER 1 QR 110 📋 2003 DIRTJUMPER 1 QR 130 📋 2003 DIRTJUMPER 2 110 📋 2003 DIRTJUMPER 2 130 📋 2003 DIRTJUMPER 2 QR 110 📋 2003 DIRTJUMPER 2 QR 130 📋 2003 DIRTJUMPER 3 110 📋 2003 DIRTJUMPER 3 130 📋 2003 DIRTJUMPER 3 QR 110 📋 2003 DIRTJUMPER 3 QR 130
All 221 documents →
| OverviewCatalogueParts listsDocuments | |

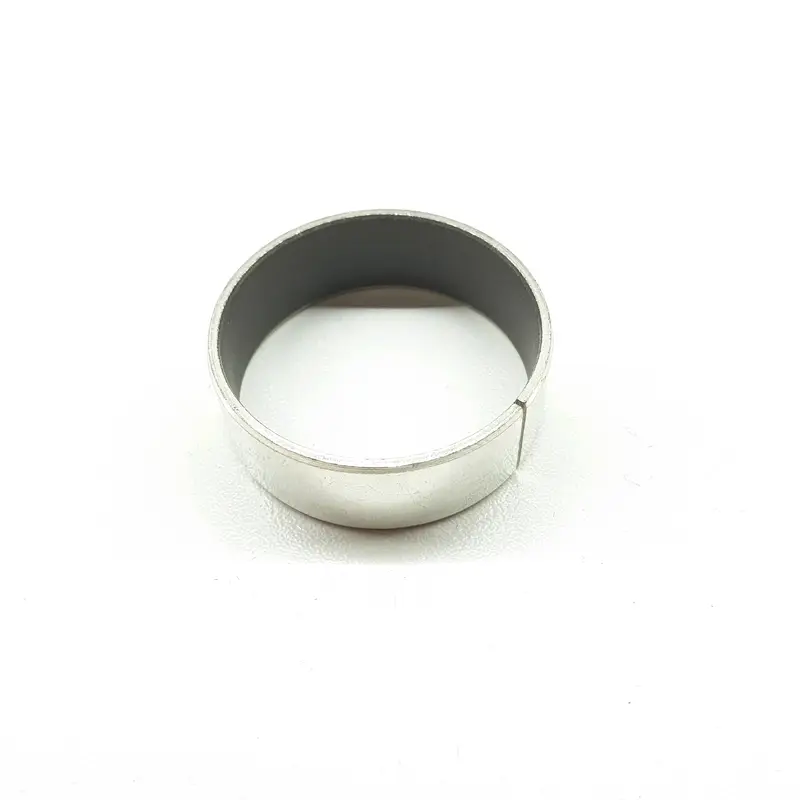

 | 538115 | Upper Bushing DIA.32 | 2003–2009 | 32 mm | upper | 850776/C | 32 / 35 x 12 | DJ 1 2003–2007 DJ 2 2003–2007 DJ 3 2003–2006 Dirt Jumper 1 2003–2005 Dirt Jumper 2 2003–2005 Dirt Jumper 3 2003–2005 Junior T 2003–2006 Super T 2003–2004 Z1 Drop Off 2003 Z1 Drop-Off 2003 Z1 FRee Ride 2003 Z1 FRee Ride SL 2003 Z1 Free Ride 2003–2004 Z1 Free Ride SL 2003–2005 Dj1 110 2004 Dj2 2004 Dj3 2004 Street DJ 2004–2005 Street Dj 2004–2005 Z1 50 Drop-Off 2004 Z1 50 Free Ride 2004 Z1 50 Free Ride SL 2004 Z1 DO 1 2004 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z1 FR 2004 Z1 FR SL 2004 Z150 FR 2004 AM 1 2005–2007 AM 1 - 130 2005 AM 2 2005–2007 AM 2 Ssvf+ 2005 AM 3 2005–2006 AM 3- 2005 AM SL 2005–2006 AM SL - 130 2005 D J 1 2005 D J 2 2005 D J 3- 2005 Z1 FR 1 2005 Z1 FR 2 2005 Z1 Free Ride 1 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 AM 1 Remote Control 2006 AM 1+ 2006 AM 2 +Tas 2006 AM 2 130+ 2006 AM 2 150+ 2006 AM SL Remote Control 2006 DJ 3 Std 2006 Junior T Ext.Reb. 2006 Z1 Light 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 Z1 Sport+ 2006 4X Lopes 2007 4X WC 2007 AM 1 -140 2007 AM 1 -160 2007 AM 2 -160 2007 AM SL 1 2007 AM SL 2 2007 Corsa SL Race -100 2007 Corsa SL Race -80 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 400 - 2007 XC 400 -130 2007 XC 500 - 2007 XC 500 -130 2007 XC 500 TST5 -100 2007 XC 500 TSt5 -100 2007 XC 500 TSt5 -130 2007 XC 500 TSt5 RC - 2007 XC 500 TSt5 RC -130 2007 XC 600 - 2007 XC 600 -130 2007 XC 600 RC -100 2007 XC 600 RC -130 2007 XC 700 -100 2007 XC 700 -130 2007 XC SL 2007 Z1 RC2 + 2007 | 📋 2003 DIRTJUMPER 1 110 📋 2003 DIRTJUMPER 1 130 📋 2003 DIRTJUMPER 1 QR 110 📋 2003 DIRTJUMPER 1 QR 130 📋 2003 DIRTJUMPER 2 110 📋 2003 DIRTJUMPER 2 130 📋 2003 DIRTJUMPER 2 QR 110 📋 2003 DIRTJUMPER 2 QR 130 📋 2003 DIRTJUMPER 3 110 📋 2003 DIRTJUMPER 3 130 📋 2003 DIRTJUMPER 3 QR 110 📋 2003 DIRTJUMPER 3 QR 130
All 224 documents →
| OverviewCatalogueParts listsDocuments | |
 | 8501240/C 538159 · 538160 · 8501240 · 8501240C | Knurled Bushings Kit D.32 Corsa, 4X, Marathon, XC | 2008–2017 | 32 mm | kit knurled (higher play) | 538159 + 538160 | Junior T 2000–2006 Z1 CR 2000 Z1 Drop-Off 2000–2003 Z1 MCR 2000 Z1 QR 2000 Z1 X-Fly 2000 DJ 1 2003–2017 DJ 2 2003–2012 DJ 3 2003–2017 Super T 2003–2004 Z1 Free Ride 2003–2004 Z1 Free Ride SL 2003–2004 Dirt Jumper 1 2004–2014 Dirt Jumper 2 2004–2009 Dirt Jumper 3 2004–2014 Z1 Drop-Off 1 2004 Z1 Drop-Off 2 2004 Z150 FR 2004 Z150 FR SL 2004 AM 1 2005 AM SL 2005–2006 Street DJ 2005 Z1 Free Ride 2 2005 Z1 Free Ride 3 2005 AM 1+ 2006 AM 2 +Tas 2006 AM 3 2006–2007 DJ 3 Std 2006 Dirt Jam Pro 2006 Z1 Light+ 2006 Z1 SL 2006 Z1 Sport 2006 4X WC 2007 AM 2 2007 AM SL 1 2007 Corsa SL WC -100 2007 Corsa SL WC -80 2007 XC 500 TST5 -100 2007 XC 600 RC -130 2007 XC SL 2007 Z1 RC2 + 2007 4X World Cup 2008 Corsa SL WC 2008 Marathon 2008–2012 XC 500 2008 XC 600 2008 XC 700 2008 33 2009 44 2009–2014 4X 2009–2012 Corsa 2009–2014 Corsa Cento 2009 Corsa Superleggera 2012–2013 320 2014 320 LCR 2015–2017 320 LR 2015–2017 44 Micro STA 2015–2016 Corsa LR 2015–2016 Marathon LR 2015 | 📋 2008 SpareParts | OverviewShopCatalogueParts listsDocuments | ||

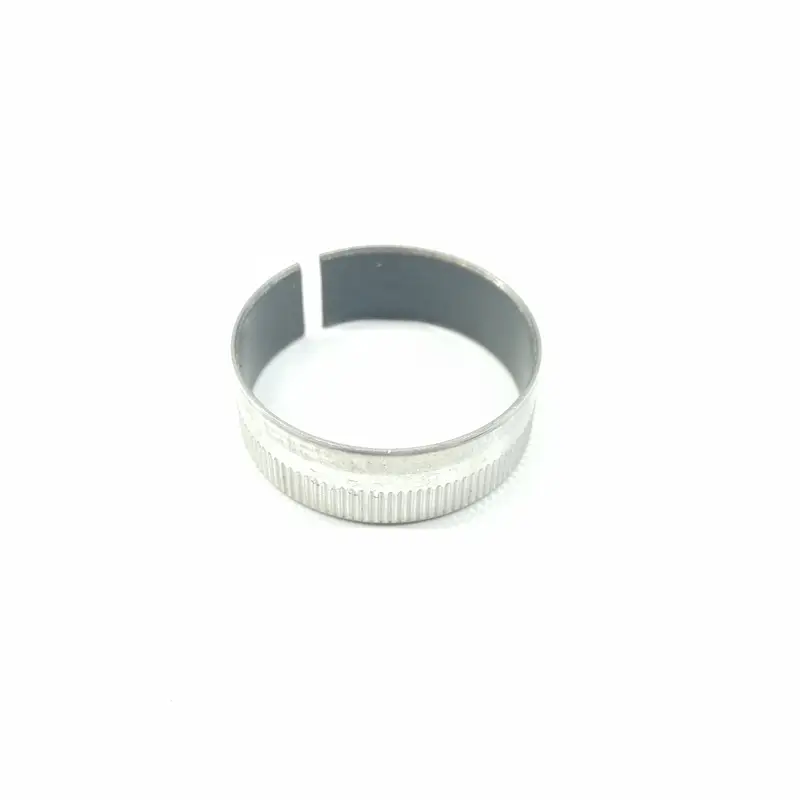

 | 538159 | Knurled Lower Bushing D.32 4X, Marathon, XC | 2008+ | 32 mm | lower knurled (H play) | 8501240/C | 📋 2008 SpareParts | OverviewCatalogueDocuments | |||

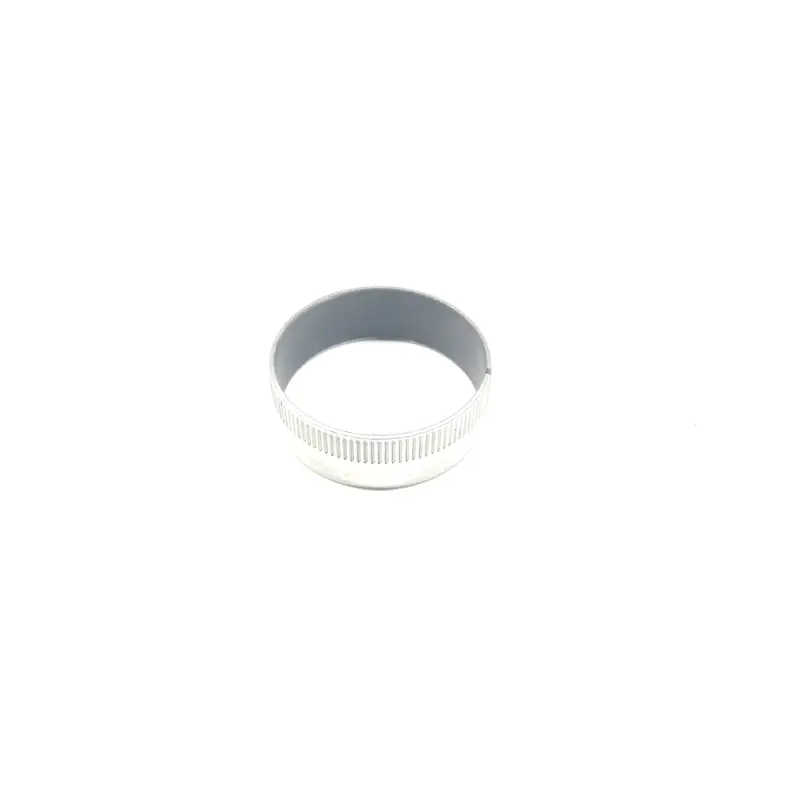

 | 538160 | Knurled Upper Bushing D.32 4X, Marathon, XC | 2008 | 32 mm | upper knurled (H play) | 8501240/C | 📋 2008 SpareParts | OverviewCatalogueDocuments | |||

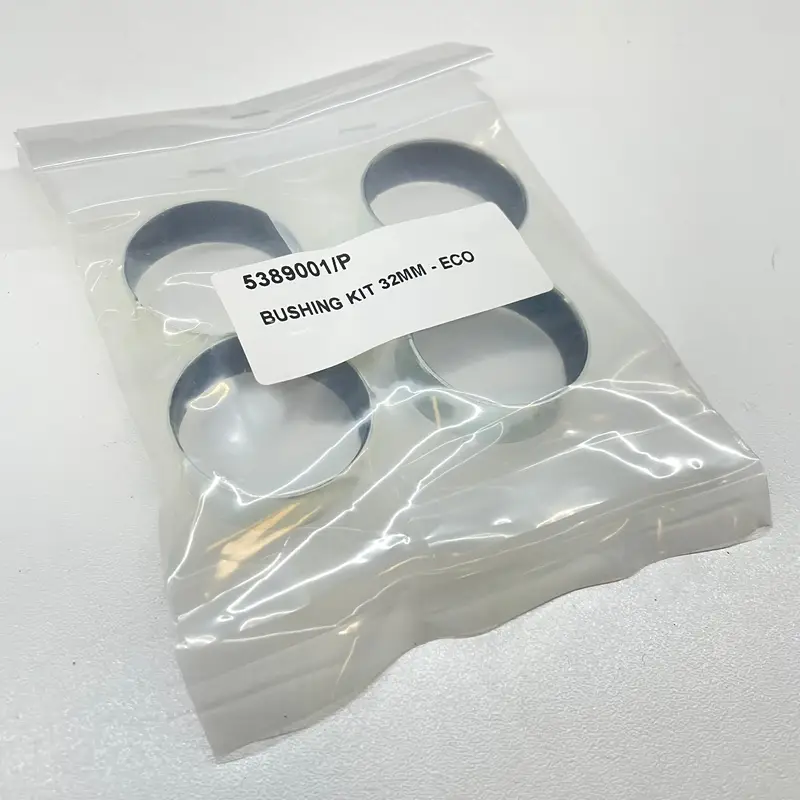

 | 5389001/P | Bushing Kit 32mm ECO | 32 mm | kit ECO | OverviewCatalogue | ||||||
| — | 8507005/P | Marzocchi bushing kit 32 mm | 32 mm | kit | OverviewCatalogue | ||||||
 | 8501027/P 538038>A · 538128>A · 8501027/C · 538038A · 538128A · 8501027C | Bushings Kit DIA.35 - 66 06 66, 66 SL, 55, 888 | 2006–2008 | 35 mm | kit (2 upper + 2 lower) | 538038>A + 538128>A | upper 35 x 1.0 / lower 35 x 1.5 | 66 ... 35mm 2006 66 Light 2006 66 Light+ 2006 66 RC2X 2006–2007 66 SL 2006–2007 66 VF 2006 66 VF2 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 888 ... 35mm 2006 66 RC2+E 2007 66 RCv 2007 66 Rv 2007 66 Rv+ 2007 66 SL 1 2007 66 SL 2 2007 888 RC2 2007 888 RC2X 2007 888 RCV 35mm 2007 888 RCv 2007 888 RCx 2007 888 Rv 2007 888 SL 2007 | 📋 2001 SHIVER 📋 2002 SHIVER 📋 2003 SHIVER DC 📋 2004 888 RR 📋 2004 888 RT 170 📋 2004 888 RT 200 📋 2004 888 R 170 📋 2004 888 R 200 📋 2004 SHIVER DC 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170
All 81 documents →
| OverviewShopCatalogueParts listsDocuments | |
| | 538038>A 538038A | Upper Bushing DIA.35 Shiver DC, 888 RC2X WC 2007 | 2001–2008 | 35 mm | upper (DAIDO, pilot boss) | 8501027/P, 850717 | 35 x 38 x 15 | Shiver DC 2001–2005 Shiver WC DH 2001 Shiver 2002 888 2004 888 R 2004–2005 888 RR 2004 888 RT 2004 66 R 2005 66 RC 2005 66 VF 2005–2006 888 RC 2005 888 VF 2005–2006 Shiver DC 190 2005 66 Light 2006 66 Light+ 2006 66 RC2X 2006–2007 66 SL 2006 66 VF2 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 66 VF2 Lt 2006 888 RC2 2006–2007 888 RC2X 2006–2007 888 VF2 2006 888 Vf2 2006 66 RC2+E 2007 66 RCv 2007 66 Rv 2007 66 Rv+ 2007 66 SL 1 2007 66 SL 2 2007 888 RCv 2007 888 RCx 2007 888 Rv 2007 888 SL 2007 | 📋 2001 SHIVER 📋 2002 SHIVER 📋 2003 SHIVER DC 📋 2004 888 RR 📋 2004 888 RT 170 📋 2004 888 RT 200 📋 2004 888 R 170 📋 2004 888 R 200 📋 2004 SHIVER DC 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170
All 81 documents →
| OverviewCatalogueParts listsDocuments | |

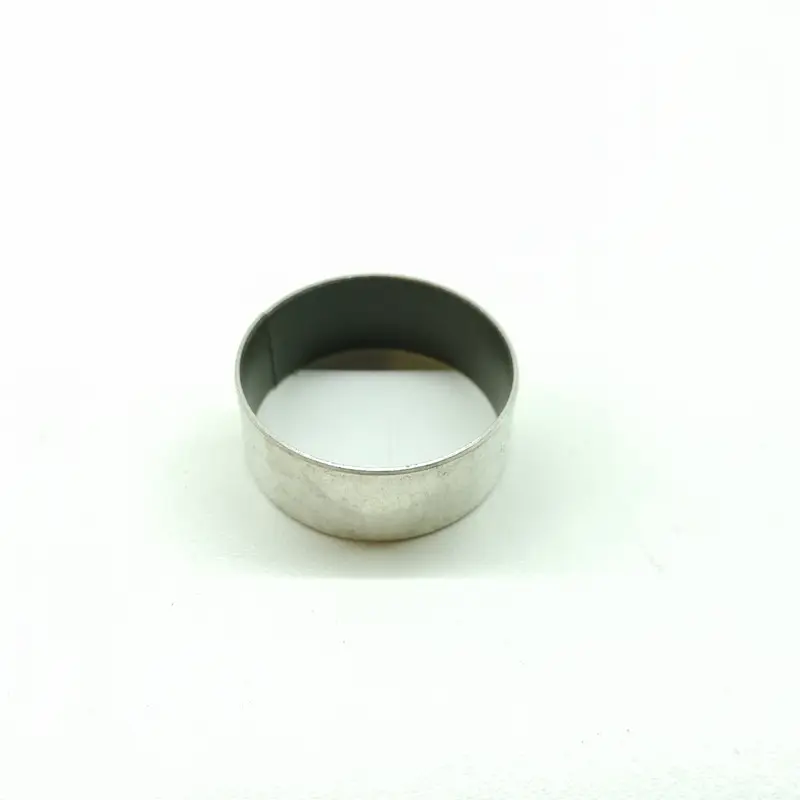

 | 538128>A 538128A | Lower Bushing DIA.35 H.15 55, 66, 888 | 2006–2008 | 35 mm | lower | 8501027/P | 35 x 36.5 x 15 | 66 Light 2006 66 Light+ 2006 66 RC2X 2006–2007 66 SL 2006 66 VF 2006 66 VF2 2006 66 VF2 150+ 2006 66 VF2 170+ 2006 66 RC2+E 2007 66 RCv 2007 66 Rv 2007 66 Rv+ 2007 66 SL 1 2007 66 SL 2 2007 888 RC2 2007 888 RC2X 2007 888 RCv 2007 888 RCx 2007 888 Rv 2007 888 SL 2007 | 📋 2006 66 LIGHT+ETA 📋 2006 66 LIGHT 150 📋 2006 66 LIGHT 170 📄 2006 66 Light ETA - Technical Instructions - 35mm - 150 & 170 📄 2006 66 RC2X - Technical Instructions - 35mm - 150 & 170 📋 2006 66 RC2X 150 📋 2006 66 RC2X 170 📋 2006 66 SL 📄 2006 66 SL - Technical Instructions - 35mm - 150-170 📄 2006 66 VF2 - Technical Instructions - 35mm - 150 & 170 📋 2006 66 VF2 150+ETA 📋 2006 66 VF2 150
All 40 documents →
| OverviewCatalogueParts listsDocuments | |

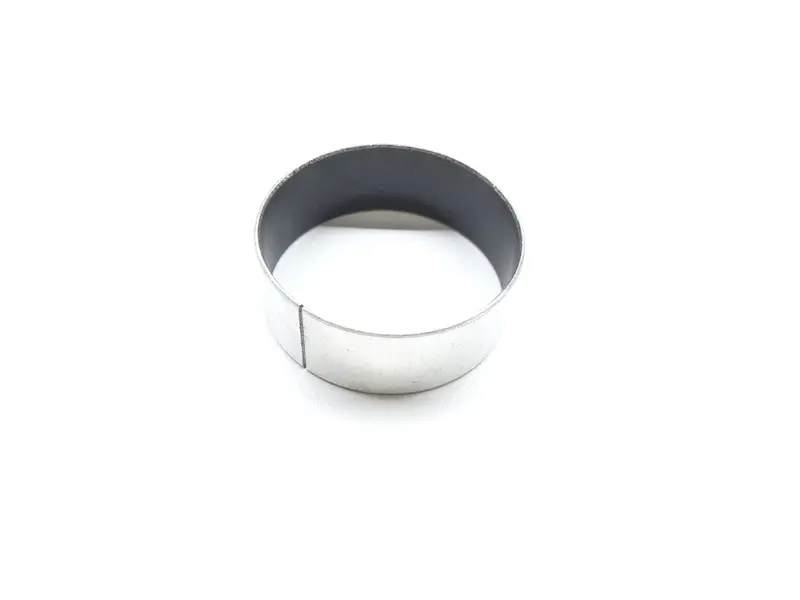

 | 538124 | Lower Bushing 66, 888 | 2004–2006 | 35 mm | lower 35 / 0.75 | 888 2004 888 R 2004–2005 888 RR 2004 888 RT 2004 66 R 2005 66 RC 2005 66 VF 2005 888 RC 2005 888 VF 2005–2006 66 VF2 Lt 2006 888 RC2 2006 888 RC2X 2006 888 VF2 2006 888 Vf2 2006 | 📋 2004 888 RR 📋 2004 888 RT 170 📋 2004 888 RT 200 📋 2004 888 R 170 📋 2004 888 R 200 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170 📄 2005 66 R - Technical Instructions - 35mm - 150 & 170 📋 2005 66 R 150 📋 2005 66 R 170 📋 2005 66 VF 150
All 35 documents →
| OverviewCatalogueParts listsDocuments | |||
| | 850717 538038>A · 538038A | Rebuild Kit Shiver DC Shiver DC | 2002–2005 | 35 mm | rebuild kit Shiver DC | 538038>A | 35 x 38 x 15 | Shiver 2002 Shiver DC 2002–2005 | 📋 2001 SHIVER 📋 2002 SHIVER 📋 2003 SHIVER DC 📋 2004 888 RR 📋 2004 888 RT 170 📋 2004 888 RT 200 📋 2004 888 R 170 📋 2004 888 R 200 📋 2004 SHIVER DC 📄 2005 66 RC - Technical Instructions - 35mm - 150 & 170 📋 2005 66 RC 150 📋 2005 66 RC 170
All 81 documents →
| OverviewShopCatalogueParts listsDocuments | |
| — | 8507004/P | Marzocchi bushing kit 35 mm | 35 mm | kit | OverviewCatalogue | ||||||
 | 8501256/P 538155 · 538156 · 8501256 · 8501256C | D.38 Bushings Kit 66, 888 | 2008–2009+ | 38 mm | kit (2 upper + 2 lower) | 538155 + 538156 | upper 41 x 1.5 x 15 / lower 40 x 1.0 x 15 | 66 2008–2012 888 2008–2014 380 2014 380 C2R2 2015–2017 380 CR 2015–2017 | 📄 2008 888-RCV-Service Technical-Instructions 📋 2008 SpareParts | OverviewShopCatalogueParts listsDocuments | |
| — | 538155 | Upper Bushing D.38 H.15 '08 888, 888 RC3 | 2008 | 38 mm | upper | 8501256/P | 38 x 15, wall 1.5 | 📄 2008 888-RCV-Service Technical-Instructions 📋 2008 SpareParts | OverviewCatalogueDocuments | ||

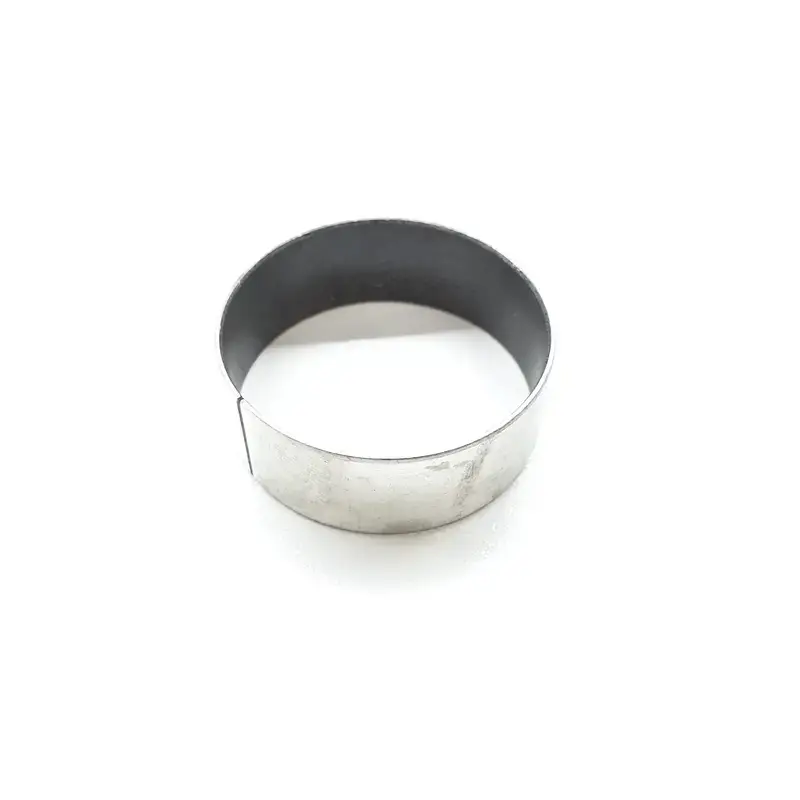

 | 538156 | Lower Bushing D.38 H15 '08 66 | 2008 | 38 mm | lower | 8501256/P | 38 x 15, wall 1.0 | 📄 2008 888-RCV-Service Technical-Instructions 📋 2008 SpareParts | OverviewCatalogueDocuments | ||

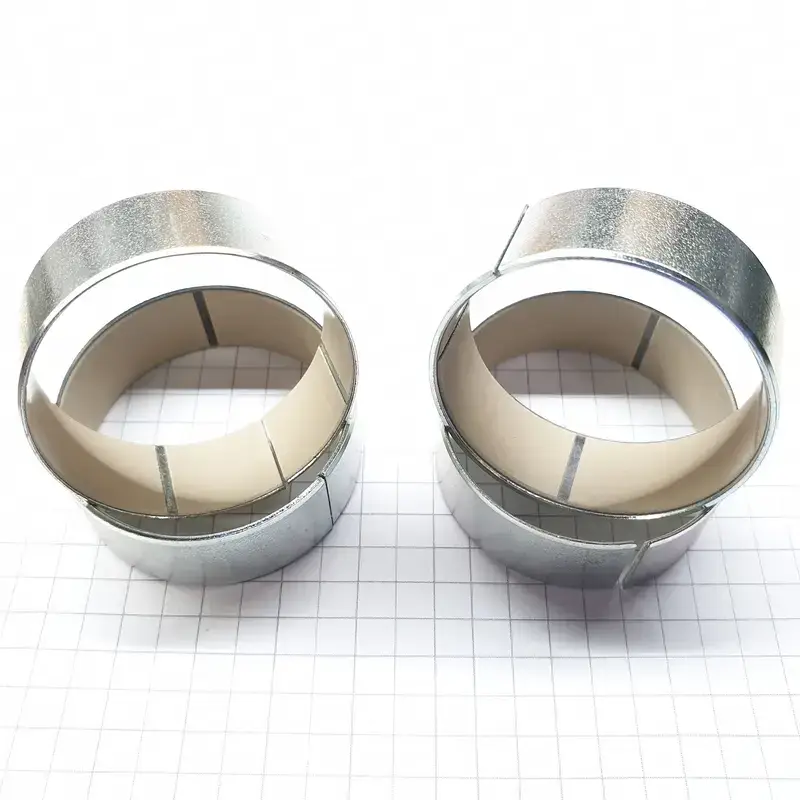

 | 8507003/P | Bushing Kit 38 mm Bomber 380 (for sizing) 380 | 2017–2018+ | 38 mm | kit 380 (for sizing) | OverviewCatalogue | |||||
 | 538035 538035,538028 · 538035>D2 · 538035D2 | Upper Pilot Boss Monster | 1999–2006 | 40 mm | upper pilot boss (PTFE inside) | 850718/P | 40 x 44 x 15 | Monster T 1999–2006 Monster 2002–2006 Monster T2 2003 Monster T2 - 175 2003 Monster T2 - 200 2003 Monster Triple - 200 2003 Monster Triple - 300 2003 Monster - 200 2004 Monster200 2004 Monster300 2004 Super Monster 2004 Monster Triple 200 2005 | 📋 2000 MONSTER T 📋 2001 MONSTER 📋 2002 MONSTER 📋 2003 MONSTER T2 175 📋 2003 MONSTER T2 200 📋 2003 MONSTER T 200 📋 2003 MONSTER T 300 📋 2004 MONSTER200 📋 2004 MONSTER300 📋 2004 MONSTER T 200 📋 2004 SUPER MONSTER 300 📋 2005 MONSTER T
All 16 documents →
| OverviewCatalogueParts listsDocuments | |
| | 538028 538035,538028 · 538028>B · 538028B | Lower Bush Monster | 1999–2006 | 40 mm | lower (PTFE outside) | 850718/P | 38 x 40 x 15 | Monster T 1999–2006 Monster 2002–2006 Monster T2 2003 Monster T2 - 175 2003 Monster T2 - 200 2003 Monster Triple - 200 2003 Monster Triple - 300 2003 Monster - 200 2004 Monster200 2004 Monster300 2004 Super Monster 2004 Monster Triple 200 2005 | 📋 2000 MONSTER T 📋 2001 MONSTER 📋 2002 MONSTER 📋 2003 MONSTER T2 175 📋 2003 MONSTER T2 200 📋 2003 MONSTER T 200 📋 2003 MONSTER T 300 📋 2004 MONSTER200 📋 2004 MONSTER300 📋 2004 MONSTER T 200 📋 2004 SUPER MONSTER 300 📋 2005 MONSTER T
All 16 documents →
| OverviewCatalogueParts listsDocuments | |
| | 850718/P 538028 · 538035 · 538035,538028 · 538028>B · 538028B · 538035>D2 · 538035D2 · 850718 | Rebuild Kit Monster T Monster | 2002–2006 | 40 mm | rebuild kit Monster | 538028 + 538035 | 2 upper 40x44x15 - PTFE inside / 2 lower 38x40x15 - PTFE outside / + Seals / + some O-Rings (Top Cap, Foot Nut) | Monster 2002–2006 Monster T 2002–2006 Monster T2 2003 Monster200 2004 Monster300 2004 Super Monster 2004 | 📋 2000 MONSTER T 📋 2001 MONSTER 📋 2002 MONSTER 📋 2003 MONSTER T2 175 📋 2003 MONSTER T2 200 📋 2003 MONSTER T 200 📋 2003 MONSTER T 300 📋 2004 MONSTER200 📋 2004 MONSTER300 📋 2004 MONSTER T 200 📋 2004 SUPER MONSTER 300 📋 2005 MONSTER T
All 16 documents →
| OverviewShopCatalogueParts listsDocuments |
