Marzocchi Dirt Jumper

The Marzocchi Dirt Jumper

The Dirt Jumper is Marzocchi’s single-crown fork for dirt jumping and slalom. It came in three main levels, Dirt Jumper 1, 2 and 3 (DJ1, DJ2, DJ3), with a DJ 1.5 in 2002 and a DJ 4 in 2007. The model ran beyond 2009; this page covers 2002 to 2009, the years with factory exploded drawings, and parts lists up to 2007.

The 2002 Dirt Jumpers have 30 mm stanchions; from 2003 the Dirt Jumper uses 32 mm stanchions (according to the seal numbers in the parts lists and the 2005 and 2006 technical instructions).

Models by year

Year	Models	Travel	Stanchion	Axle versions	Source
2002	DJ1, DJ1.5, DJ2	80 / 110 / 130 mm	30 mm	standard, QR20	2002 parts lists, exploded drawings
2003	DJ1, DJ2, DJ3	110 / 130 mm	32 mm	standard, QR20	2003 parts lists, exploded drawings
2004	DJ1, DJ2, DJ3	110 / 130 mm (DJ2 also 150 mm QR20)	32 mm	standard, QR20	2004 parts lists, exploded drawings
2005	DJ1, DJ2, DJ3	100 / 120 / 130 mm	32 mm	standard, 20 mm TA	2005 parts lists, technical instructions
2006	DJ1, DJ2, DJ3	80 / 100 mm	32 mm	standard, 20 mm TA	2006 parts lists, technical instructions
2007	DJ1, DJ2, DJ3, DJ3 Steel Tube, DJ4	80 / 100 / 120 mm	32 mm	standard, TA	2007 parts lists (DJ1, DJ2), exploded drawings
2008	DJ1, DJ2, DJ3	80 / 100 / 120 mm	32 mm	STD, TA	exploded drawings, seal chart
2009	DJ1, DJ2, DJ3	80 / 100 / 120 mm	32 mm	STD, TA	exploded drawings, seal chart

QR20, TA and STD are axle versions of the same model, not separate forks. The Dirt Jam and Street Dirt Jumper of 2004–2006 are separate models and are not covered here.

Damping, as Marzocchi describes it

• 2005 DJ2: coil springs with air preload, SSV pumping element with internal rebound adjustment, non-adjustable SSV element in the other leg; standard drop-outs or 20 mm through-axle.
• 2006 DJ1: VF2 pumping element with external rebound adjustment, compression adjuster on the other leg, 20 mm through-axle.
• 2006 DJ2: VF2 pumping element with external rebound adjustment, 20 mm through-axle.
• 2006 DJ3: VF2 pumping element with internal rebound adjustment, standard drop-outs or 20 mm through-axle.
• 2008–2009 DJ1 / DJ2: a sealed “R” cartridge that could take in oil and lock; Marzocchi’s fix converts it to open bath (see the tips below).

Exploded drawing and parts list

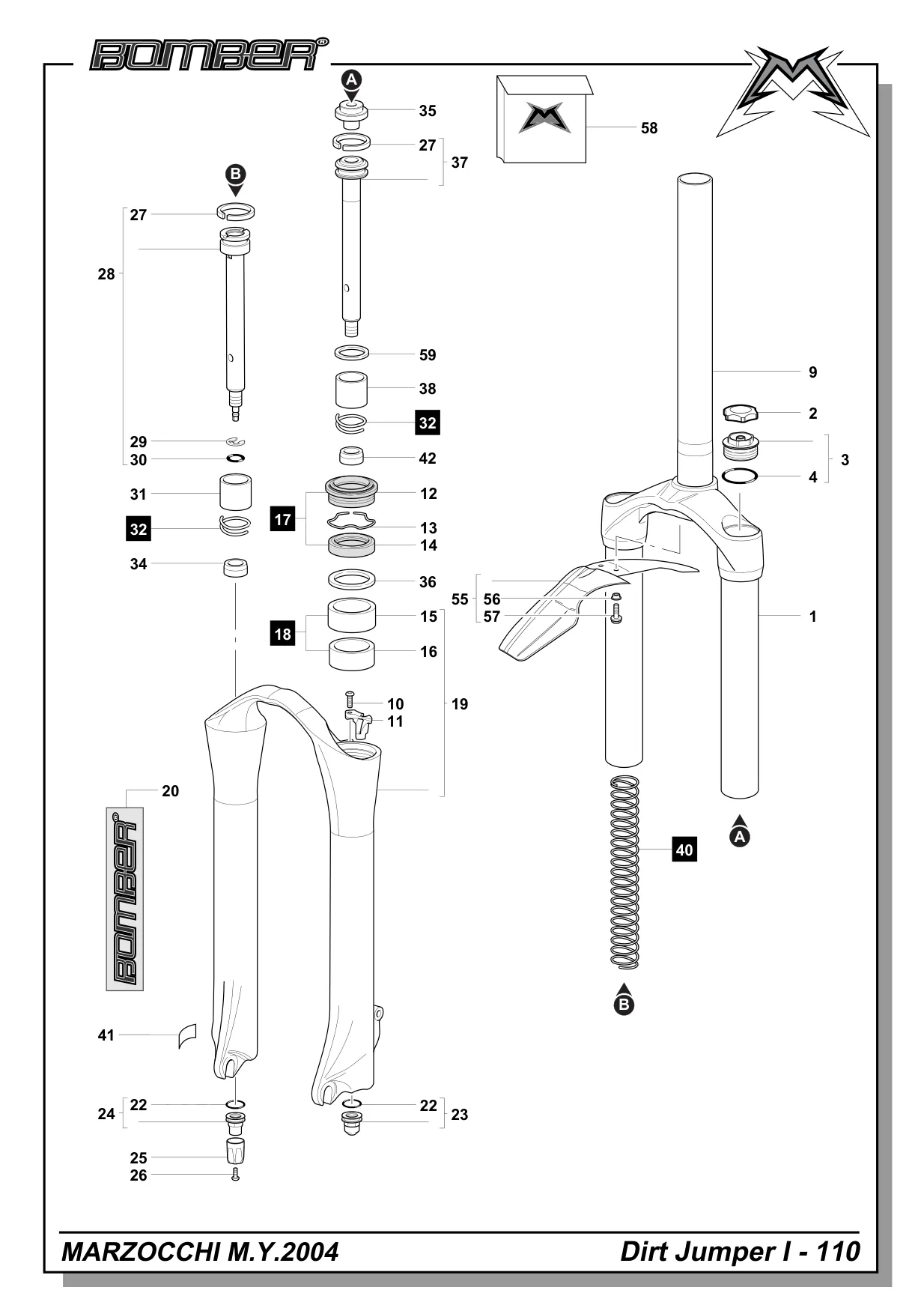

The exploded drawing and the parts list on this page belong to the 2004 Dirt Jumper 1, 110 mm. Every other year, level and travel has its own drawing and parts list in the factory documents below and on Forks documentation. DJ1, DJ2 and DJ3 of the same year differ in damping parts, so use the drawing of your exact model.

Service notes

The 2005 and 2006 Dirt Jumper technical instructions specify SAE 7.5 oil (Marzocchi 550013), give the quantity per leg in the oil level table and recommend changing the oil at least every 100 hours.

Which seal kit fits

• 2002 (30 mm): oil seal 528172, dust seal 533301, kit 850690. This is our Seal Kit 30 mm m-arch.
• 2003–2007 (32 mm): oil seal 528230, dust seal 533297, kit 850768. This is our Seal Kit 32 mm classic.
• 2008–2009: the Seal Kit 32 mm classic, according to the seal chart.

For the 2003 Dirt Jumper 2 the parts list and the seal chart disagree on the 32 mm version (classic or m-arch). Send us a photo of your fork before ordering.
